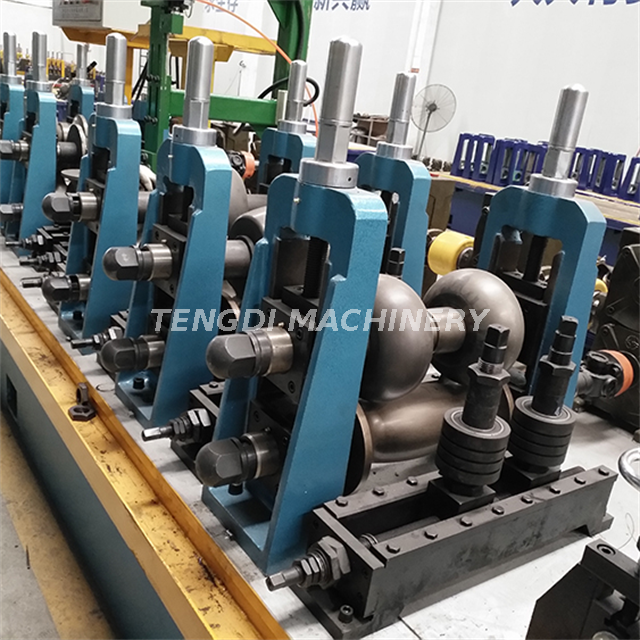

Stainless Steel Pipe Machine / Iron Pipe Machine

Brand:    Tengdi Machinery
Model Number:
S168
Max Pipe Diameter:
89-168mm
Maximum Dhickness:
1.0-4.5mm
Lead Time:
Est. Time(days) 60
Customization:
Comprehensive scheme customization of equipment
Service:
1 year warranty
SKU:
Availability:

Are you looking for high-quality steel pipe making machine that will provide exceptional performance?

Tengdi Machinery is an excellent steel pipe making machine manufacturer with whom to explore collaborating.  Tengdi provide a large selection of various steel pipe making machine choices that are intended to meet your unique requirements. We can be sure that you will get the finest steel pipe making line option for your needs. Tengdi collaborate with skilled specialists who contribute their years of experience and guarantee that all of our works meet the highest standards.


Quick Details



Manufacture Tengdi Machinery Name Stainless Steel Pipe Machine
Type HF Solid state steel pipe welding production line Warranty of core components 1 Year
Key Selling Points High-accuracy Useful life 40 Years
Pipe material Cr12Mov/SKD11 Place of Origin Shijiazhuang, China
Round pipe dia Φ89 - Φ168 mm Line speed

0-10m/min

Round pipe thickness 1.0 - 4.5 mm Main power 132KW + 132KW
Square & rectangular pipe size
Voltage 380/415/420/440V
Square & rectangular  pipe thickness 0.5 - 3.5 mm Weight 8000  kg
Pipe length 3-6m Core Components uncoiler, welder, forming and sizing stands, cold saw cutter, rollway


Other specifications



Model Horizontal Vertical Shaft Tube Thickness Drive Motor Dimension
Shaft O.D. O.D. Range
S51 40mm 30mm 8-51mm 0.3-2.2mm Front:7.5KW 29m*1.5m
Rear:5.5KW
S76 50mm 30mm 25-76mm 0.4-2.5mm Front:11KW 32m*1.5m
Rear:7.5KW
S114 60mm 40mm 50-114mm 0.5-3.0mm Front:15KW 35m*1.8m
Rear:15KW
S168 80mm 50mm 89-168mm 0.8-4.0mm Front:18.5KW 40m*2.5m
Rear:18.5KW
S219 100mm 60mm 114-219mm 1.0-6.0mm Front:22KW 43m*3.0m
Rear:22KW
S325 120mm 80mm 168-325mm 1.5-8.0mm Front:37KW 48m*3.0m
Rear:37KW




Flow chart and product unit and industry applications


不锈钢应用




不锈钢管磨机拆分图

不锈钢管机拆分2


Packaging and delivery


不锈钢发货

Processing capacity


加工及厂房


Exhibition photos


展会


Certificate


证书


QFA


Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.



Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!



Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.



Q: How do you do QA?

A: We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.



Q: Why choose you? What is the difference between you and other Chinese supplier?

A: You can get higher quality product & better professional service from TENGDI with same price.



Q: What I should do if just start a new business?

A: Contact us immediately, we provide free consultant pre-sales service



Q: How about your service?

A:Our services include:

(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!

(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.

(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
