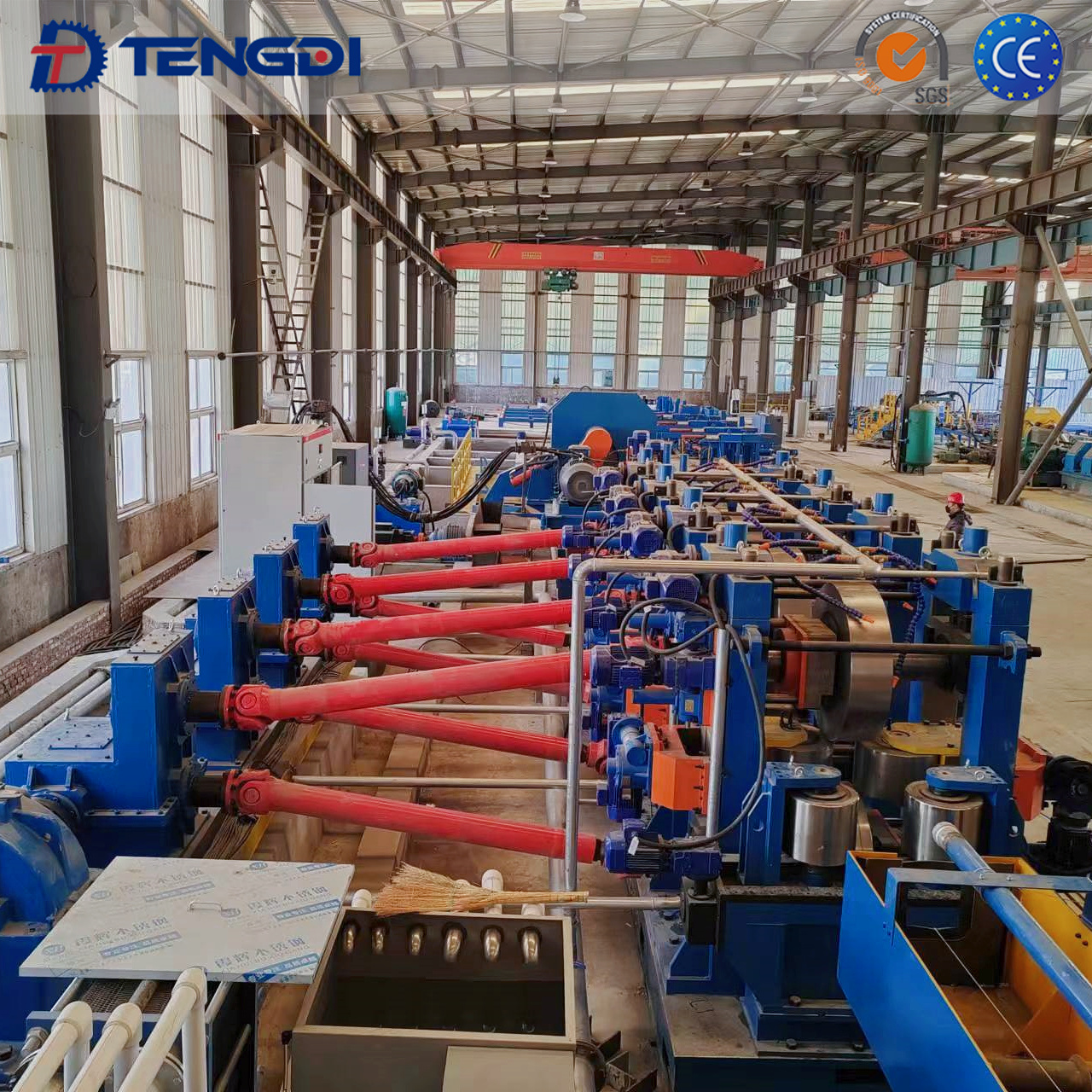

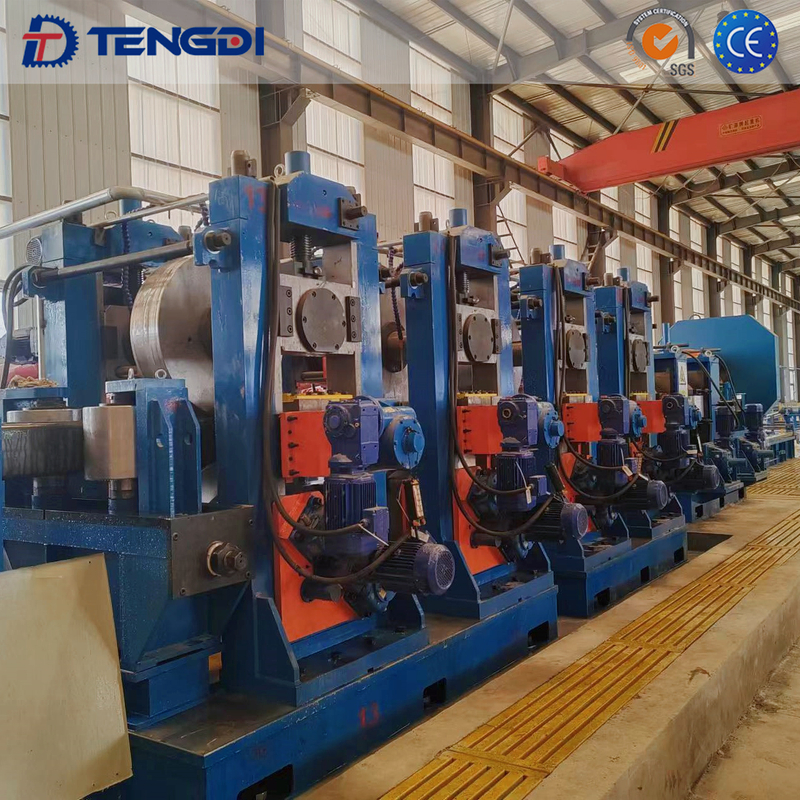

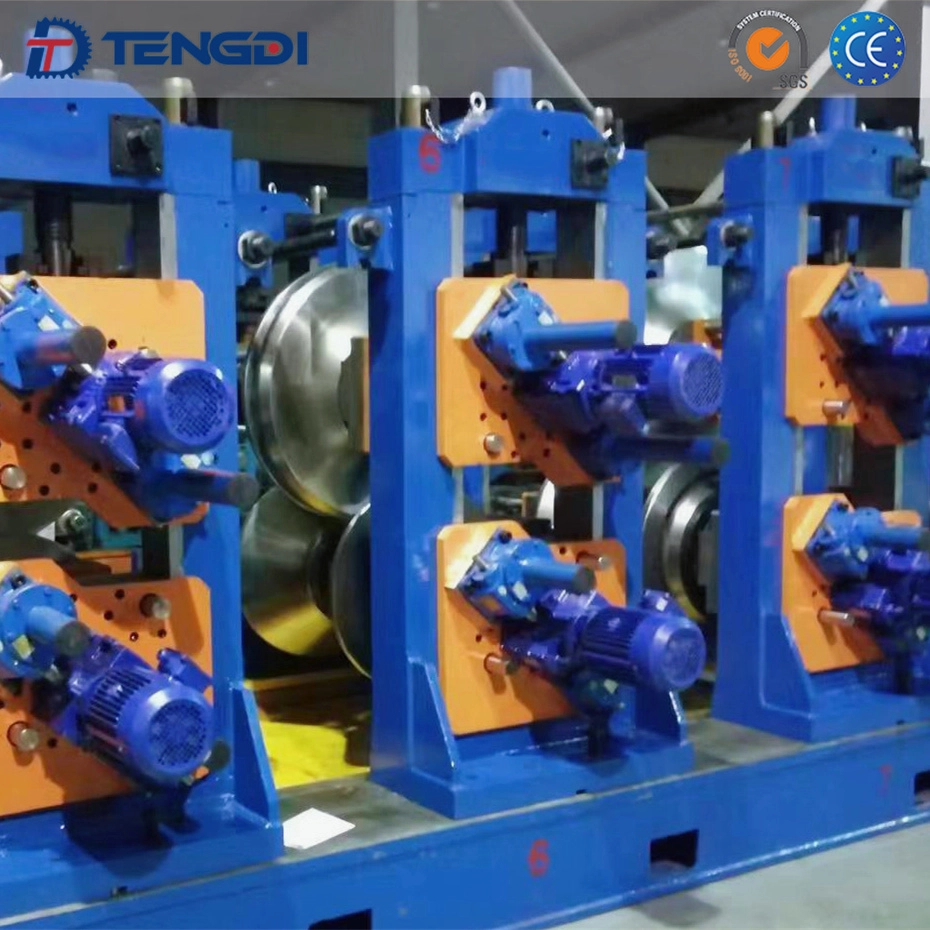

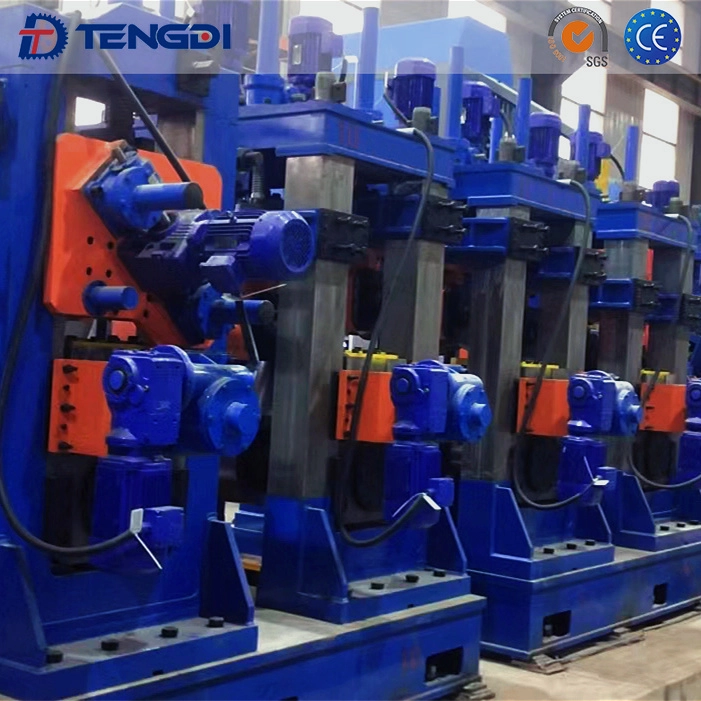

200*200 square tube special /Tube mill

Brand:Tengdi Machinery
Square:
200*200
Maximum Dhickness:
12mm
Customization:
Comprehensive scheme customization of equipment
Service:
Lifetime maintenance
SKU:
Availability:

Are you looking for high-quality square tube special Tube mill that will provide exceptional performance?

Tengdi Machinery is an excellent steel pipe making machine manufacturer with whom to explore collaborating. Tengdi provide a large selection of various steel pipe making machine choices that are intended to meet your unique requirements. We can be sure that you will get the finest steel pipe making line option for your needs. Tengdi collaborate with skilled specialists who contribute their years of experience and guarantee that all of our works meet the highest standards.

Quick Details


Manufacture Tengdi Machinery Name ERW pipe making machine
Type HF Solid state steel pipe welding production line Line speed ≤35m/min
Square pipe size 80*80-200*200mm Square pipe thickness 3.0-12.0mm
Rectangular tube 80*160-150*250mm Rectangular tube thickness 3.0-12.0mm
Pipe material Carbon steel/Galvanized steel Place of Origin Shijiazhuang, China
Voltage 220/380/415/440V Forming method

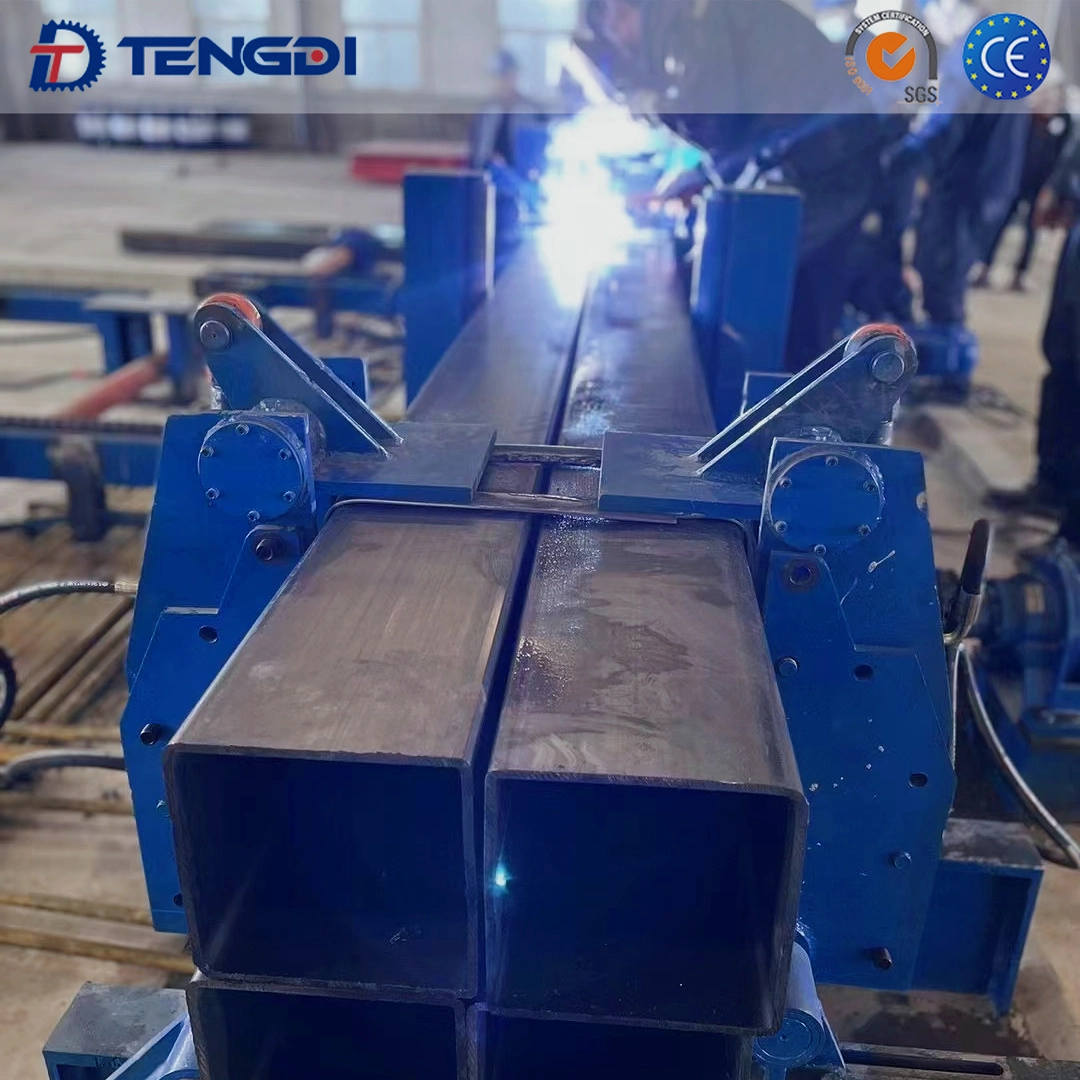

Direct Forming Square Tube

微信图片_202303101139524
微信图片_20230306160606
微信图片_202304061727266
微信图片_2023040617272511



Other specifications and industry applications


Model Procession
(mm)
Round thickness
(mm)

Square/Rectanglar

(mm)

Pipe thickness

(mm)

Welding speed
(m/min)
Φ50 Φ19—Φ50 0.6-3.5 15*15-40*40 0.6-3.0 20-120
Φ60 Φ21—Φ60 0.8-3.5 15*15-50*50 0.8-3.0 20-120
Φ76 Φ21—Φ76 0.8-4.0 15*15-60*60 0.8-3.5 20-110
Φ89 Φ32—Φ89 1.0-4.5 25*25-70*70 1.0-4.0 20-100
Φ114 Φ48—Φ114 1.5-5.0 35*35-90*90 1.5-4.5 20-70
Φ165 Φ89—Φ165 ≤8 70*70-130*130 ≤7 ≤60
Φ219 Φ102—Φ219 ≤10 80*80-170*170 ≤9 ≤50
Φ273 Φ114—Φ273 ≤14 90*90-200*200
≤12 ≤40
Φ325 Φ127—Φ325 ≤16 100*100-250*250 ≤14 ≤35
Φ406 Φ219—Φ406 ≤16 170*170-300*300
≤14 ≤30
Φ660 Φ325—Φ660 ≤22 250*250-500*500 ≤20 ≤30
微信图片_20230518133727

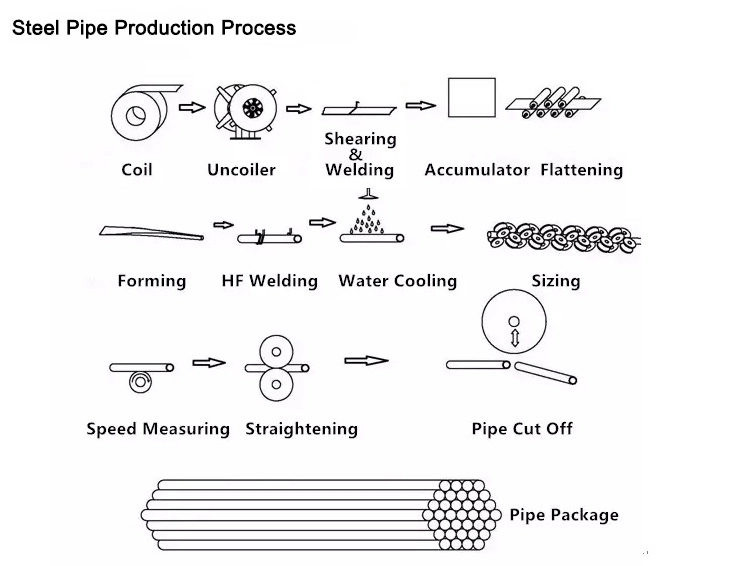

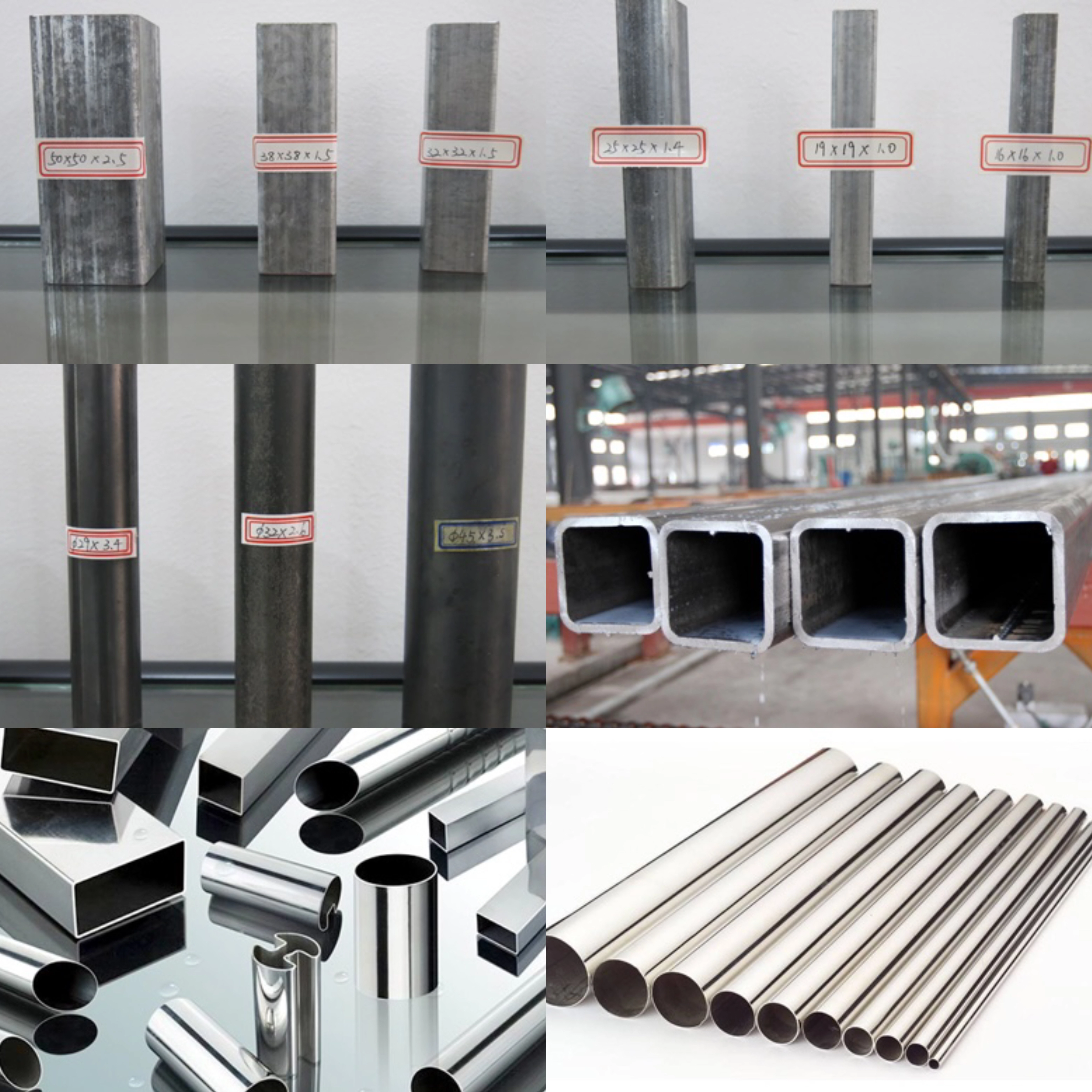

Flow chart and finished product diagram

微信图片_20230609102716

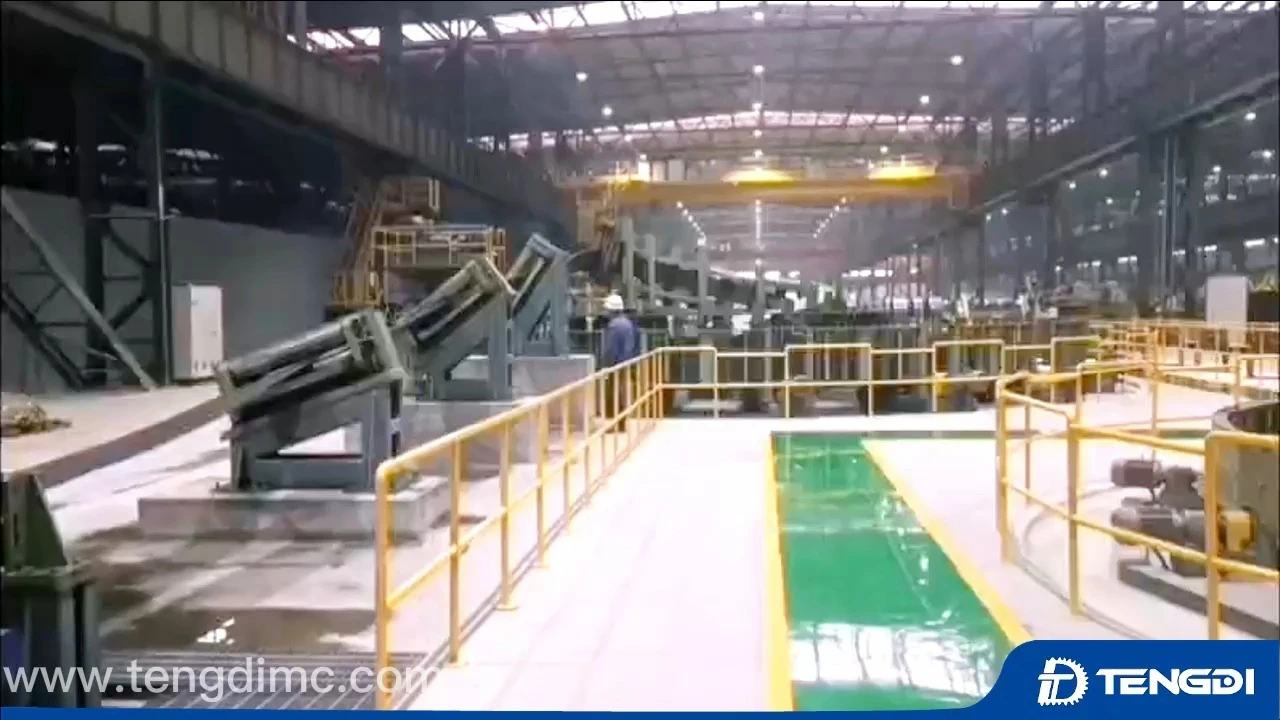

high speed tube millHG406

IMG_5927

Packaging and delivery

Tengdi Packaging and delivery

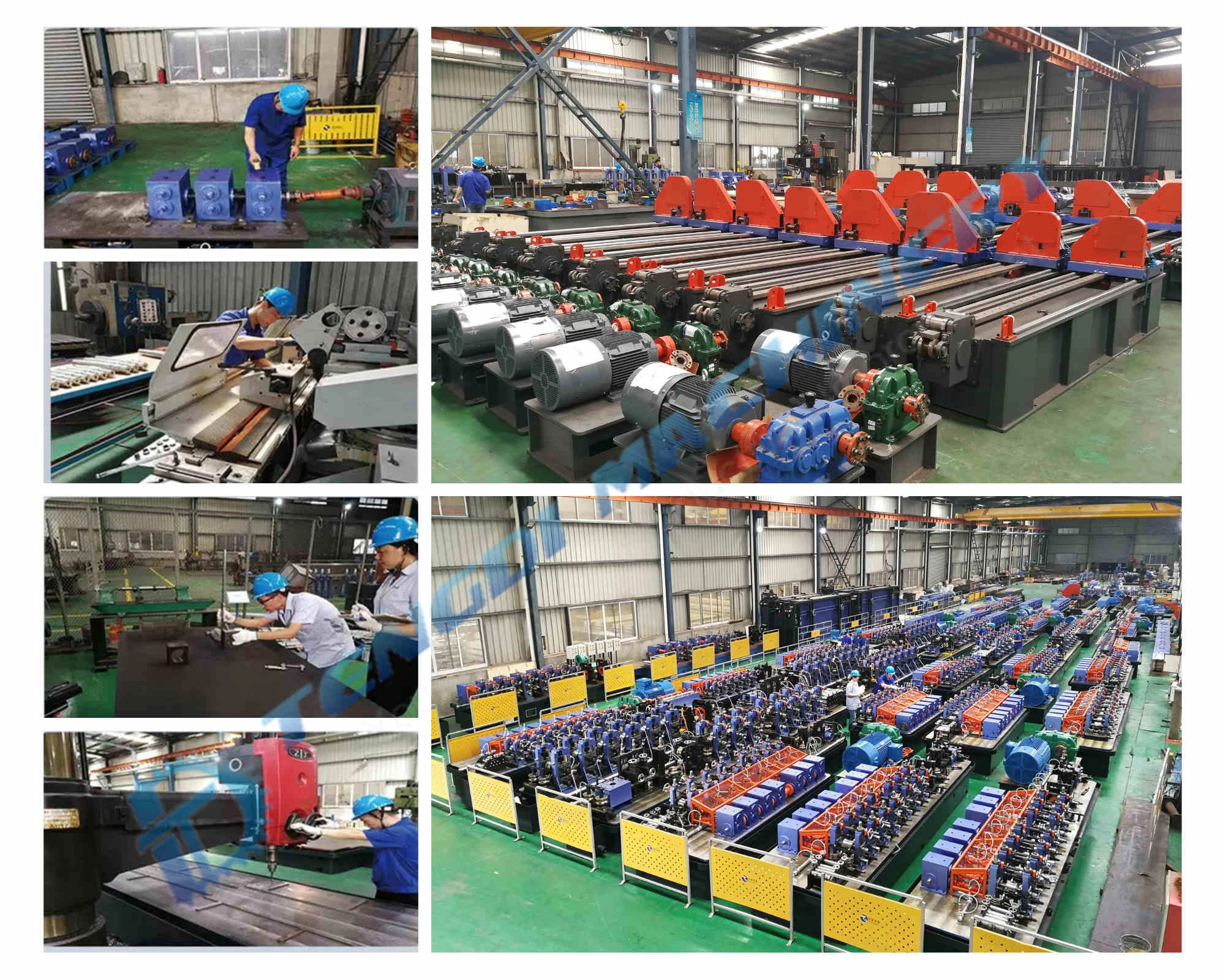

Processing capacity

Tengdi Processing capacity

Exhibition photos

Tengdi Exhibition photos

Certificate

Tengdi Certificate

QFA

Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.


Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!


Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.


Q: How do you do QA?

A: We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.


Q: Why choose you? What is the difference between you and other Chinese supplier?

A: You can get higher quality product & better professional service from TENGDI with same price.


Q: What I should do if just start a new business?

A: Contact us immediately, we provide free consultant pre-sales service


Q: How about your service?

A:Our services include:

(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!

(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.

(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
