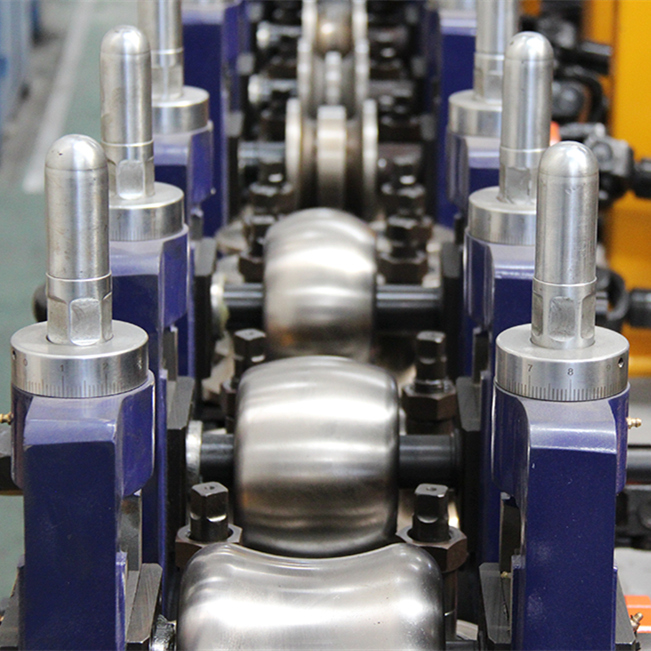

Round / Square / Rectangular Pipe Making Machine Stainless Steel Tube mill

Brand:Tengdi Machinery
Max Pipe Diameter:
25-76mm
Maximum Dhickness:
0.3-2.2mm
Lead Time:
Est. Time(days) 90
Customization:
Comprehensive scheme customization of equipment
Service:
1 Year warranty
SKU:
Availability:

Advantages of TD76 unit:

1. High production efficiency, the production line speed can reach 100m/min;

2. Highly automated;

3. High strength, high-speed and stable operation of the machine, improving product quality;

4. Improve product yield.

5. Siemens, Yaskawa, Allen-Bradley motors are available.

Quick Details
Type: Pipe Mill Pipe Material: Stainless Steel
Production Capacity: 1-10m/min Place of Origin: China
Voltage: 380/415/420/440V Power: 11KW
Dimension(L*W*H): 21.5m*1.2m Weight: 6.5T
Pipe diameter: 8-51mm Thickness: 0.3-2.2mm
Pipe shape: Round Square Rectangle Pipe Useful life: 40years

Other specifications and industry applications


Model
Horizontal
Shaft O.D.
Vertical Shaft
O.D.
Tube
Range
Thickness
Drive Motor
Dimension
S40
40mm
30mm
8-51mm
0.3-2.2mm
11KW
21.5m*1.2m
S50
50mm
30mm
25-76mm
0.4-2.5mm
15KW
24m*1.3m
S60
60mm
40mm
50-114mm
0.5-3.0mm
18.5KW
26m*1.5m
S80
80mm
50mm
89-168mm
0.8-4.0mm
22KW
32m*2.5m
S100
100mm
60mm
114-219mm
1.0-6.0mm
30KW
36m*2.8m
S120
120mm
80mm
168-325mm
1.5-8.0mm
37KW
40m*3.0m


Stronger configuration:
1.Uncoiler : Mechanical tension bridle manual adjustment .
2.Horizontal and vertical holder: Passed heat treatment to make black. The holder will rust protection when used.
3.Bearing:Used Needle bearing and cone bearing.
4. Welding : Argon welding machine (500A) .
5.Grinding head: Automatic debugging.
6.Cutting machine:Metal saw cutting or Band saw cutting machine.
7.Drive motor used Siemens brand, grinding motor used Kaiyuan brand.

erw pipe mill manufacturer

Product details

Erw steel tube mill

erw pipe mill

Application

erw pipe plant

Pipe material

erw steel tube mill machine

Packaging and delivery

Tengdi Packaging and delivery

Exhibition photos

Tengdi Exhibition photos

Certificate

Tengdi Certificate

QFA

Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.

Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!

Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.

Q: How do you do QA?

A:We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.

Q: Why choose you? What is the difference between you and other Chinese supplier?

A: You can get higher quality product & better professional service from TENGDI with same price.

Q: What I should do if just start a new business?

A: Contact us immediately, we provide free consultant pre-sales service
