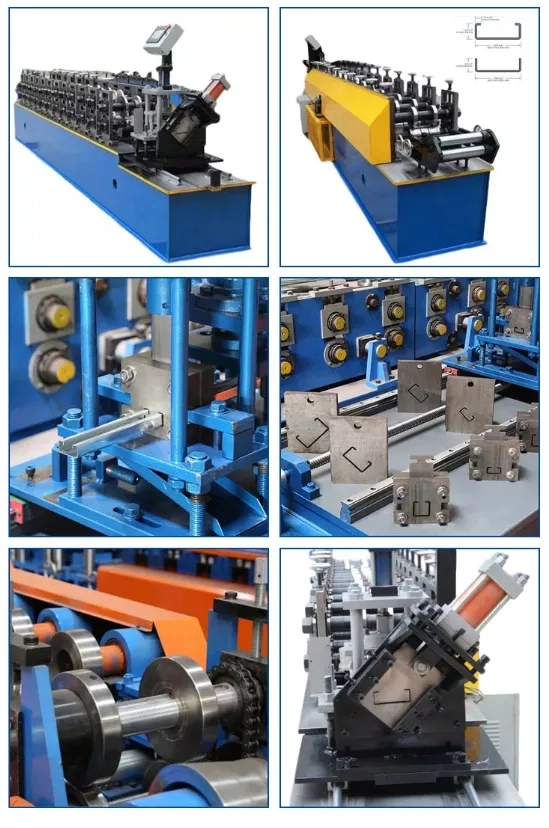

C-shaped steel forming machine

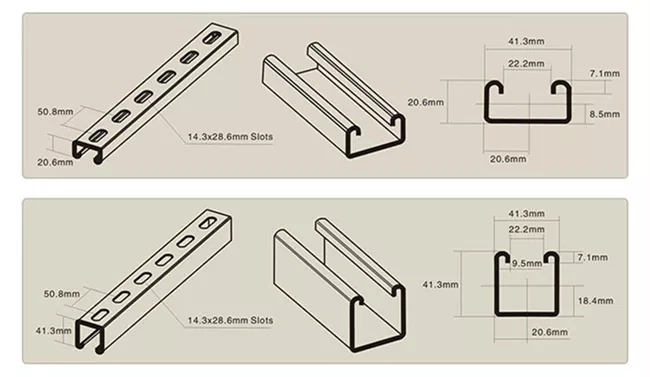

1.production line process:
Disc uncoiler roll forming hydraulic punching to remove waste and cut off a finished profile
2.Rolled sheet: 0.6/1.2mm material; galvanized strip
3.Description of the main composition and structure of the production line:
Forming main machine (one main machine, two sets of profiles can be converted and two sets of cutting can be realized by adjusting the spacer)
(1) Forming line speed: 18m/min
(2) Forming passes: 10 passes
(3) The archway is a three-dimensional cast iron archway
(4) shaft diameter: medium 50mm. Material: 40Cr, quenched and tempered HB240-280
(5) Forming roll: material GCr15, quenching treatment, HRC58~62", hard chrome plated on the surface
(6) The power of the main motor is 5.5kw and the same motor
(7) Transmission mode: 120-type gearbox
(8) The fuselage part is the main body of this rolling mill. It is made of thick square tube 60*100 steel and iron plate welded by numerical control. It is firm and beautiful. The base is equipped with adjusting bolts for adjusting fuselage water flat position,the base is equipped with hoisting holes for easy installation and transportation.
(9) A set of calibration device with a discharge height of 700mm
(10) One Zhusa pump station, one 5.5KW, high-speed oil cylinder valve body.
(11) Surface treatment of equipment, after polishing, one coat of primer and two coats of outer paint

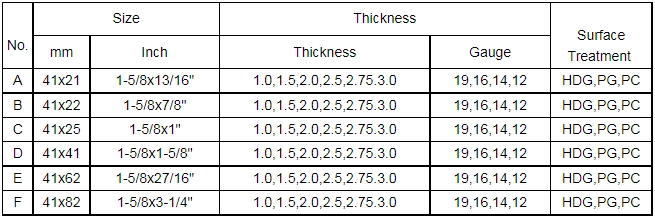

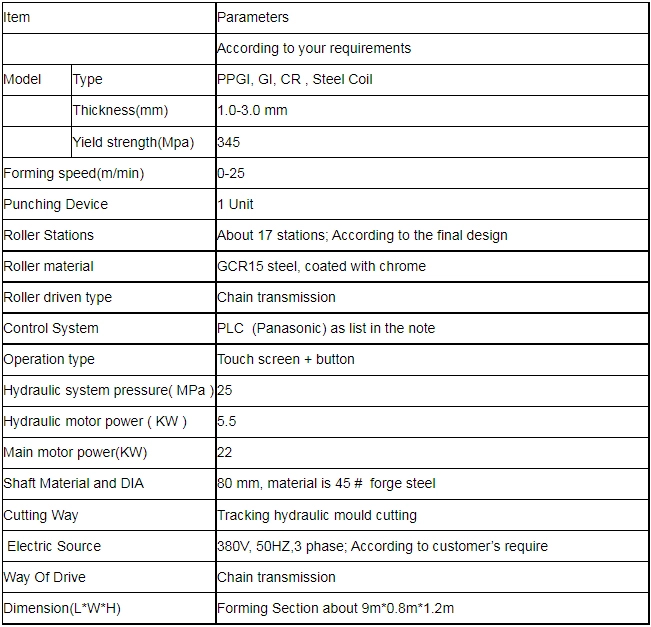

Manufacture: | Tengdi Machinery | Name: | C Purlin Profile Cold Roll Forming Machine |
Roller material: | Gcr15 steel with quenching | Production Capacity: | 10-15m/min |
Voltage: | 380V 50Hz 3phases | Dimension(L*W*H): | 13000*1500*1670mm |
Weight: | 14 Tons | Control system: | PLC with touch screen |
Place of Origin: | Shijiazhuang, China | Cutting blade material: | Cr 12 High Grade Steel |
After-sales Service Provided: | Engineers available to service machinery overseas |

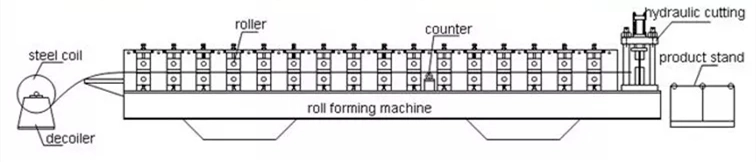

Decoiler--Feeding and Leveling--Punching--Main roll forming--Hydraulic cutting----Output table
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service.
C-shaped steel forming machine
1.production line process:
Disc uncoiler roll forming hydraulic punching to remove waste and cut off a finished profile
2.Rolled sheet: 0.6/1.2mm material; galvanized strip
3.Description of the main composition and structure of the production line:
Forming main machine (one main machine, two sets of profiles can be converted and two sets of cutting can be realized by adjusting the spacer)
(1) Forming line speed: 18m/min
(2) Forming passes: 10 passes
(3) The archway is a three-dimensional cast iron archway
(4) shaft diameter: medium 50mm. Material: 40Cr, quenched and tempered HB240-280
(5) Forming roll: material GCr15, quenching treatment, HRC58~62", hard chrome plated on the surface
(6) The power of the main motor is 5.5kw and the same motor
(7) Transmission mode: 120-type gearbox
(8) The fuselage part is the main body of this rolling mill. It is made of thick square tube 60*100 steel and iron plate welded by numerical control. It is firm and beautiful. The base is equipped with adjusting bolts for adjusting fuselage water flat position,the base is equipped with hoisting holes for easy installation and transportation.
(9) A set of calibration device with a discharge height of 700mm
(10) One Zhusa pump station, one 5.5KW, high-speed oil cylinder valve body.
(11) Surface treatment of equipment, after polishing, one coat of primer and two coats of outer paint
Manufacture: | Tengdi Machinery | Name: | C Purlin Profile Cold Roll Forming Machine |
Roller material: | Gcr15 steel with quenching | Production Capacity: | 10-15m/min |
Voltage: | 380V 50Hz 3phases | Dimension(L*W*H): | 13000*1500*1670mm |
Weight: | 14 Tons | Control system: | PLC with touch screen |
Place of Origin: | Shijiazhuang, China | Cutting blade material: | Cr 12 High Grade Steel |
After-sales Service Provided: | Engineers available to service machinery overseas |
Decoiler--Feeding and Leveling--Punching--Main roll forming--Hydraulic cutting----Output table
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service.
