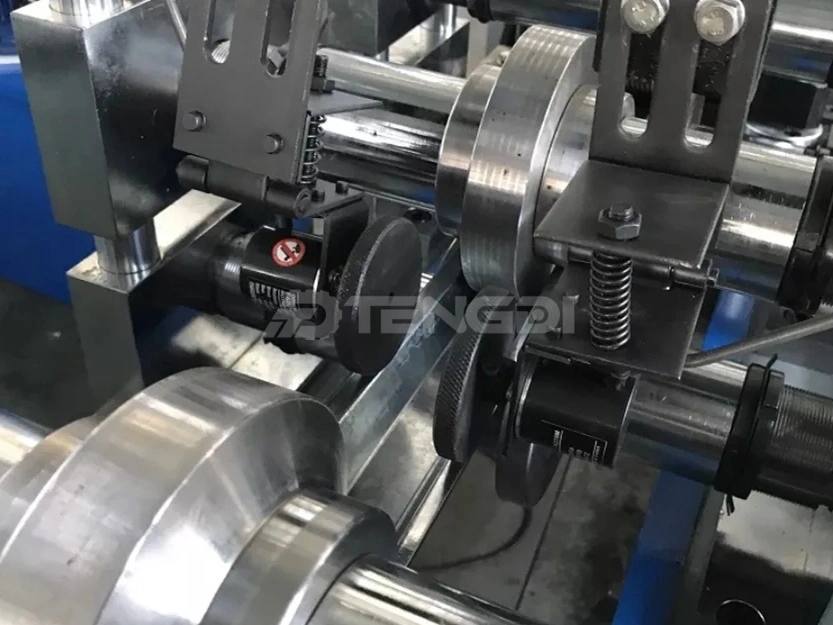

Are you looking for a high-quality Steel Structure Z purlin roll forming machine with excellent performance?
Tengdi Machinery is an excellent manufacturer of Z purlin forming machines and can discuss cooperation with us. Tengdi offers a wide selection of forming machines designed to meet your unique requirements. We can be sure that you will get the molding machine line option that best suits your needs. Tengdi works with skilled experts who contribute their years of experience and guarantee that all our work is of the highest standard.
| Manufacture: | Tengdi Machinery | Name: | Z Purlin Profile Cold Roll Forming Machine |
| Roller material: | Gcr15 steel with quenching | Production Capacity: | 10-15m/min |
| Voltage: | 380V 50Hz 3phases | Dimension(L*W*H): | 13000*1500*1670mm |
| Weight: | 14 Tons | Control system: | PLC with touch screen |
| Place of Origin: | Shijiazhuang, China | Cutting blade material: | Cr 12 High Grade Steel |
| After-sales Service Provided: | Engineers available to service machinery overseas | ||
Decoiler--Feeding and Leveling--Punching--Main roll forming--Hydraulic cutting----Output table
| Product Name | Z purlin roll forming machine |
| Suitable material | Galvanized steel coil |
| Coil thickness | 1.5-3.0mm |
| Control type | PLC automatic |
| Roller station | 15 |
| Main driving motor | 15KW |
| Hydraulic pump motor | 5.5KW |
| Cutting blade | Cr12Mov |
| Main Shaft Material | 45# steel with finish turning |
Summary
1. To design and make the best roll forming machine, we took EUROPEAN quality standard;
2. Choose the best material and components, and adopting our 17+ years experience;
3. We achieves that the machine capacity is double of the competitors;
4. The machine working speed can be 15m/min;
5 . Very easy to install and operate the roll forming machine.

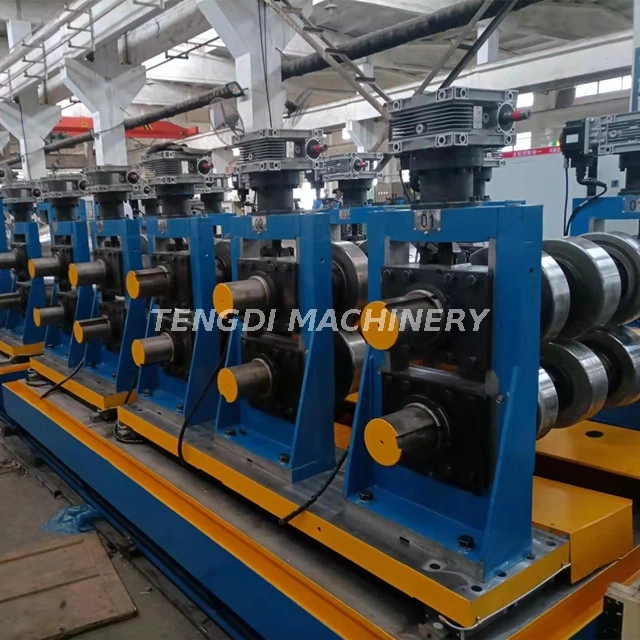

Main Forming machine | Forming steps | 16 steps |
Shaft diameter | 80mm | |
Machine stand | Individual Arch Plate | |
Machine frame | steel plate welded | |
roller material | Cr15 | |
shaft material | 45# steel with quenching and tempering | |
Work speed | 0-15m/min | |
Transport | By chains | |
Power of main machine | 18.5kw | |
Voltage | 380V-50HZ-3P(as required) | |
Machine dimension | 7.5*1.5*1.2m | |
Machine weight | About 6.5T | |
Machine color | Yellow and blue(as required) | |
Usage: In order to keep the product shape and precision, adopts welded sheet structure,motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime. | ||
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service.
