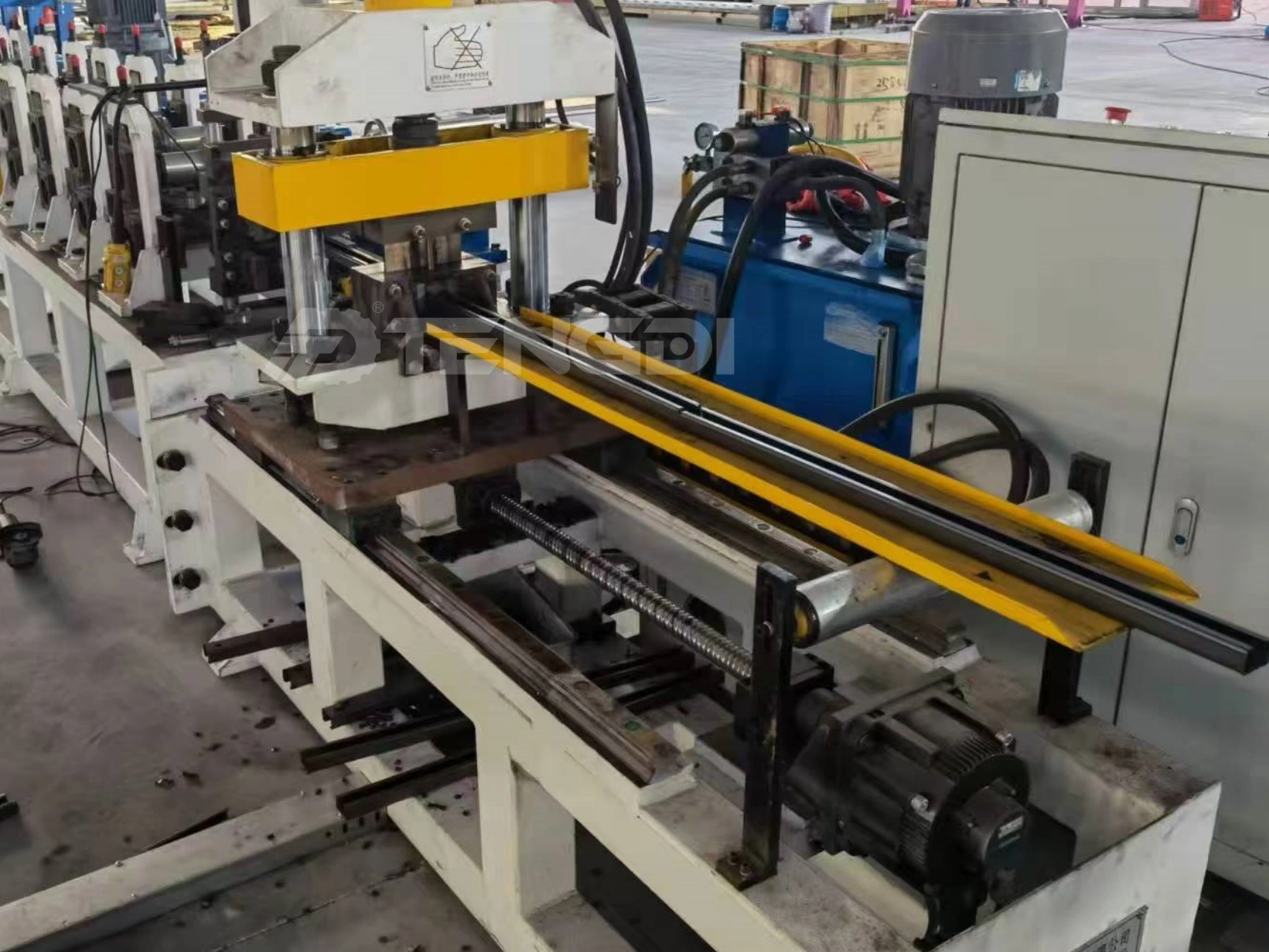

Are you looking for u purlin roll forming machine that will provide exceptional performance?
Tengdi Machinery is an excellent steel pipe making machine manufacturer with whom to explore collaborating. Tengdi provide a large selection of various forming machine choices that are intended to meet your unique requirements. We can be sure that you will get the finest steel pipe making line option for your needs. Tengdi collaborate with skilled specialists who contribute their years of experience and guarantee that all of our works meet the highest standards.
The characteristics of U-shaped steel automatic forming machine and the difference between U-shaped steel and channel steel:
Channel steel and U-shaped steel are just different names when used.
It is mainly divided into ordinary channel steel (U-shaped steel) and light channel steel (light U-shaped steel).
It can also be identified as follows: channel steel is formed by hot rolling, and U-shaped steel is generally rolled in a cold state.
The biggest difference between the two is the thickness: the overall thickness of the channel steel is different, and the overall thickness of the light U-shaped steel is the same
The details are as follows:
Cold-formed U-shaped steel refers to the one-time forming of professional equipment in a cold state. It is an economical cross-section light-weight thin-walled steel. It is called steel cold-formed high-efficiency and energy-saving profiles. According to the shape, it can be divided into four types: cold-formed equal-edge channel steel, cold-formed unequal-edge channel steel, cold-formed inner-curled channel steel, and cold-formed outer-curled channel steel. It has a variety of ultra-thin, reasonable and complex cross-sections that cannot be produced by hot rolling. Compared with hot-rolled section steel, in the case of the same cross-sectional area, the radius of gyration can be increased by 45-60%, and the section moment of inertia can be increased by 0.4-3.0 times, so the material strength can be used more reasonably;
Compared with ordinary steel structures (that is, steel structures made of traditional I-beams, channel steels, angle steels and steel plates), steel materials can be saved by about 25-50%. In some cases, the steel consumption of cold-formed U-shaped steel structures is equivalent to that of reinforced concrete structures under the same conditions, and it is an economical section steel.
Main features of U-shaped steel bracket: high pressure, long support time, easy installation and not easy to deform
Widely used in various fields, its uses can be roughly divided into highway guardrails, steel structures, steel formwork and scaffolding, ships and bridges, railway vehicles, steel sheet piles, automobiles, containers, transmission towers, etc.
Product thickness can be from 0.9-12mm. The specification is 20-400mm.
Manufacture | Tengdi Machinery | Name | u purlin roll forming machine |
Warranty time | One year | Production Capacity | 15-20m/min |
Voltage | 380V/50HZ 3Phase | Thickness | 0.8 - 1.2mm |
Total Weight | 3.5-6.4KG | Work Pressure: | 10-12MPa |
Place of Origin | Shijiazhuang, China | Hydraulic oil: | 40# hydraulic oil |
Cutting blade material | Cr12Mov,Three knives | Certification: | CE/ISO9001 |
Machine Components | ||
No. | Name | QTY |
1 | Manual uncoiler | 1 set |
2 | Feeding and leveling device | 1 set |
3 | Roll forming system | 1 set |
4 | Hydraulic punching and cutting | 1 set |
5 | Product support frame | 1 set |
6 | PLC Control System | 1 set |
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
