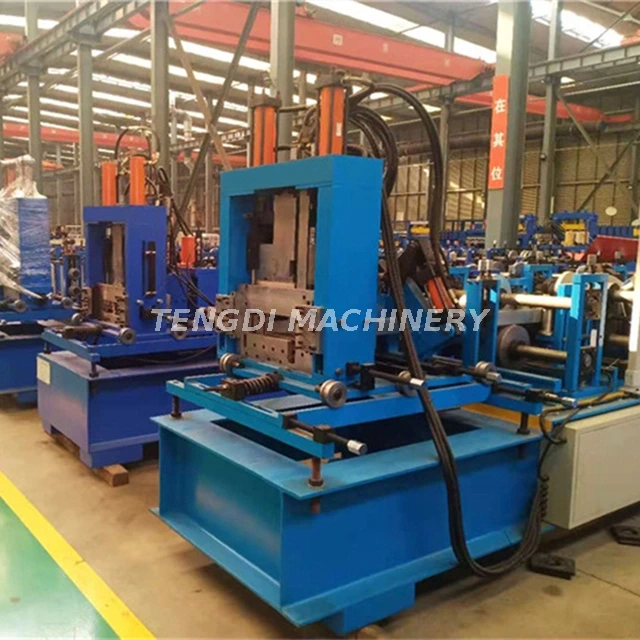

Are you looking for high-quality galvanized cold-formed C-purlin forming machines with excellent performance?
Our cold roll forming machine adopts continuous production technology, integrates machine, electricity and hydraulic integration, integrates advanced digital control technology, and is equipped with electric control and hydraulic equipment, advanced design concept, reasonable forming process and strong versatility , a cold roll forming machine with high strength, high performance and stability, can provide solutions according to profiles of different sections. Provide a multi-purpose production line with stable performance, high productivity and simple operation.
Tile Type: | Steel | Production Capacity: | 15 m/min |
Place of Origin: | China | Weight: | 3200 kg |
Key Selling Points: | Long Service Life | Feeding width: | 900mm |
Rolling thinckness: | 0.3-1mm | Core Components: | Bearing, Gear |
Raw material: | Galvanized Coil | Roller material: | 45#steel Chrome Plated |
C purlin roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
No | Item | Data |
1 | Raw material width | 600-800 mm |
2 | Sheet effective width | 300-500 mm |
3 | Raw material | Color steel sheet or galvanized steel sheet |
4 | Material thickness | 1-3 mm or customized |
5 | Forming roller material | 45# steel plated with chrome |
6 | Shaft diameter | 70 mm |
7 | Forming roll station | 8-16 steps |
8 | Main motor power | 3 KW 4 KW 5.5 KW(according to type) |
9 | Hydraulic power | 4 KW (according to type) |
10 | Control system | PLC control |

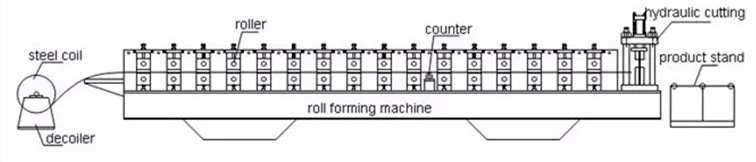

Decoiler--Feeding and Leveling--Punching--Main roll forming--Hydraulic cutting----Output table

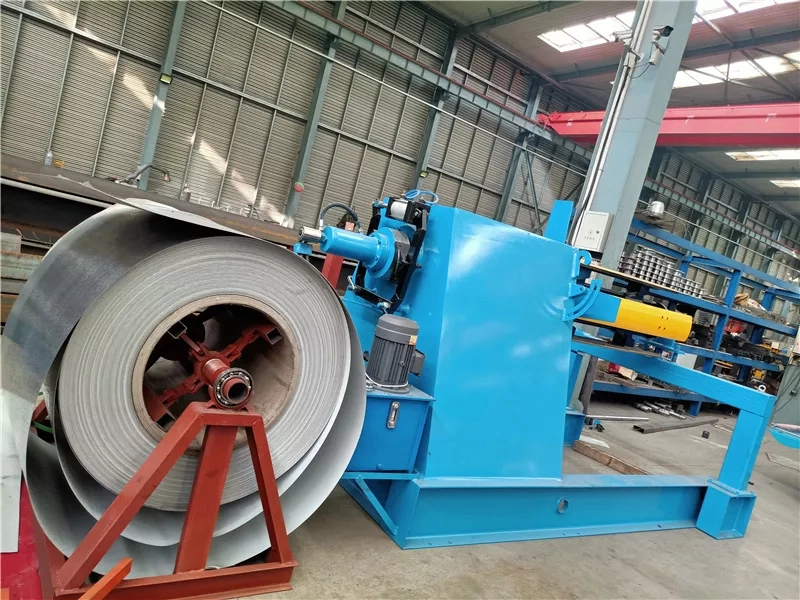

Decoiler
C purlin roll forming machine load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also can choose electric loading frame or hydraulic loading frame.

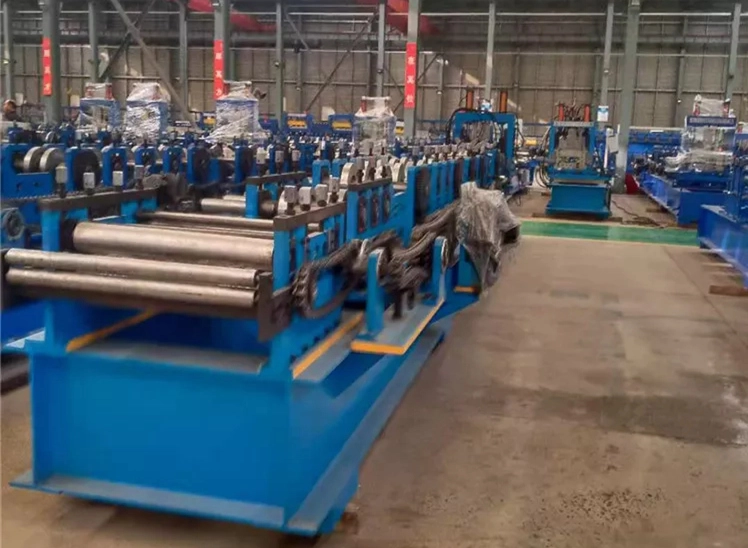

Machine frame

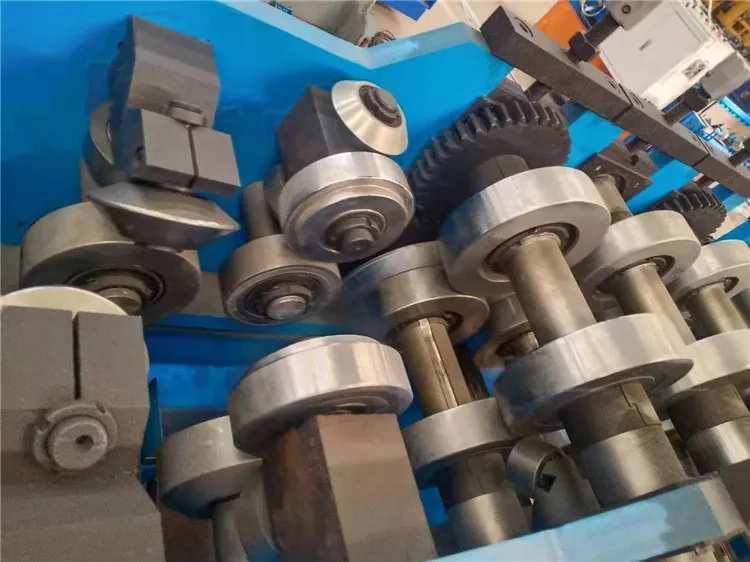

Forming roller

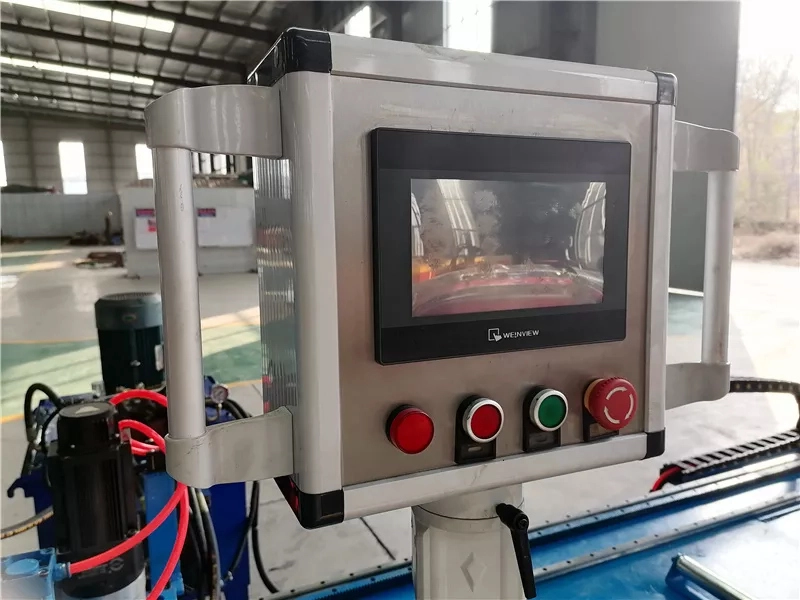

Control part
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A:We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service.
