Shelve Roll Forming Machine

Brand: Tengdi Machinery
Lead Time:
Est. Time(days) 60
Comprehensive scheme customization of equipment
1 year warranty

Are you looking for a high-quality solar bracket forming machine with excellent performance?

TENGDI's forming machine is used to form the shape and size of steel coils as required. It consists of feeding device, forming device, transmission device, quick adjustment device and frame.

The feeding part is used to guide the punching plate to run smoothly on the forming machine, and is composed of horizontal rollers, vertical roller guide rollers and frame. Vertical roller guide rollers can be easily adjusted by hand wheel to adapt to different widths. The power on both sides of the transmission part is driven by the motor, the gear and the intermediate gear are driven, and the roller shafts on both sides are driven independently.

Quick Details
Manufacture: Tengdi Machinery Name: CZ Purlin Roll Forming Machine
Use: photovoltaic forming machine Production Capacity: 10-15m/min
Voltage: 380V 50Hz 3phases Dimension(L*W*H): 13000*1500*1670mm
Weight: 14 Tons Control system: PLC with touch screen
Place of Origin: Shijiazhuang, China Cutting blade material: Cr 12 High Grade Steel
Roller material: Gcr15 steel with quenching Shaft material: 45#steel
After-sales Service Provided: Engineers available to service machinery overseas

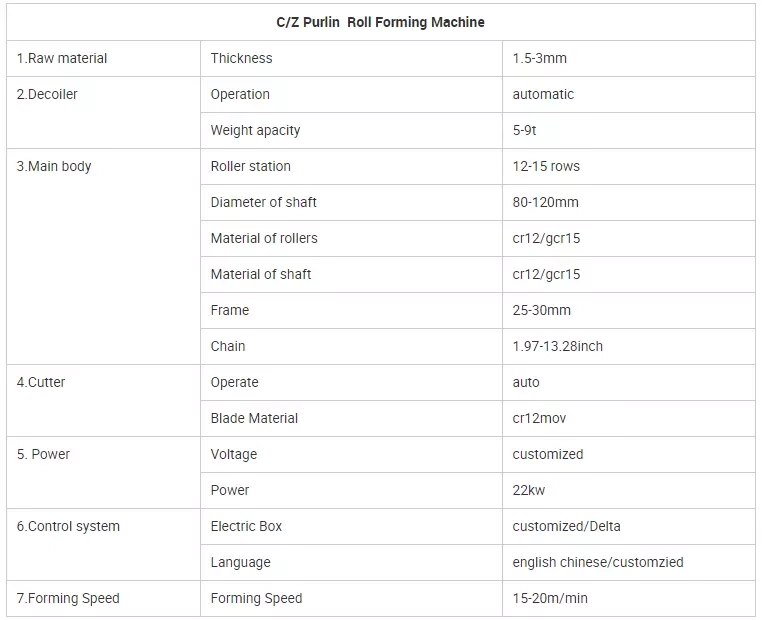

Product Parameters

C Z purlin cold roll forming machine is a machine can produce many sizes,Generally,there are three types of machine, C purlin machine, Z purlin roll forming machine, C Z Section Steel Purlin Machine. The size of holes can be design by customers

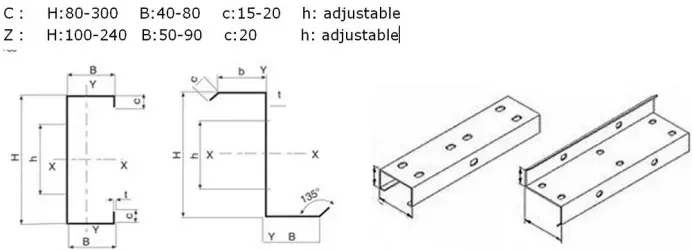

The drawing profiles for your reference

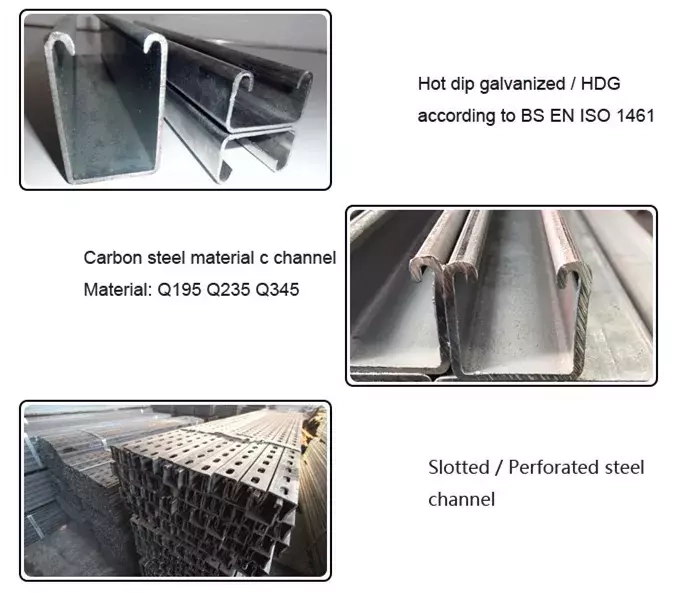

C-shaped steel

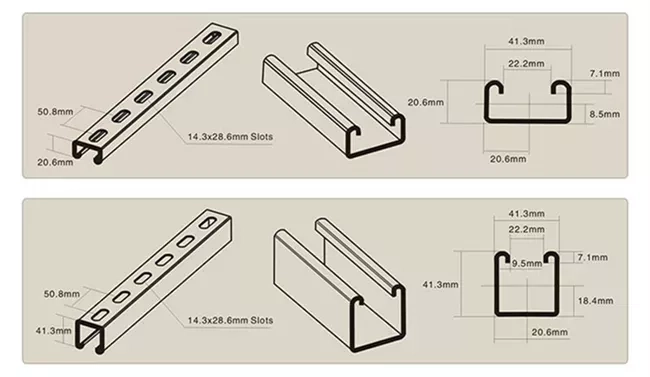

Profile drawing

solar molding machine


           Shelf forming machine

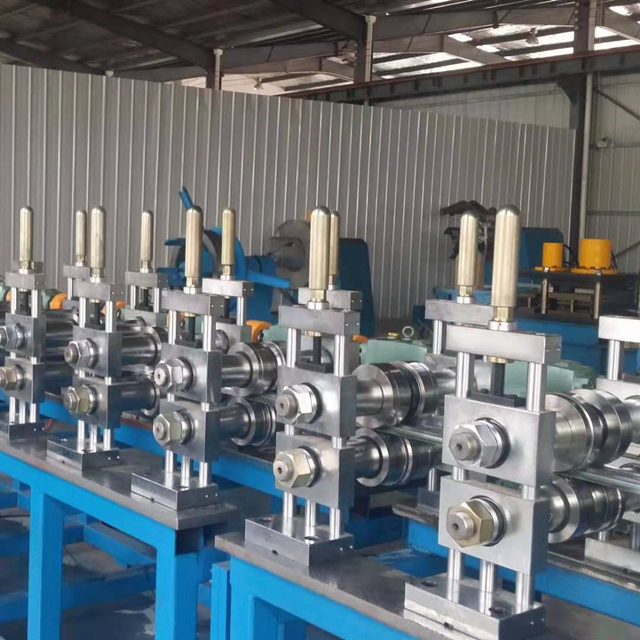

Product pics

             Forming machine C-shaped steel

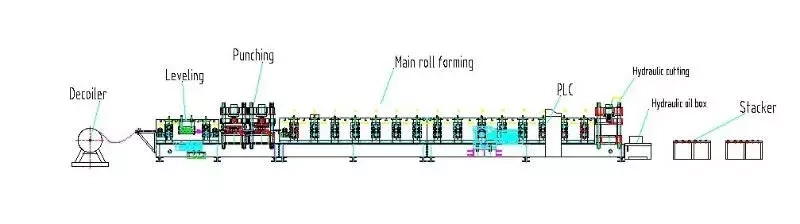

Working flow

Forming Machine

Packing & Delivery


Exhibition photos





Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.

Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!

Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.

Q: How do you do QA?

A:We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.

Q: Why choose you? What is the difference between you and other Chinese supplier?

A: You can get higher quality product & better professional service from TENGDI with same price.

Q: What I should do if just start a new business?

A: Contact us immediately, we provide free consultant pre-sales service

Q: How about your service?

A:Our services include:

(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!

(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.

(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
