Are you looking for a high-quality hat forming machine with excellent performance?

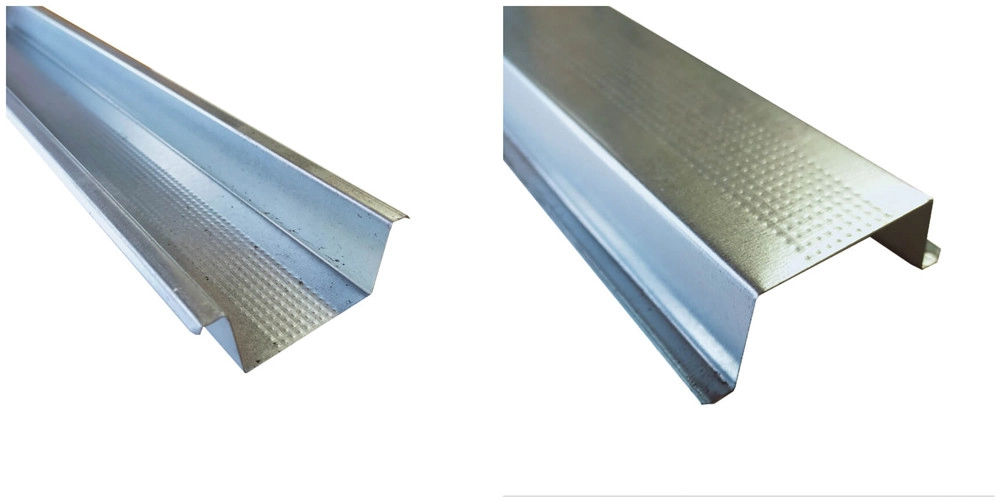

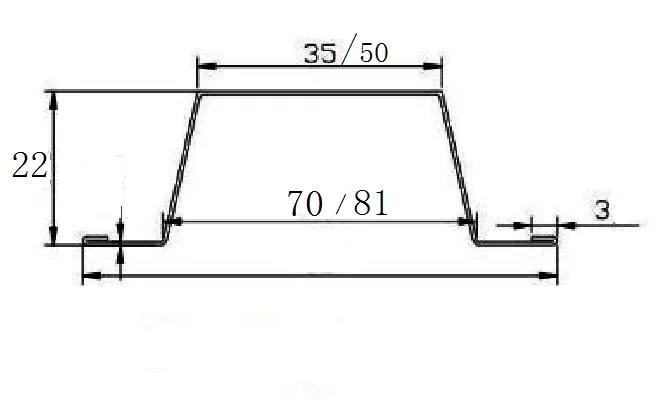

The utility model of the machine discloses a hat-shaped high-strength weather-resistant cold-formed steel, which is formed by cold-bending a high-strength weather-resistant steel plate to form an open-shaped steel. The cross-section of the open-shaped steel has five sides, and the five sides form a hat-shaped structure. The first bending angles of outward bending with side V are respectively 95-97°, and the second bending angles of inner bending between side I and side II, side I and side III are respectively 97-99°. The product of the utility model has high precision and good performance, effectively controls the rebound amount and stress release of high-strength weather-resistant steel, and ensures the cross-sectional size
Weight (KG): | 6500 | Speed: | 20-25m/min |
Raw material: | PPGI | Roller material: | CR12 |
Shaft material: | 45# | Motor: | 5.5KW |

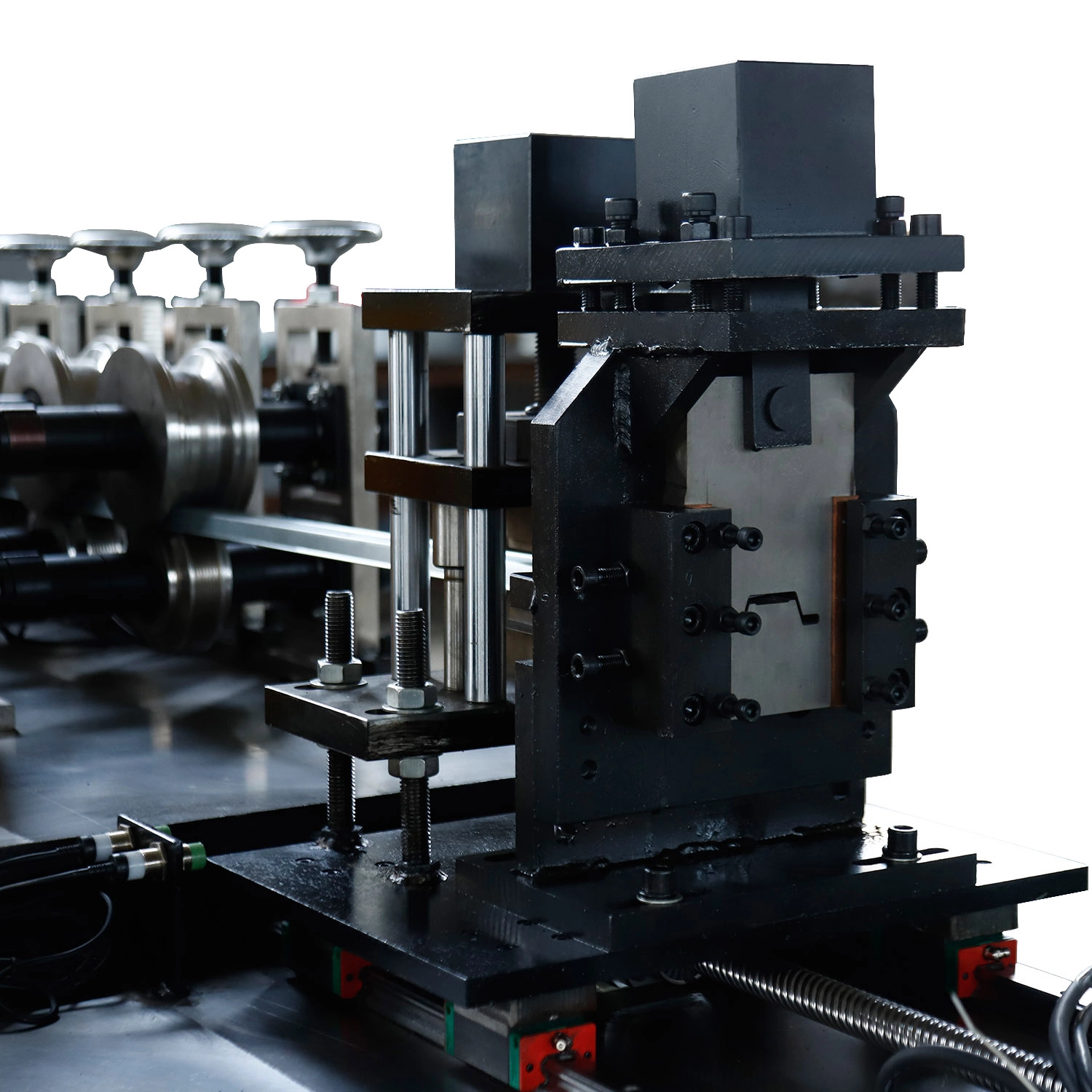

Cutting: | Hydraulic cutting | Voltage: | 380V 50hz,3ph |
Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction wor |
Effective width:Depend on size
Material Thickness:0.3-0.6mm or as request
Material Type : GI PPGI STEEL

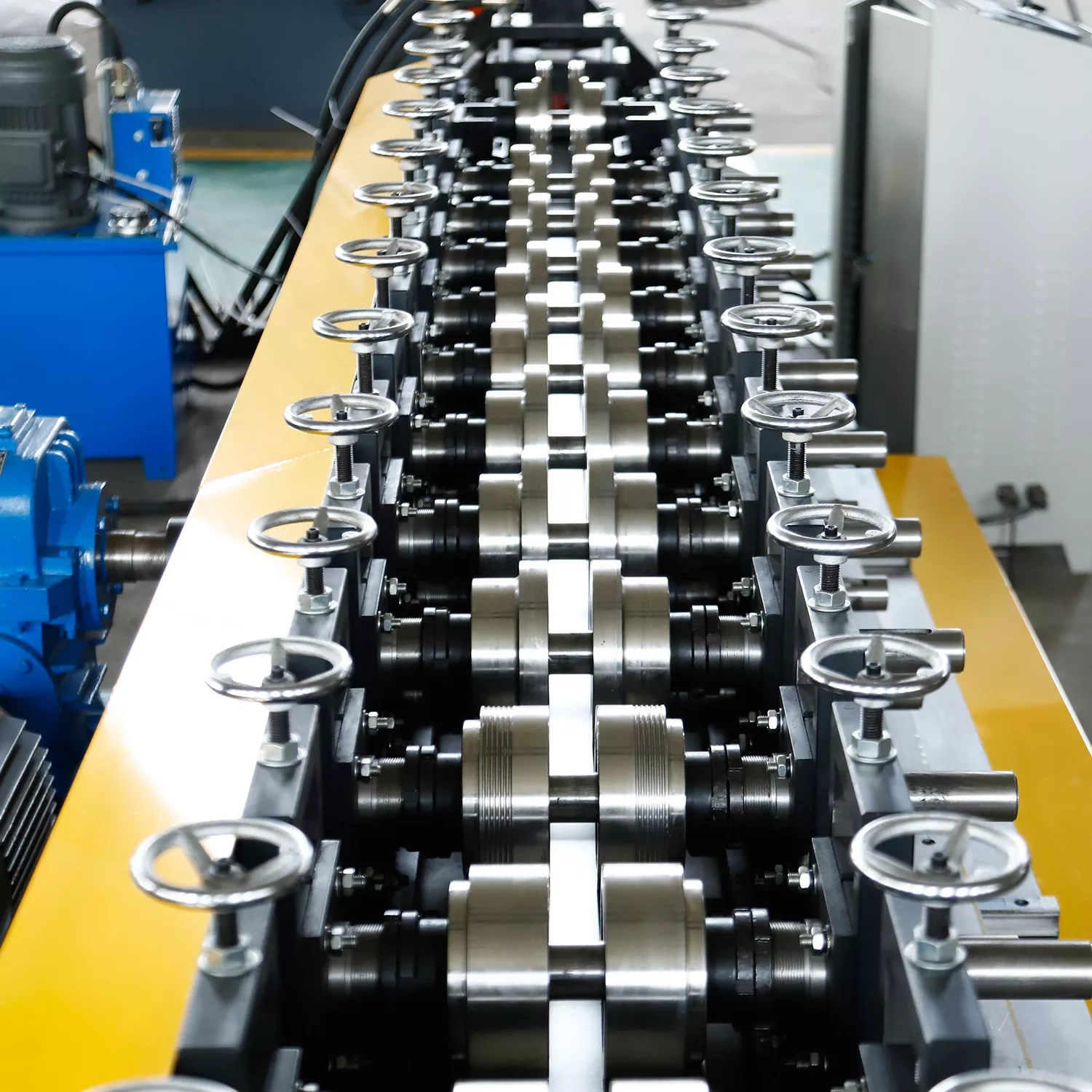

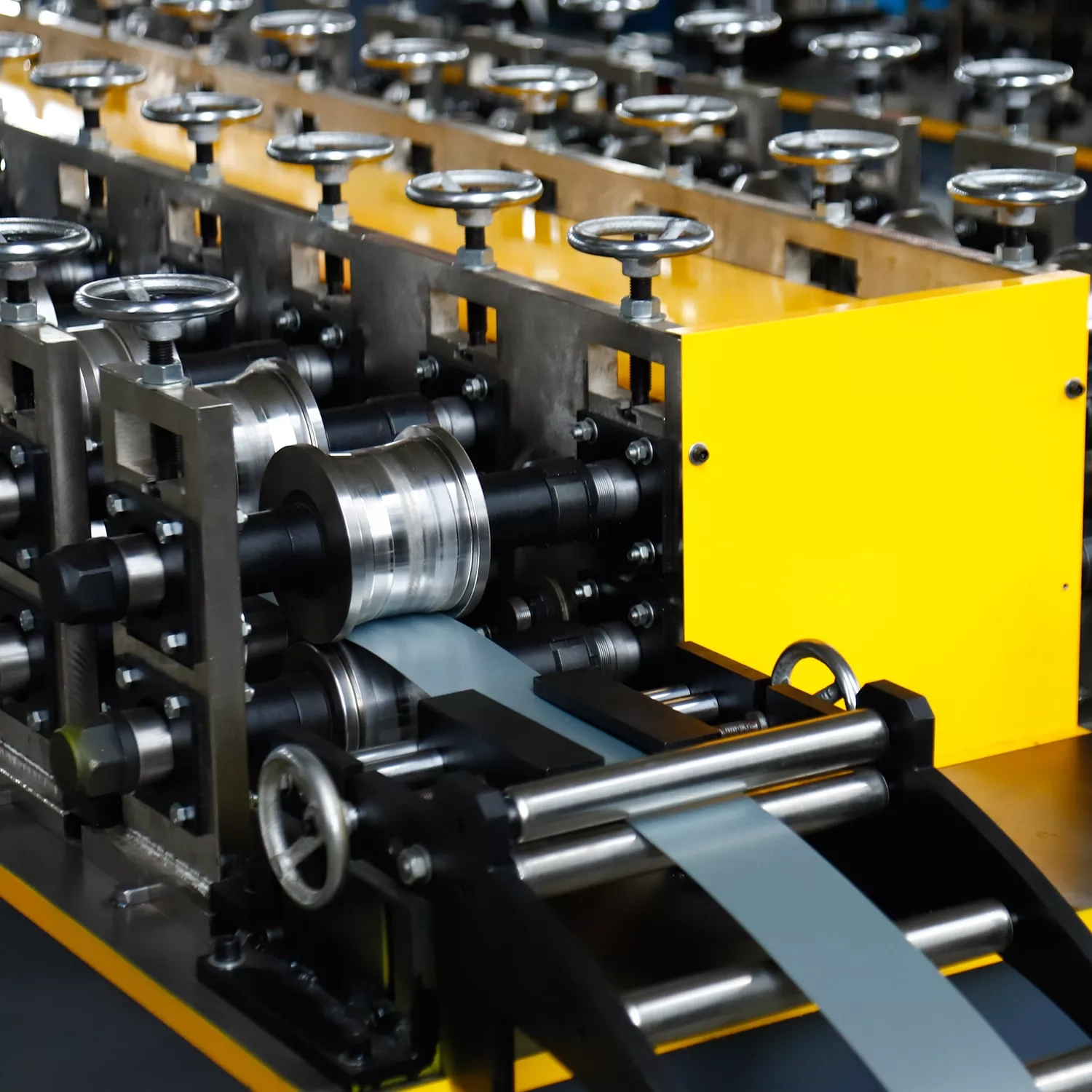

Roll Forming Machine | |
Structure | Cast Iron Roller Fixer |
Driving Type | Gear Driving |
Forming Stations | 11 Stations |
Diameter of Shaft | 40mm |

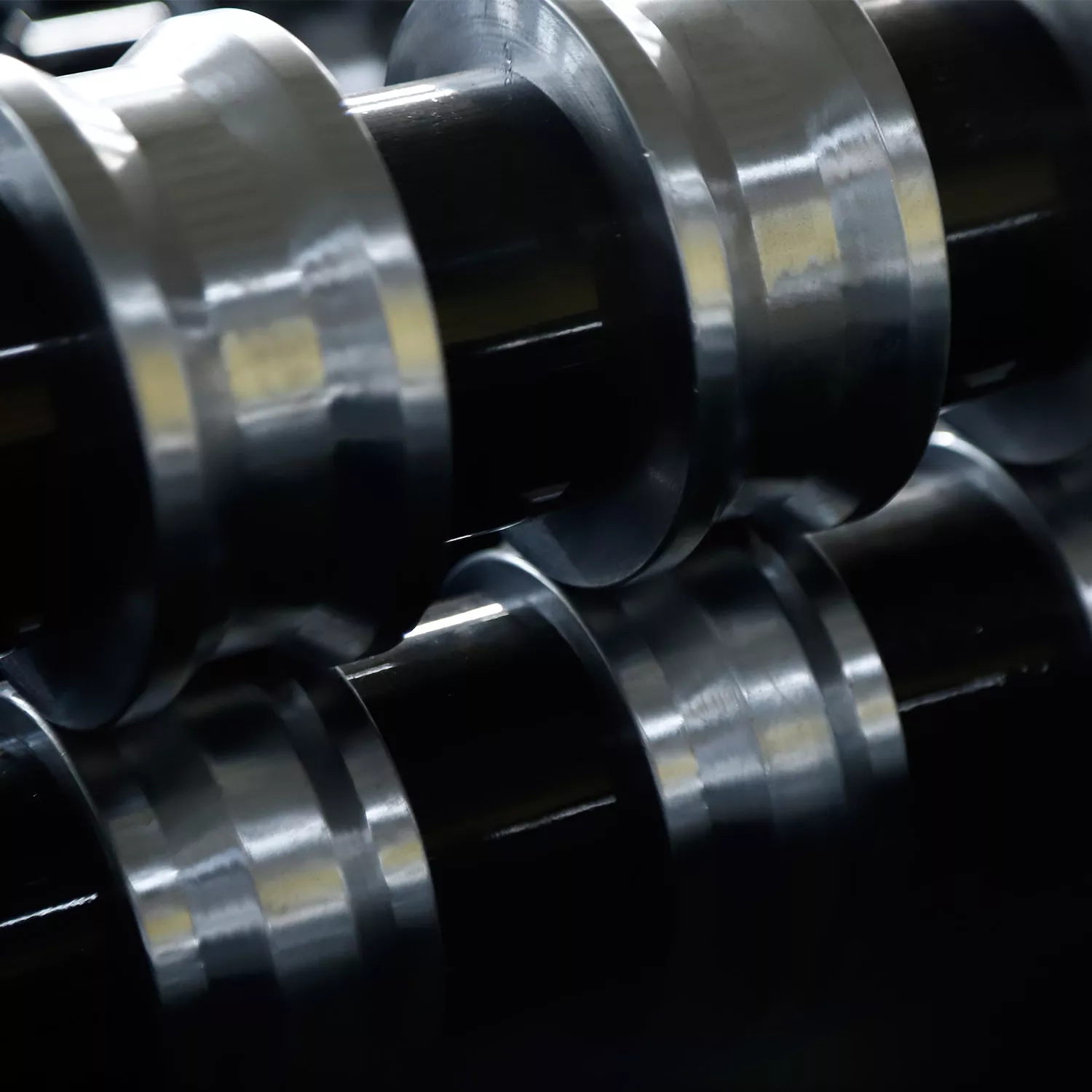

Material of Roller | Cr12 with Quenched Treatment |

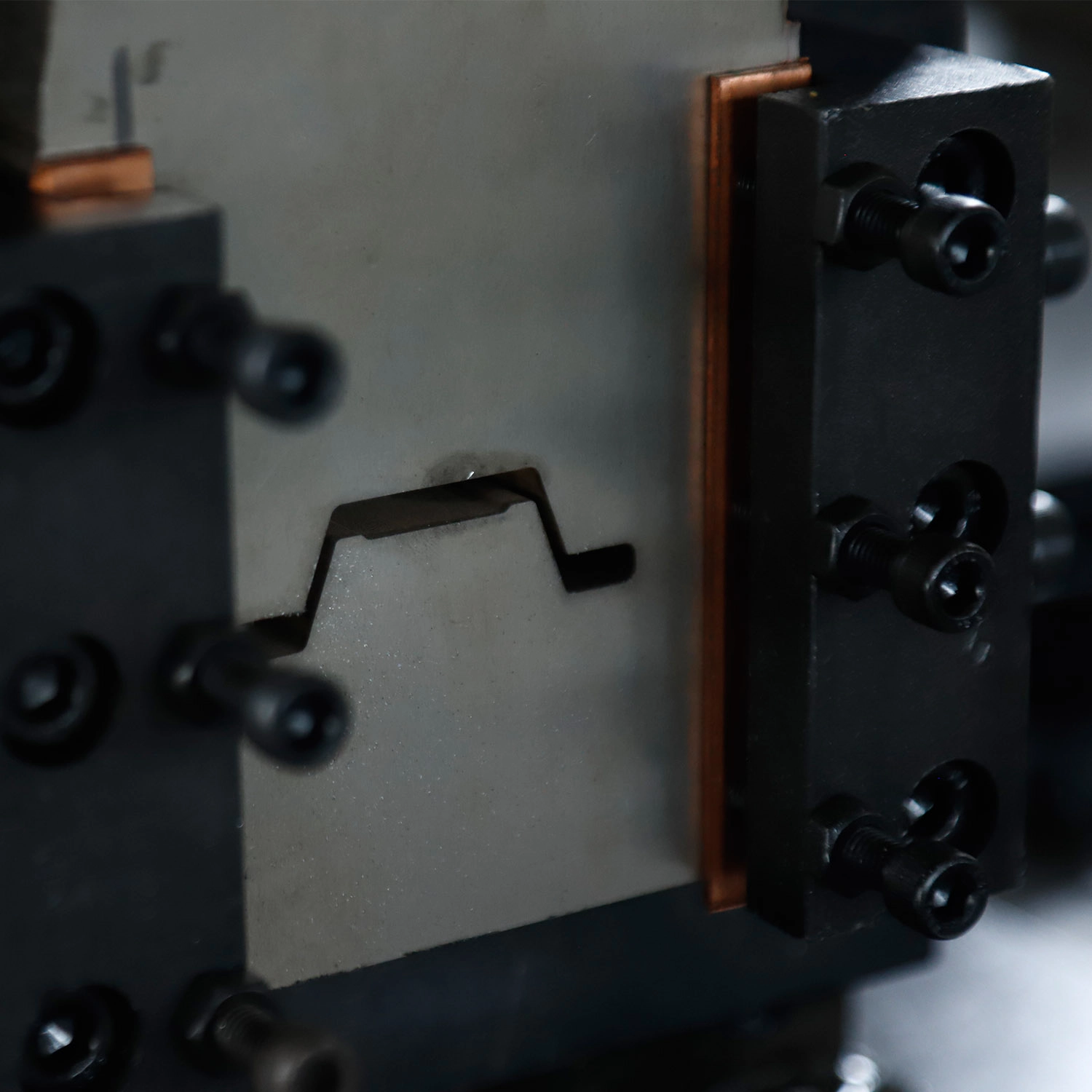

Material of Blade Mould | Cr12, Quenched 58-62 |
Electrical Requirement | 380V, 50Hz, 3Phase |
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A:We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service
Q: How about your service?
A:Our services include:
(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!
(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.
(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
