QFA
Are you looking for u purlin roll forming machine that will provide exceptional performance?
Tengdi Machinery is an excellent steel pipe making machine manufacturer with whom to explore collaborating. Tengdi provide a large selection of various forming machine choices that are intended to meet your unique requirements. We can be sure that you will get the finest steel pipe making line option for your needs. Tengdi collaborate with skilled specialists who contribute their years of experience and guarantee that all of our works meet the highest standards.
u purlin roll forming machine
1. The equipment has high strength, durability and long service life.
2. One machine can be used for multiple purposes. By changing the mold, various U-shaped grooves, water tanks, hollow bricks, solid bricks, etc. can be produced.
3. When forming, the machine adopts the structure principle that the lower mold box and the upper mold box vibrate together, which has the characteristics of reasonable structure, good vibration effect, power saving, etc., and can achieve satisfactory molding results, and its performance can be comparable to that of large equipment.
4. Electric push-pull mold, easy to operate, labor-saving and labor-saving.
5. In normal production, 2~3 people are employed, 1 person drives the mixer, 1 person drives the machine, and 1 person loads materials and produces bricks.
Manufacture | Tengdi Machinery | Name | u purlin roll forming machine |
Warranty time | One year | Production Capacity | 15-20m/min |
Voltage | 380V/50HZ 3Phase | Thickness | 0.8 - 1.2mm |
Total Weight | 3.5-6.4KG | Work Pressure: | 10-12MPa |
Place of Origin | Shijiazhuang, China | Hydraulic oil: | 40# hydraulic oil |
Cutting blade material | Cr12Mov,Three knives | Certification: | CE/ISO9001 |

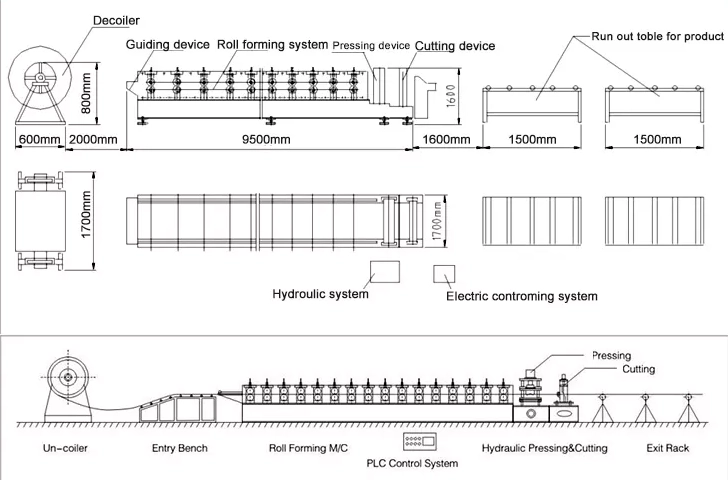

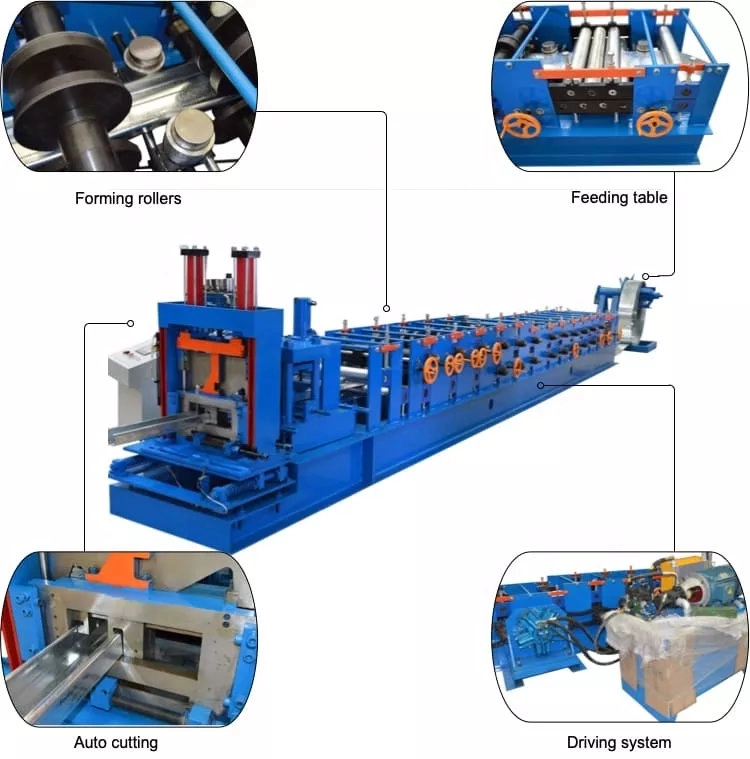

Machine Components | ||
No. | Name | QTY |
1 | Manual uncoiler | 1 set |
2 | Feeding and leveling device | 1 set |
3 | Roll forming system | 1 set |
4 | Hydraulic punching and cutting | 1 set |
5 | Product support frame | 1 set |
6 | PLC Control System | 1 set |
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
