    Forming host

    (1) Forming line speed: 18m/min (2) Forming passes: 12 passes

    (3) The archway is a three-dimensional cast iron archway, with chain transmission

    (4) Shaft diameter: medium 55mm, material: 40Cr, quenched and tempered, HB240-280

    (5) Forming roll: GCr15, quenched, HRC58~62°

    (6) Main motor power: 5.5kw

    (7) The fuselage is the main body of the rolling mill. It is made of thick square tube 60*100 steel and iron plate welded by numerical control. It is firm and beautiful. The base is equipped with adjusting bolts for adjusting the horizontal position of the fuselage. Easy to install and transport

    (8) One set of calibration device, discharge height 850mm (9) One plunger pump station, 3kw


    Quick Details

    Manufacture: Tengdi Machinery Name: CZ Purlin Roll Forming Machine
    Use: photovoltaic forming machine Production Capacity: 10-15m/min
    Voltage: 380V 50Hz 3phases Dimension(L*W*H): 13000*1500*1670mm
    Weight: 14 Tons Control system: PLC with touch screen
    Place of Origin: Shijiazhuang, China Cutting blade material: Cr 12 High Grade Steel
    Roller material: Gcr15 steel with quenching Shaft material: 45#steel
    After-sales Service Provided: Engineers available to service machinery overseas





    Main features

    One solar photovoltaic panel strut roll forming machinecan produce several shape products as panel profile. The different size of channel is adjusted by the spacers between up and downside rollers. Because the design of these spacers is half circle, then two joint together, so when adjusting, needn't remove the rollers, it is very easy and convenient.when change different specification, need to change the cutting mould.

    Working flow

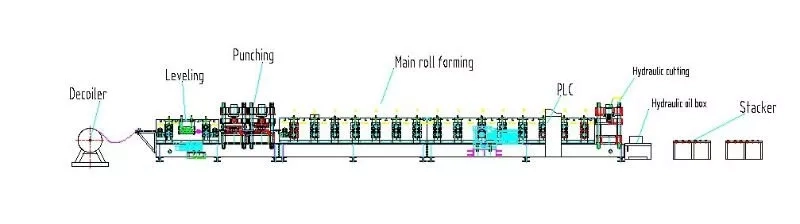

    Decoiler--Feeding and Leveling--Punching--Main roll forming--Hydraulic cutting----Output table

    5B9023A5-9F9B-4390-A968-3C9E1BF2D2B4

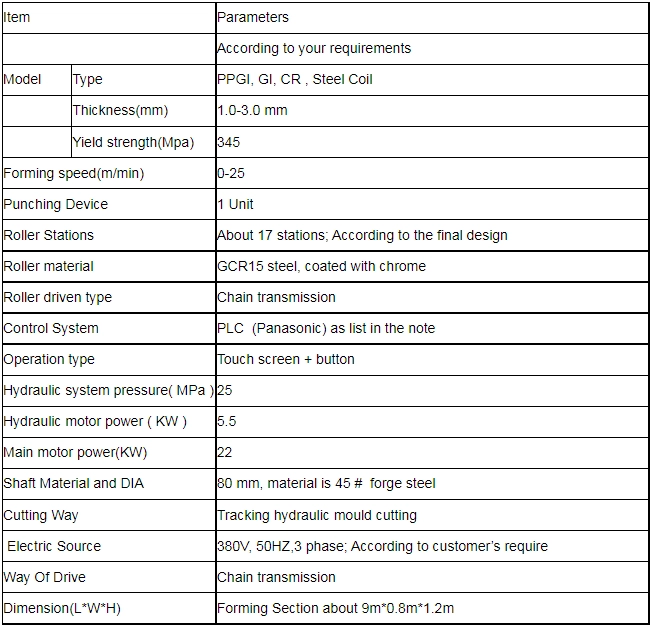

    Technical parameters

    3DDA9394-89B8-48ac-9E85-C176E142FD7C

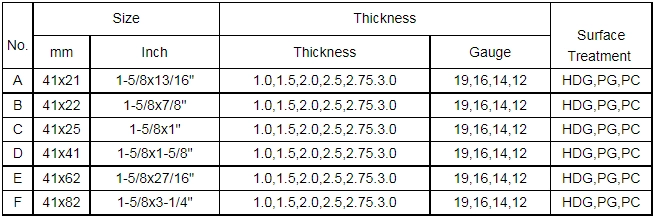

    Main models

    2C420D92-0155-427b-9E88-327EFFE2B8A2

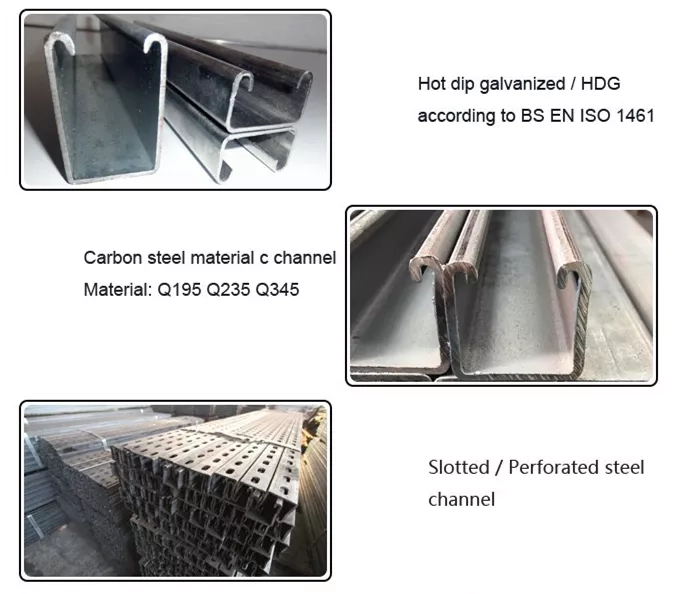

    Product pics

    3524E9B5-E143-4d2d-B26C-B7F0006AD531

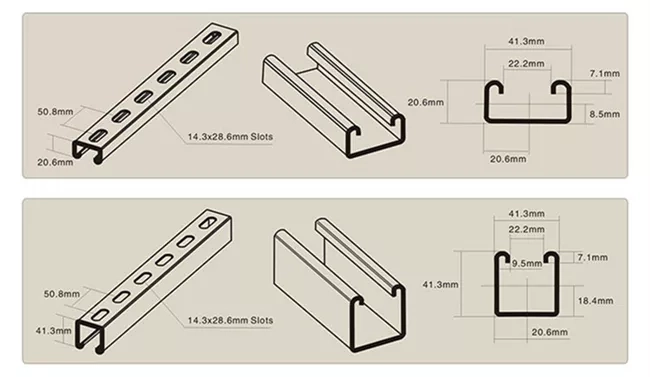

    Profile drawing

    6B18AA45-F389-444d-95FC-03DA8EF572A0

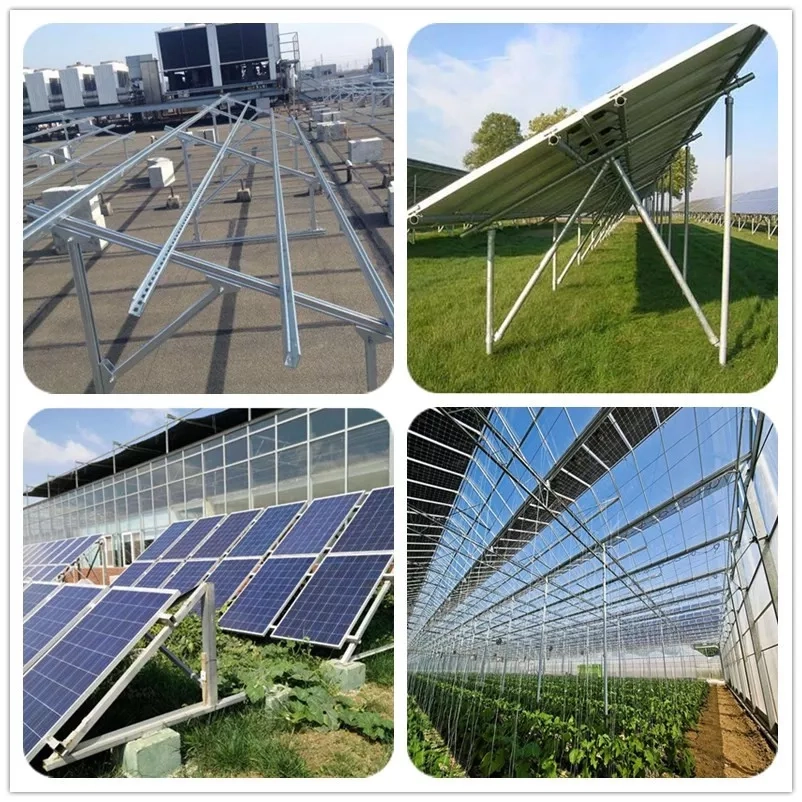

    Application

    F6B07747-A642-4c9f-9727-2A3D35B15A4B

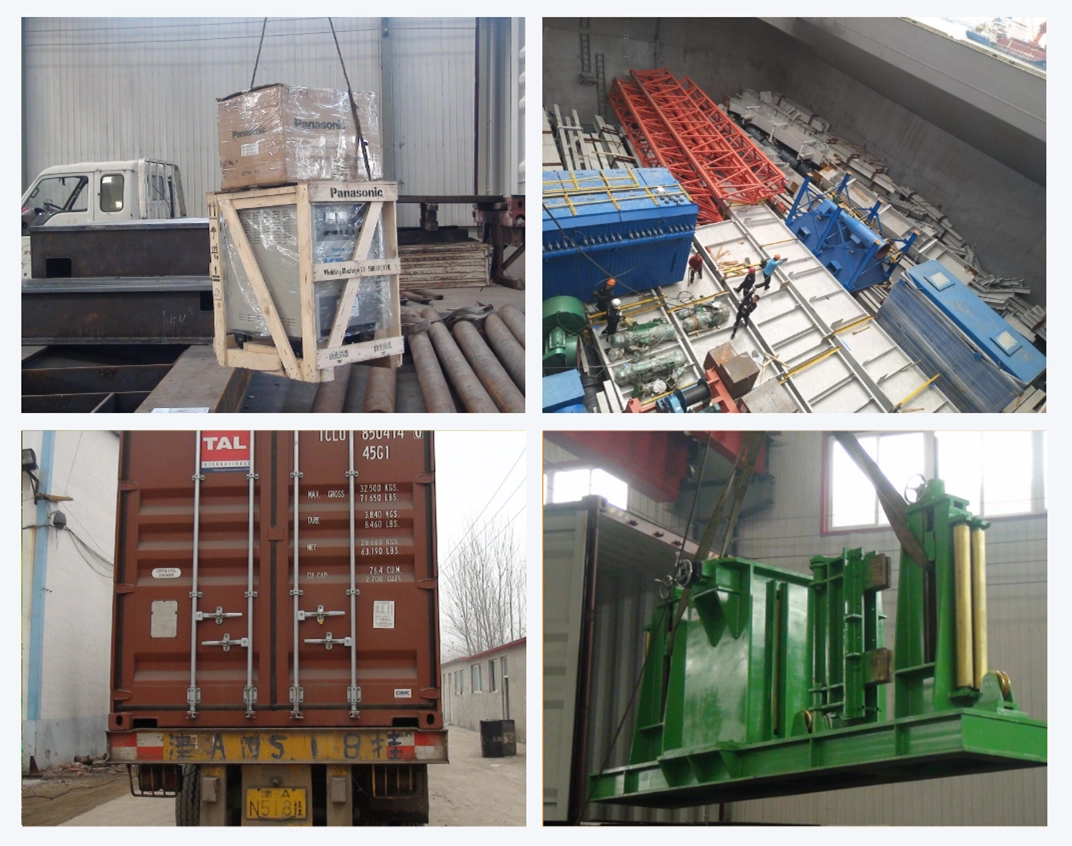

    Packaging and delivery
