Are you looking for Steel Frame Roll Forming Machine that will provide exceptional performance?
Tengdi Machinery is an excellent steel pipe making machine manufacturer with whom to explore collaborating. Tengdi provide a large selection of various Steel Frame Roll Forming Machine choices that are intended to meet your unique requirements. We can be sure that you will get the finest Steel Frame Roll Forming Machine option for your needs. Tengdi collaborate with skilled specialists who contribute their years of experience and guarantee that all of our works meet the highest standards.

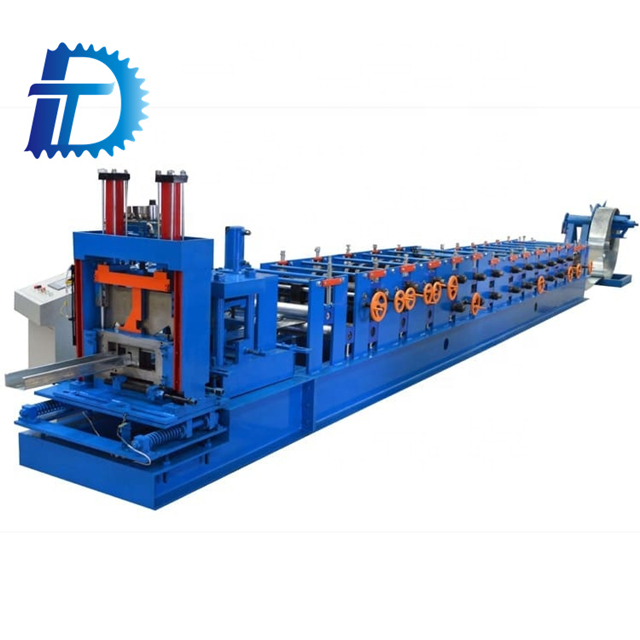

C Channel Roll Forming Machine：
The C-shaped steel machine is mainly composed of a passive loading rack, a leveling device, a punching device, a cutting device after forming, a hydraulic station, and a computer control system. This machine adopts automatic flying saw punching, easy to operate and so on. The main purpose products can be used as the main force-bearing structure of large and medium-sized industrial and civil buildings. C-shaped steel machine, also known as C-shaped steel sandalwood machine, is one of many types of tile presses, and it is a basic type of tile press. Unlike the color steel plate forming machine, it is hydraulically powered, and the power is very large, generally around 22KW, similar to the shearing plate bending machine, the general control process is complicated, and PLC control is mostly used.
The process flow of C-shaped steel machine equipment: The strip steel is fed from the tail of the equipment, and is pressed into C-shaped steel by various pressure rollers and sent out from the head. In the traditional process, the C-shaped steel needs to be cut to length manually after being pressed and formed, and then transported to the punching equipment to punch holes according to the size required by the customer. The production cannot be continuous and the efficiency is not high.
C-shaped steel belongs to high-efficiency and economical cutting profile (others include cold-formed thin-walled steel, profiled steel plate, etc.), because of the reasonable cross-sectional shape, they can make the steel more effective and improve the cutting capacity. Different from ordinary I-shaped, the wings of H-shaped steel are widened, and the inner and outer surfaces are usually parallel, which can facilitate the connection with high-strength snails and other components. Its size constitutes a reasonable series, and the models are complete, which is convenient for design and selection. C-shaped steel machine, also known as C-shaped steel sandalwood machine, is one of many types of tile presses, and it is a basic type of tile press. Unlike the color steel plate forming machine, it is hydraulically powered, and the power is very large, generally around 22KW, similar to the shearing plate bending machine, the general control process is complicated, and PLC control is mostly used.
The C-shaped steel machine is a single roll forming unit with a set of rolls that can produce C-shaped purlins of various specifications. The machine is mainly composed of passive loading rack, leveling device, punching device, cutting device after forming, hydraulic station, computer control system, etc. This machine adopts automatic flying saw punching, easy to operate and so on. The main purpose of the C-shaped steel machine can be used as the main force-bearing structure of large and medium-sized industrial and civil buildings.
The mold used in the C-shaped steel machine equipment needs an upper mold and six lower molds of the same size. Install the upper mold and one lower mold first. The lower mold is directly installed on the six-square runner table, and the upper mold is installed on the bottom surface of the slide seat. , and place a backing plate of appropriate thickness to ensure that after the upper and lower molds are closed, the gap around the periphery is uniform, and the distance between the upper and lower molds is equal to the thickness of the required tile blank. Then the upper mold shall prevail, the workbench shall be rotated, and the remaining five lower molds shall be installed. After all the upper and lower molds are installed, the car can be driven for tile pressing.
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
