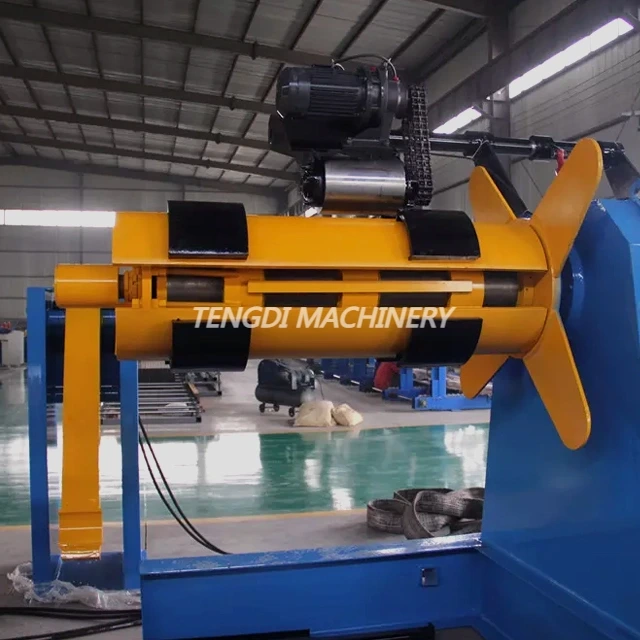

Fully automatic hydraulic single cone uncoiler

Origin: China
Brand: Tengdi Machinery
Specifications: Below 10T
Delivery Time: EST. Time (days) 90
Services: Customized services for comprehensive equipment solutions. One year warranty
SKU:
Availability:

Are you looking for a high-quality steel pipe decoiler with excellent performance?

Tengdi Machinery is an excellent manufacturer of steel pipe uncoiling machinery, and can explore cooperation with us. Tengdi offers a wide selection of decoilers designed to meet your unique requirements. We can be sure that you will get the steel pipe line option that best suits your needs. Tengdi works with skilled experts who contribute their years of experience and guarantee that all of our work is of the highest standard.

high-quality steel pipe decoiler:

The fully automatic hydraulic uncoiler is mainly used for one-to-one equipment for metal sheet leveling. The main body of the uncoiler is a welded box-shaped structure, and the uncoiler reel shaft is driven to provide the main power for the uncoiler after deceleration by the frequency conversion speed regulation motor through the gear box. The fully automatic hydraulic uncoiler is mainly used for leveling the steel plate and the uneven plate. According to the relevant machine configuration, it can be formed into an uncoiling, leveling, shearing production line and other sheet product production lines. Suitable for mechanical vehicles, metal products, household appliances, steel structures, decoration and other industries. The function of the uncoiler is to drive the steel coil to rotate; the other function is to tighten and support the steel coil. The tensioning of the uncoiler is accomplished by pushing the inclined slider with the oil cylinder or cylinder installed with the main shaft. Most of the small uncoilers use the cylinder, and the large uncoilers use the hydraulic cylinder; and the realization of the rotation is through the motor. The reducer drives the main shaft to rotate. The oil cylinder or air cylinder installed on the main shaft needs to rotate together with the main shaft, and the oil cylinder or air cylinder needs to be connected to a section of the working medium pipeline, and the other end of the pipeline must be connected to the pump station or the solenoid valve.

The maintenance items of the automatic hydraulic uncoiler are as follows:

1. The uncoiler needs to be refueled regularly

2. When the power is turned on, it is necessary to carefully check whether all parts are stuck.

3. When operating, make sure to operate in strict accordance with the operating procedures, and always pay attention to the operating status of the equipment.

4. During the operation of the equipment, if there is abnormal noise or shock and other abnormal conditions, it should be stopped immediately for inspection.

5. Operators need to coordinate with each other and obey the instructions of the person in charge of the entire assembly line to prevent sudden shutdowns.

6. When the entire assembly line is finished, make sure to clean up the site, and do the maintenance and maintenance of the equipment, and turn off the power of the equipment.



Quick Details
Machine Type: Uncoiler Core Components: PLC, Engine, Gearbox, Motor
Place of Origin: China Control System: Pneumatic Or Manual
Applicable Industries: Other, Manufacturing Plant, Steel pipe production line, Metal co

Produce Application

The uncoiler is a special equipment for metal sheet leveling, which is used to level the steel sheet. The concave-convex plate can be composed of unwinding, leveling, shearing production lines and other plate product production lines according to relevant configurations. Suitable for machinery, vehicles, metal products, household appliances, steel structure, decoration and other industries.

Product Features

(1) The rotation of the automatically operated uncoiler is controlled by the automatic ring arm. Ring arm controls variable speed operation, providing smooth stops and starts. Variable speed reduction uncoiler.

(2) The rotary drive system of the safety uncoiler and the expansion power of the reel are fully guaranteed. Overhang control allows to disable automatic rotation during coil loading.

(3) Electrical requirements require three-phase power. The device can operate in the 220-575 volt range at 50 or 60 Hz.

(4) Construction buildings include steel plates and heavy structural profiles. The plate seams are hermetically welded. Structural supports are included when necessary. The expansion and contraction of the mandrel is achieved through a link system that includes bronze bearings.

(5) The uncoiler is completed. After fabrication, the uncoiler frame is machine cleaned and powder coated before electromechanical assembly.

(6) Coil Cart Options A coil cart with weight capacity matching the specified uncoiler can be included. The coil cart includes a "V" shaped surface to center the coil during movement. The coil cart includes sufficient vertical travel to contact the lower surface of the mandrel when fully extended. The power coil car moves along rails installed in the base of the uncoiler. Hydraulic check valve prevents vertical coil drop in the event of loss of hydraulic pressure.

(7) Installation of the uncoiler and the roll car can be installed by placing on a typical industrial concrete foundation and drilling holes on the concrete expansion bolts.

Uncoiler 1Uncoiler 3

Packaging and delivery

33

Exhibition photos

22

Certificate

11

QFA


Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.


Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!


Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.


Q: How do you do QA?

A:We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.


Q: Why choose you? What is the difference between you and other Chinese supplier?

A: You can get higher quality product & better professional service from TENGDI with same price.


Q: What I should do if just start a new business?

A: Contact us immediately, we provide free consultant pre-sales service.
