Are you looking for a high-quality steel pipe decoiler with excellent performance?
Tengdi Machinery is an excellent manufacturer of steel pipe uncoiling machinery, and can explore cooperation with us. Tengdi offers a wide selection of decoilers designed to meet your unique requirements. We can be sure that you will get the steel pipe line option that best suits your needs. Tengdi works with skilled experts who contribute their years of experience and guarantee that all of our work is of the highest standard.

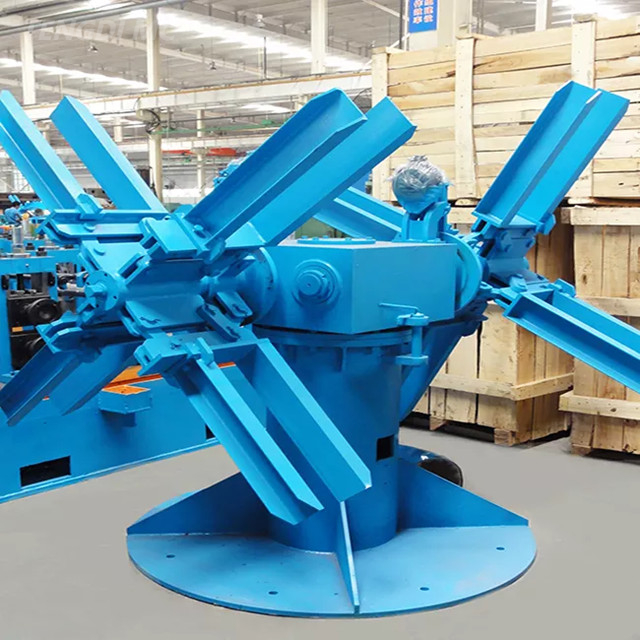

Introduction of Metal Strip Uncoiler：
The uncoiler is one of the essential and important equipments in the welded pipe production line. One of its functions is to support the steel coil by tightening the inner hole of the steel coil; into the leveler. Therefore, the performance of the uncoiler has a crucial impact on the entire production line. In the design practice for many years, the structure of the uncoiler has been continuously optimized and improved, so that the performance of the uncoiler has been improved.
The main shaft of the decoiler has two functions, one is to drive the coil to rotate; the other is to support the tension of the coil. The realization of tightening is usually accomplished by the oil cylinder or cylinder installed with the main shaft to push the inclined slider. Small units use cylinders, and large units use oil cylinders. The realization of rotation is usually accomplished by the motor driving the main shaft to rotate through the reducer. of. The oil cylinder or air cylinder installed on the main shaft should rotate together with the main shaft, and the oil cylinder or air cylinder needs to be connected to one end of the working medium pipeline, and the other end of the pipeline should be connected to the hydraulic station or solenoid valve.
| Machine Type: | Uncoiler | Core Components: | PLC, Engine, Gearbox, Motor |
| Place of Origin: | China | Control System: | Pneumatic Or Manual |
| Applicable Industries: | Other, Manufacturing Plant, Steel pipe production line, Metal co | ||
The uncoiler is a special equipment for metal sheet leveling, which is used to level the steel sheet. The concave-convex plate can be composed of unwinding, leveling, shearing production lines and other plate product production lines according to relevant configurations. Suitable for machinery, vehicles, metal products, household appliances, steel structure, decoration and other industries.
(1) The rotation of the automatically operated uncoiler is controlled by the automatic ring arm. Ring arm controls variable speed operation, providing smooth stops and starts. Variable speed reduction uncoiler.
(2) The rotary drive system of the safety uncoiler and the expansion power of the reel are fully guaranteed. Overhang control allows to disable automatic rotation during coil loading.
(3) Electrical requirements require three-phase power. The device can operate in the 220-575 volt range at 50 or 60 Hz.
(4) Construction buildings include steel plates and heavy structural profiles. The plate seams are hermetically welded. Structural supports are included when necessary. The expansion and contraction of the mandrel is achieved through a link system that includes bronze bearings.
(5) The uncoiler is completed. After fabrication, the uncoiler frame is machine cleaned and powder coated before electromechanical assembly.
(6) Coil Cart Options A coil cart with weight capacity matching the specified uncoiler can be included. The coil cart includes a "V" shaped surface to center the coil during movement. The coil cart includes sufficient vertical travel to contact the lower surface of the mandrel when fully extended. The power coil car moves along rails installed in the base of the uncoiler. Hydraulic check valve prevents vertical coil drop in the event of loss of hydraulic pressure.
(7) Installation of the uncoiler and the roll car can be installed by placing on a typical industrial concrete foundation and drilling holes on the concrete expansion bolts.
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A:We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service.
