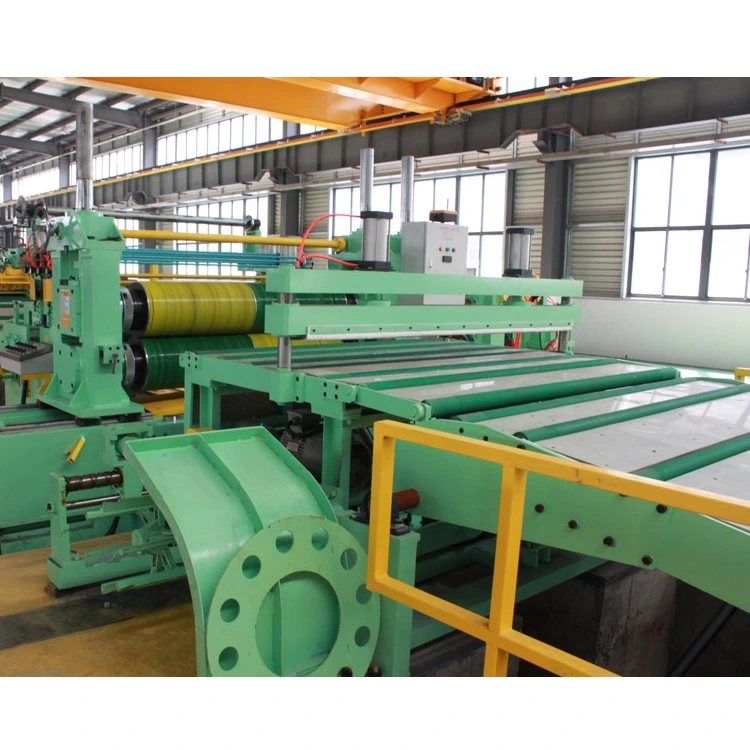

Coil Cut To Length Machines

Brand:
Tengdi Machinery
Model Number:
4000 coil slitting machine
Lead Time:
Est. Time(days)60
Customization:
Comprehensive scheme customization of equipment
Service:
1 Year warranty
SKU:
Availability:

Are you searching for a top-tier cross-cutting line renowned for its exceptional performance?


Look no further than Tengdi Machinery, a premier manufacturer of cross-cutting production lines. Explore collaboration possibilities with us. Tengdi offers a diverse range of crosscutting machines tailored to meet your specific needs. Rest assured, we'll ensure you receive the crosscutting line option that perfectly aligns with your requirements. At Tengdi, our team of skilled experts brings years of experience to the table, guaranteeing the highest standard of workmanship in all our endeavors.


Quick Details
Cutting Width (mm): 1000 - 4000mm Material Thickness(mm): 3 - 12 mm
Cutting Speed(m/min): 1 - 40 m/min Coil Weight (T): 30T
Leveling Precision(±mm/m): 1.5 ±mm/m Voltage: 380v
Rated Power: 300KW Dimension(L*W*H): 28X8X2m
Weight: 5000 Coil Thickness: 2-8mm
Coil width: 1000-4000mm Coil weight: max 30T
Total line power consumption: 300KW Total weight: 50T
Line Speed: 40m/min Cutting length: 2000mm-12000mm
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pu

Technical Parameters


Type 3×1600 6×2000 8×2000 10×2200 12×2200 16×2200 20×2500 25×2500
Thickness Range(mm) 0.3-3 1-6 2-8 2-10 3-12 4-16 6-20 8-25
Width Range(mm) 1600 2000 2000 2200 2200 2200 2500 2500
Cutting Length(mm) 300-4000 500-6000 600-8000 600-10000 800-12000 800-12000 800-12000 800-12000
Cutting precision(mm) ±0.5 ±0.5 ±1 ±1 ±1 ±1 ±1 ±1
Roller Numbers 15 15 13 13 11 11 9 9
Roller Diameter(mm) Ф85 Ф140 Ф155 Ф160 Ф180 Ф200 Ф230 Ф260


Flow chart and product unit



coil cutting lin

Packaging and delivery
Shipping by TENGDI
Exhibition photos

Tendi Exhibition

Certificate

Tendi certificate
