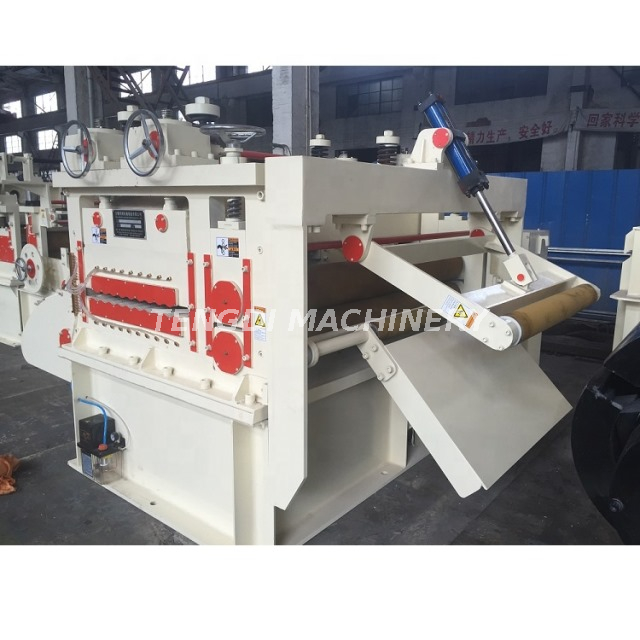

Are you looking for a high-quality cross-cutting line with outstanding performance?
Tengdi Machinery is an excellent manufacturer of cross-cutting production lines, and can explore cooperation with us. Tendi offers a wide selection of crosscutting machines designed to meet your unique requirements. We can be sure that you will get the crosscutting line option that best suits your needs. Tendi works with skilled experts who contribute their years of experience and guarantee that all of our work is of the highest standard.
Cutting Width (mm): | 500 - 2000 mm | Material Thickness(mm): | 3 - 12 mm |
Cutting Speed(m/min): | 1 - 40 m/min | Coil Weight (T): | 30T |
Leveling Precision(±mm/m): | 1.5 ±mm/m | Voltage: | 380v |
Rated Power: | 300KW | Dimension(L*W*H): | 28X8X2m |
Weight: | 5000 | Coil Thickness: | 2-8mm |
Coil width: | 800-2000mm | Coil weight: | max 30T |
Total line power consumption: | 300KW | Total weight: | 50T |
Line Speed: | 40m/min | Cutting length: | 2000mm-12000mm |
Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pu |
Type | 3×1600 | 6×2000 | 8×2000 | 10×2200 | 12×2200 | 16×2200 | 20×2500 | 25×2500 |
Thickness Range(mm) | 0.3-3 | 1-6 | 2-8 | 2-10 | 3-12 | 4-16 | 6-20 | 8-25 |
Width Range(mm) | 1600 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 |
Cutting Length(mm) | 300-4000 | 500-6000 | 600-8000 | 600-10000 | 800-12000 | 800-12000 | 800-12000 | 800-12000 |
Cutting precision(mm) | ±0.5 | ±0.5 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
Roller Numbers | 15 | 15 | 13 | 13 | 11 | 11 | 9 | 9 |
Roller Diameter(mm) | Ф85 | Ф140 | Ф155 | Ф160 | Ф180 | Ф200 | Ф230 | Ф260 |
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service
Q: How about your service?
A:Our services include:
(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!
(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.
(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
