Are you looking for a high-quality cross-cutting line with outstanding performance?
The production line is better than the industry's high-profile cross-cutting production line configuration, with the main functions of uncoiling, leveling, feeding, sizing, cross-cutting, stacking/stacking, etc. Its main working equipment includes feeding trolley, uncoiler, pre-calibration machine, leveling machine and power, pinch device, coding and sizing device, shearing machine, conveyor, pneumatic discharge, discharge table, hydraulic system, electrical appliances system, etc. The production line adopts PARKER, Siemens, Schneider, etc. as the leading brands. The control system configuration is high, and the whole line has strong functions. It can not only meet the technical requirements of the standard cutting production line, but also show the production strength of the enterprise.
The production line is controlled by PLC numerical control system, and the length is controlled by DC motor and rotary encoder. Users can input data on the PLC system man-machine interface according to the order quantity, length and speed. When the cutting quantity is reached, the equipment will automatically stop . The production line can be adjusted, with accurate measurement, full automatic operation, simple operation, strong operability and excellent cost performance.
| Cutting Width (mm): | 500 - 2000 mm | Material Thickness(mm): | 2 - 8 mm |
| Cutting Speed(m/min): | 1 - 40 m/min | Coil Weight (T): | 30T |
| Leveling Precision(±mm/m): | 1.5 ±mm/m | Voltage: | 380v |
| Rated Power: | 300KW | Dimension(L*W*H): | 28X8X2m |
| Weight: | 5000 | Coil Thickness: | 2-8mm |
| Coil width: | 800-2000mm | Coil weight: | max 30T |
| Total line power consumption: | 300KW | Total weight: | 50T |
| Line Speed: | 40m/min | Cutting length: | 2000mm-12000mm |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pu | ||
Description&Function

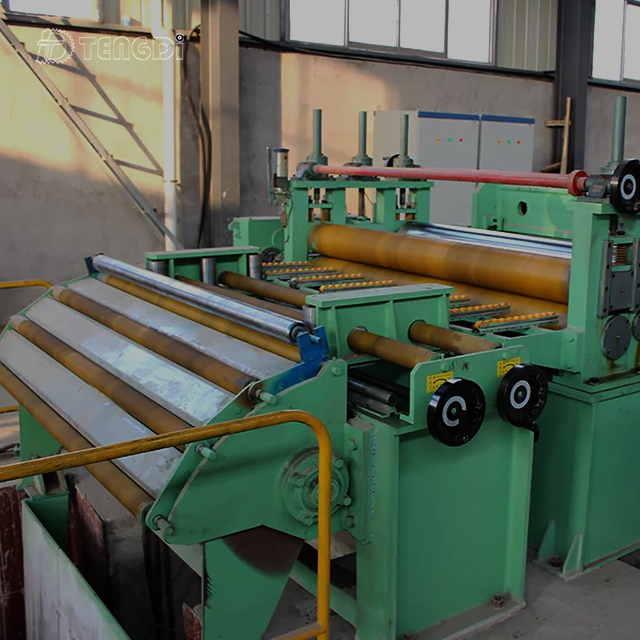

1.What is Cut To Length Machine The Cut To Length Machine also called cut to length line which are used for uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils etc into different width according to the users production demands and cut as well
2.Function This equipment through the procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device, transition, and conveyor, etc.
3.Category According to the metal materials there are stainless steel cut to length machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on. According to its electronic control mode there are pneumatic cut to length line,NC cut to length line and etc.
| Type | 3×1600 | 6×2000 | 8×2000 | 10×2200 | 12×2200 | 16×2200 | 20×2500 | 25×2500 |
| Thickness Range(mm) | 0.3-3 | 1-6 | 2-8 | 2-10 | 3-12 | 4-16 | 6-20 | 8-25 |
| Width Range(mm) | 1600 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 |
| Cutting Length(mm) | 300-4000 | 500-6000 | 600-8000 | 600-10000 | 800-12000 | 800-12000 | 800-12000 | 800-12000 |
| Cutting precision(mm) | ±0.5 | ±0.5 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Roller Numbers | 15 | 15 | 13 | 13 | 11 | 11 | 9 | 9 |
| Roller Diameter(mm) | Ф85 | Ф140 | Ф155 | Ф160 | Ф180 | Ф200 | Ф230 | Ф260 |
| item | specifications | |
| Raw materials | Materials feature: | HR YS 450 TS 350 |
| thickness: | 2.0mm-8.0mm | |
| width: | 800mm-2000mm | |
| O.D: | Φ1000mm-φ2150mm | |
| I.D: | φ500mm-φ800mm | |
| Coil weight: | Max 30T | |
| Finished product | Cutting length: | 2000mm-12000mm |
| Cutting tolerance: | ±1.5mm( length tolerance) ±2.0mm( diagonal tolerance) Match the standard GB/T709-88 | |
| Leveling speed | 0-40m/min | |
| Max cutting thickness | 12mm | |
| Center line of the line ( to the ground) | 800mm | |

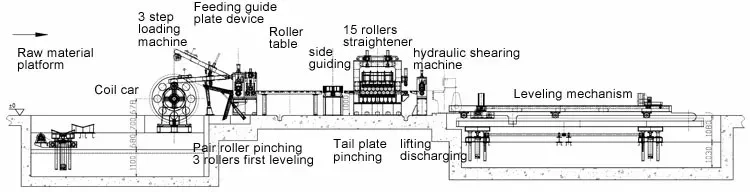

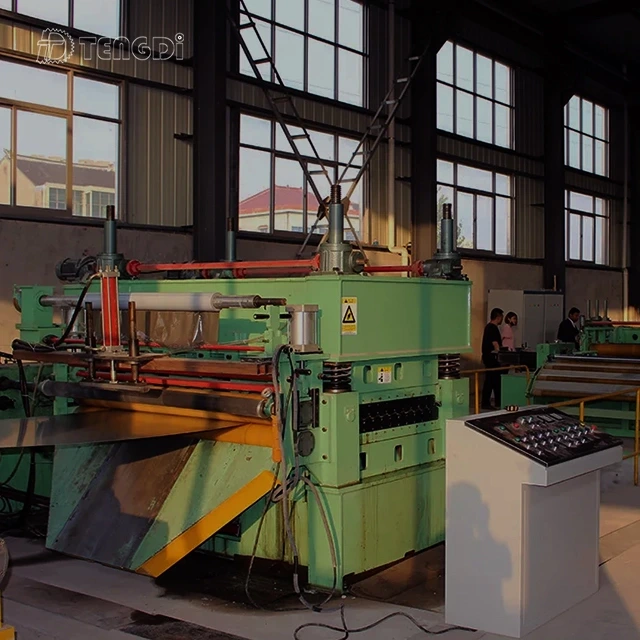

Standard Flow chart of cut to length machine:
Coil lifter --- hydraulic decoiler --- snubber roller --- pinch roll & pre-leveler --- loop bridge --- side guide roller --- main leveling machine --- encode & measuring device (with tail plate pinching) --- shear --- conveyor --- hydraulic lift platform --- stacker with blower device --- unload cart
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A:We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service
Q: How about your service?
A:Our services include:
(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!
(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.
(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
Are you looking for a high-quality cross-cutting line with outstanding performance?
The production line is better than the industry's high-profile cross-cutting production line configuration, with the main functions of uncoiling, leveling, feeding, sizing, cross-cutting, stacking/stacking, etc. Its main working equipment includes feeding trolley, uncoiler, pre-calibration machine, leveling machine and power, pinch device, coding and sizing device, shearing machine, conveyor, pneumatic discharge, discharge table, hydraulic system, electrical appliances system, etc. The production line adopts PARKER, Siemens, Schneider, etc. as the leading brands. The control system configuration is high, and the whole line has strong functions. It can not only meet the technical requirements of the standard cutting production line, but also show the production strength of the enterprise.
The production line is controlled by PLC numerical control system, and the length is controlled by DC motor and rotary encoder. Users can input data on the PLC system man-machine interface according to the order quantity, length and speed. When the cutting quantity is reached, the equipment will automatically stop . The production line can be adjusted, with accurate measurement, full automatic operation, simple operation, strong operability and excellent cost performance.
| Cutting Width (mm): | 500 - 2000 mm | Material Thickness(mm): | 2 - 8 mm |
| Cutting Speed(m/min): | 1 - 40 m/min | Coil Weight (T): | 30T |
| Leveling Precision(±mm/m): | 1.5 ±mm/m | Voltage: | 380v |
| Rated Power: | 300KW | Dimension(L*W*H): | 28X8X2m |
| Weight: | 5000 | Coil Thickness: | 2-8mm |
| Coil width: | 800-2000mm | Coil weight: | max 30T |
| Total line power consumption: | 300KW | Total weight: | 50T |
| Line Speed: | 40m/min | Cutting length: | 2000mm-12000mm |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pu | ||
Description&Function
1.What is Cut To Length Machine The Cut To Length Machine also called cut to length line which are used for uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils etc into different width according to the users production demands and cut as well
2.Function This equipment through the procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device, transition, and conveyor, etc.
3.Category According to the metal materials there are stainless steel cut to length machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on. According to its electronic control mode there are pneumatic cut to length line,NC cut to length line and etc.
| Type | 3×1600 | 6×2000 | 8×2000 | 10×2200 | 12×2200 | 16×2200 | 20×2500 | 25×2500 |
| Thickness Range(mm) | 0.3-3 | 1-6 | 2-8 | 2-10 | 3-12 | 4-16 | 6-20 | 8-25 |
| Width Range(mm) | 1600 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 |
| Cutting Length(mm) | 300-4000 | 500-6000 | 600-8000 | 600-10000 | 800-12000 | 800-12000 | 800-12000 | 800-12000 |
| Cutting precision(mm) | ±0.5 | ±0.5 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| Roller Numbers | 15 | 15 | 13 | 13 | 11 | 11 | 9 | 9 |
| Roller Diameter(mm) | Ф85 | Ф140 | Ф155 | Ф160 | Ф180 | Ф200 | Ф230 | Ф260 |
| item | specifications | |
| Raw materials | Materials feature: | HR YS 450 TS 350 |
| thickness: | 2.0mm-8.0mm | |
| width: | 800mm-2000mm | |
| O.D: | Φ1000mm-φ2150mm | |
| I.D: | φ500mm-φ800mm | |
| Coil weight: | Max 30T | |
| Finished product | Cutting length: | 2000mm-12000mm |
| Cutting tolerance: | ±1.5mm( length tolerance) ±2.0mm( diagonal tolerance) Match the standard GB/T709-88 | |
| Leveling speed | 0-40m/min | |
| Max cutting thickness | 12mm | |
| Center line of the line ( to the ground) | 800mm | |
Standard Flow chart of cut to length machine:
Coil lifter --- hydraulic decoiler --- snubber roller --- pinch roll & pre-leveler --- loop bridge --- side guide roller --- main leveling machine --- encode & measuring device (with tail plate pinching) --- shear --- conveyor --- hydraulic lift platform --- stacker with blower device --- unload cart
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A:We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service
Q: How about your service?
A:Our services include:
(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!
(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.
(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
