TENGDI is the top tube mill manufacturer in China.

 Automatic Stainless Steel Tube Pipe Straightening Machine 1
 Automatic Stainless Steel Tube Pipe Straightening Machine 2
 Automatic Stainless Steel Tube Pipe Straightening Machine 3
 Automatic Stainless Steel Tube Pipe Straightening Machine 4
 Automatic Stainless Steel Tube Pipe Straightening Machine 5
 Automatic Stainless Steel Tube Pipe Straightening Machine 6
 Automatic Stainless Steel Tube Pipe Straightening Machine 1
 Automatic Stainless Steel Tube Pipe Straightening Machine 2
 Automatic Stainless Steel Tube Pipe Straightening Machine 3
 Automatic Stainless Steel Tube Pipe Straightening Machine 4
 Automatic Stainless Steel Tube Pipe Straightening Machine 5
 Automatic Stainless Steel Tube Pipe Straightening Machine 6

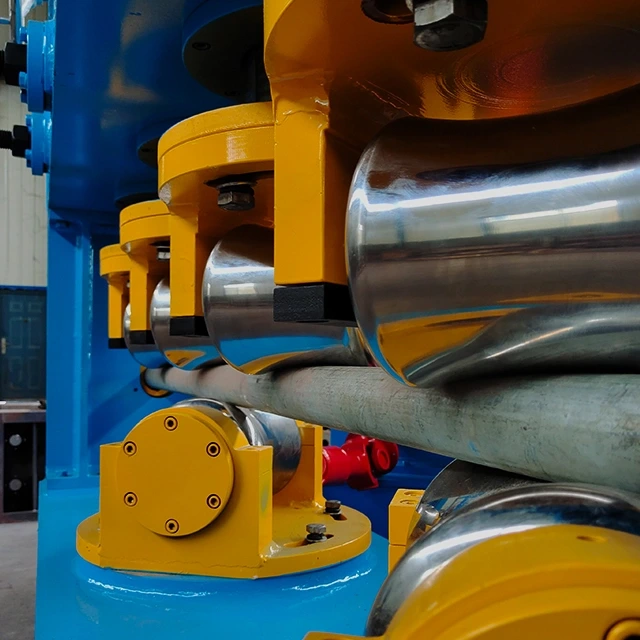

Automatic Stainless Steel Tube Pipe Straightening Machine

Brand:Tengdi Machinery
Model Number:
Steel Tube Straightener
Lead Time:
Est. Time(days) 60
Customization:
Comprehensive scheme customization of equipment
Service:
1 Year warranty

    oops...!

    no product data.

    Go to homepage

    Are you looking for a high-quality steel pipe straightener with excellent performance?

    Steel pipe straightening machine is a brand series product of our company. This series of products is suitable for high-grade petroleum steel pipe units, ordinary fluid pipe units and cold-formed steel units, etc., and complies with API-5L, API-5CT, BS1387-85, ASTM, GB9711 and other standards.

    Tengdi offers a wide selection of steel pipe straighteners designed to meet your unique requirements. We can be sure that you will get the steel pipe line option that best suits your needs. Tendi works with skilled experts who contribute their years of experience and guarantee that all of our work is of the highest standard.


    Quick Details

    Core Components: PLC, Engine Voltage: 220v/380V/440V
    Power: 5.5KW Dimension(L*W*H): as customer require
    Key Selling Points: High Productivity Application: Pipe Mill
    lifetime: More than 10 years Function: Straighten Metal Pipes
    Roller material: High Grade 45# Steel Usage: Straightening the steel tubes
    Type: Straightener & Cutter, Straightener & Cutter

    After-sales Service Provided:

    Engineers available to service machinery overseas, Field installation, comm



    Product Parameter
    Product&yield
    Pipe diameter
    20mm - 720mm
    Wall thickness
    0.3 mm—22.0mm (material 195, 235, 355B)
    Pipe length
    4.0m—12.0m
    Max.steel grade
    Q345(YS=345mpa),Q355(YS=355mpa)
    Straightening speed
    100 m/min
    Tolerance
    Allowable bending before correction
    ≤2 per cent
    After straightening
    0 . 5 mm/m, pipe bending shall not exceed 0 . 1 5 % of the total length
    Successful Cases

    TENGDI-Shipping

    Overview

    TENGDI-Exhibition

    Exhibition photos

    TENGDI-Certificate

    QFA

    Q: Are you manufacturer?

    A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.


    Q: What payment terms do you accept?

    A: We are flexible on payment terms, please contact us for details!


    Q: What info you need before you make the proposal?

    A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.


    Q: How do you do QA?

    A:We have special team do strict QA, this is our strengths:

    (1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

    (2)Every shaft will be inspected for the centering jumpiness.

    (3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.


    Q: Why choose you? What is the difference between you and other Chinese supplier?

    A: You can get higher quality product & better professional service from TENGDI with same price.


    Q: What I should do if just start a new business?

    A: Contact us immediately, we provide free consultant pre-sales service


    Q: How about your service?

    A:Our services include:

    (1)Warranty is one year, Any parts damaged during warranty will be replaced for free!

    (2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.

    (3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
