Are you looking for a high-quality steel pipe straightener with excellent performance?

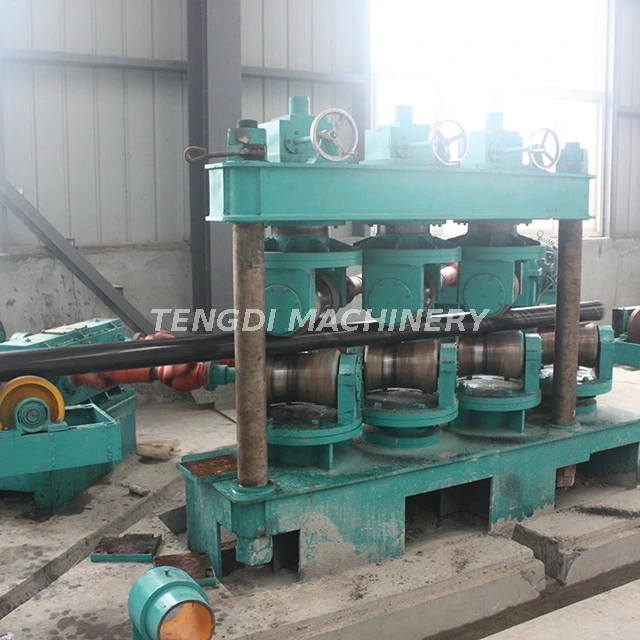

This machine is a vertical steel pipe rod straightening machine with horizontal cross arrangement of straightening rollers and two-way full drive. There are no defects such as spiral indentation and scratches on the surface of the correction material, and the ellipticity of the section can be improved.
Vertical steel pipe straightening machine is a device for straightening metal profiles, bars, pipes, wires, etc. The vertical steel pipe straightening machine uses the straightening roller to squeeze the bar and so on to change the straightness. Generally, there are two rows of straightening rollers, the number of which varies. There are also two-roll straightening machines, which rely on the angle change of the two rolls (concave in the middle, hyperbolic roll) to straighten materials of different diameters. The main types are pressure straightening machine, balance roller straightening machine, shoe roller straightening machine, rotary reverse bending straightening machine, etc.
| Core Components: | PLC, Engine | Voltage: | 220v/380V/440V |
| Power: | 5.5KW | Dimension(L*W*H): | as customer require |
| Key Selling Points: | High Productivity | Application: | Pipe Mill |
| lifetime: | More than 10 years | Function: | Straighten Metal Pipes |
| Roller material: | High Grade 45# Steel | Usage: | Straightening the steel tubes |
| Type: | Straightener & Cutter, Straightener & Cutter | ||
After-sales Service Provided: | Engineers available to service machinery overseas, Field installation, comm | ||
| Product&yield | Pipe diameter | 20mm - 720mm |
| Wall thickness | 0.3 mm—22.0mm (material 195, 235, 355B) | |
| Pipe length | 4.0m—12.0m | |
| Max.steel grade | Q345(YS=345mpa),Q355(YS=355mpa) | |
| Straightening speed | 100 m/min | |
| Tolerance | Allowable bending before correction | ≤2 per cent |
| After straightening | 0.5 mm/m, pipe bending shall not exceed 0.1 5 % of the total length |
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A:We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service
Q: How about your service?
A:Our services include:
(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!
(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.
(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
