Are you looking for a high-quality automatic flat head chamfering machine with excellent performance?
Tengdi Machinery is an excellent steel pipe manufacturing machinery manufacturer, we can discuss cooperation with us. Tendi offers a wide range of automatic flat head chamfering machines designed to meet your unique requirements. We can be sure that you will get the automatic flat head chamfering machine option that best suits your needs. Tendi works with skilled experts who contribute their years of experience and guarantee that all our work is of the highest standard.
Steel pipe outside diameter | Φ114~Φ325 mm |
Steel pipe length | 6~12.5 m |
Steel pipe wall thickness | 2-12.7mm |
Steel pipe straightness | 0.1%L |
Steel pipe ellipticity | 1.0%D(max) |
Steel pipe outside diameter deviation | ±1mm |
Condition of the end face of the steel pipe | The inner and outer circles are flat within 150mm of the pipe end, and the positive deviation is not more than 0.5mm |
Pipe end bevel | Determined according to specific process parameters (30°) |
blunt edge size | ≥1.6±0.8 mm |
Pipe end bevel | ≤1.6mm |
chamfering | Single |
Executive standard | API 5L GB/T9711.1 GB/T9711.2 |
Productivity | 60~100 pieces/hour |

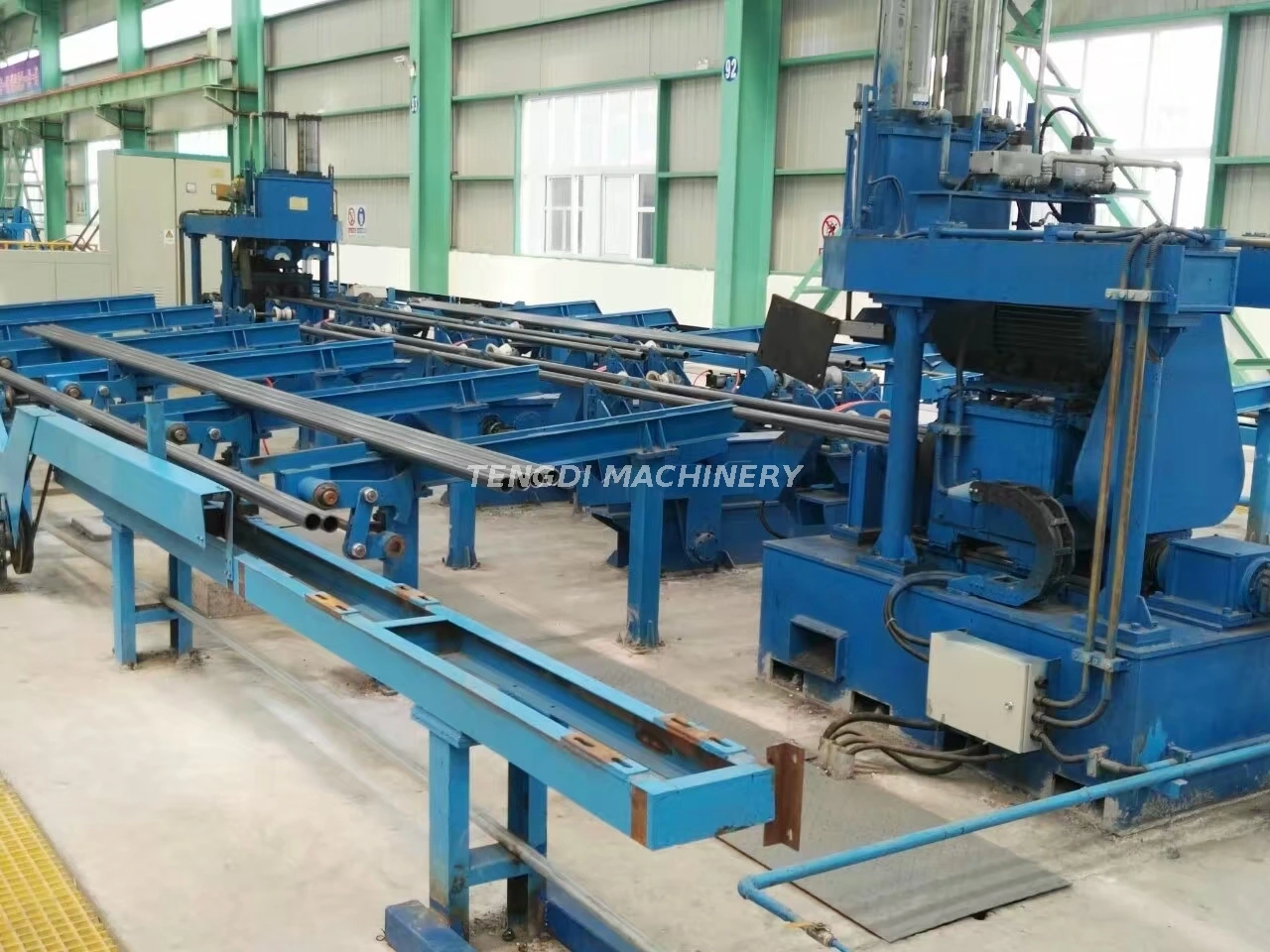

The equipment is mainly used for the diameter range in Ø114-325mm straight seam welded steel pipe within the tube end chamfering head.The end facer machine adopts mature and reliable international advanced technology. Product quality, production cost, various consumption indicators and labor productivity meet the requirements of product process and efficiency.
Ambient temperature (indoor) | 5~ +40℃ |
environment humidity | ≤90% |
Supply voltage | 380V ±10%(TN-C-S系统) |
frequency | 50 Hz ±1% |
control voltage | 220 VAC / 24 VDC |
compressed air | 0.4~0.6Mpa |
Noise when the equipment is working | <85dB |
cooling water pressure | 0.3-0.6MPa (T.O.P) |
compressed air | 0.4~0.6Mpa |
Noise when the equipment is working | <85dB |
cooling water pressure | 0.3-0.6MPa (T.O.P) |
Cooling water PH value | 7-8 |
cooling water suspension | 50-100 mg/L |
Cooling water hardness | 7-110dH |
cooling water particle | Max. 0.06 mm |
Cooling water sulfate content | <400 mg/L |
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service
Q: How about your service?
A:Our services include:
(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!
(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.
(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
