0.3-2.0*900mm Stainless Steel Coil Cut to Length Machine

Brand:Tengdi Machinery
Customization:
Comprehensive scheme customization of equipment
Service:
1 year warranty
SKU:
Availability:

Are you looking for a high-quality cross-cutting line with outstanding performance?

In the field of shearing equipment, compared with other types of cross-cutting machine production lines, the biggest advantage of the TENGDI brand cross-cutting machine production line lies in its cutting accuracy and speed. Its cutting accuracy reaches ±0.15mm, and its fastest cutting The speed reaches 100m/min, so it can greatly improve the production efficiency and ensure the quality of shearing. TENGDI cross-cutting machine production line integrates energy saving, high efficiency and stability, and has been widely used in automobile manufacturing, home appliances, hardware, metallurgy and other manufacturing industries.


Product description

Description&Function

1.What is Cut To Length Machine The Cut To Length Machine also called cut to length line which are used for uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils etc into different width according to the users production demands and cut as well

2.Function This equipment through the procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device, transition, and conveyor, etc.

3.Category According to the metal materials there are stainless steel cut to length machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on. According to its electronic control mode there are pneumatic cut to length line,NC cut to length line and etc.

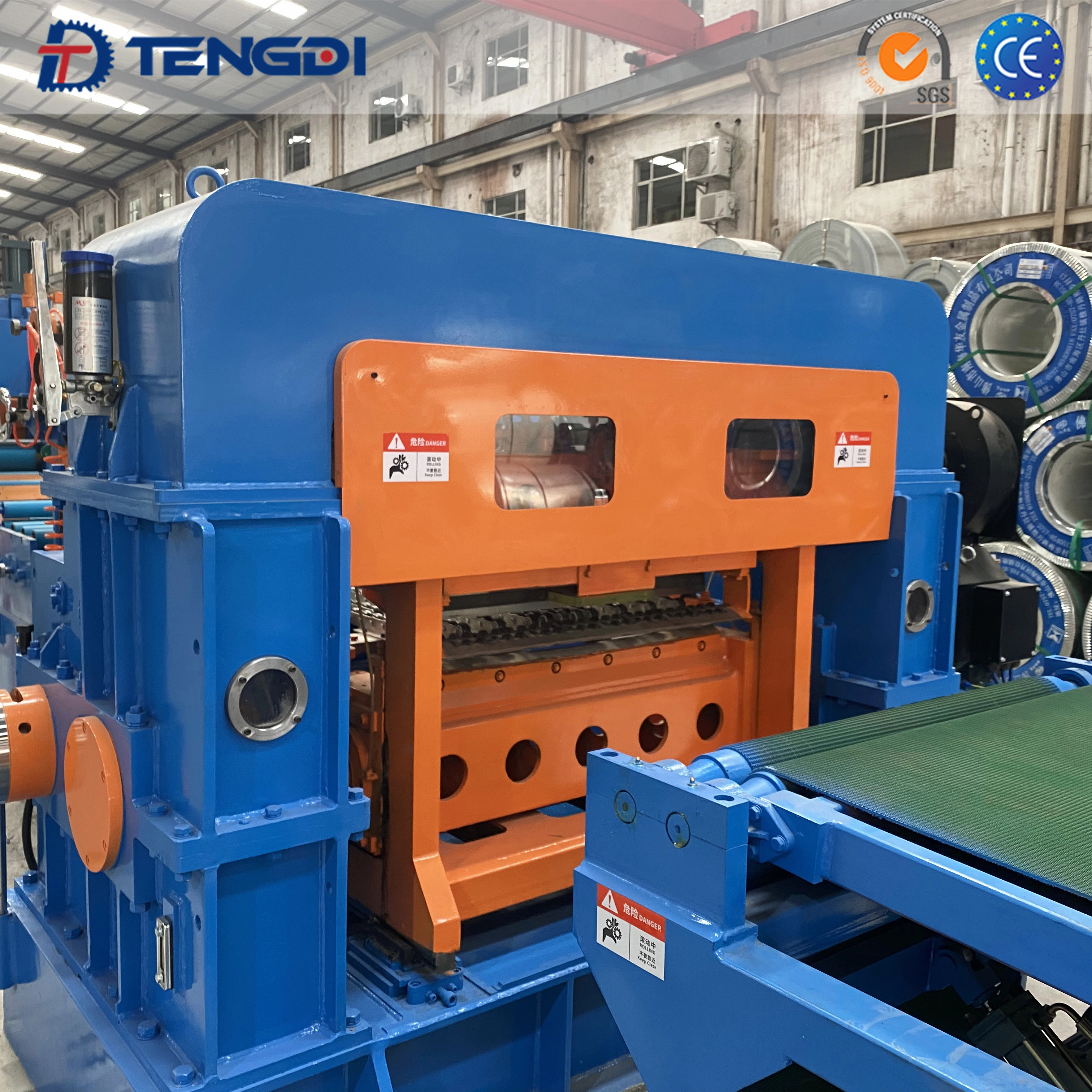

cut to length

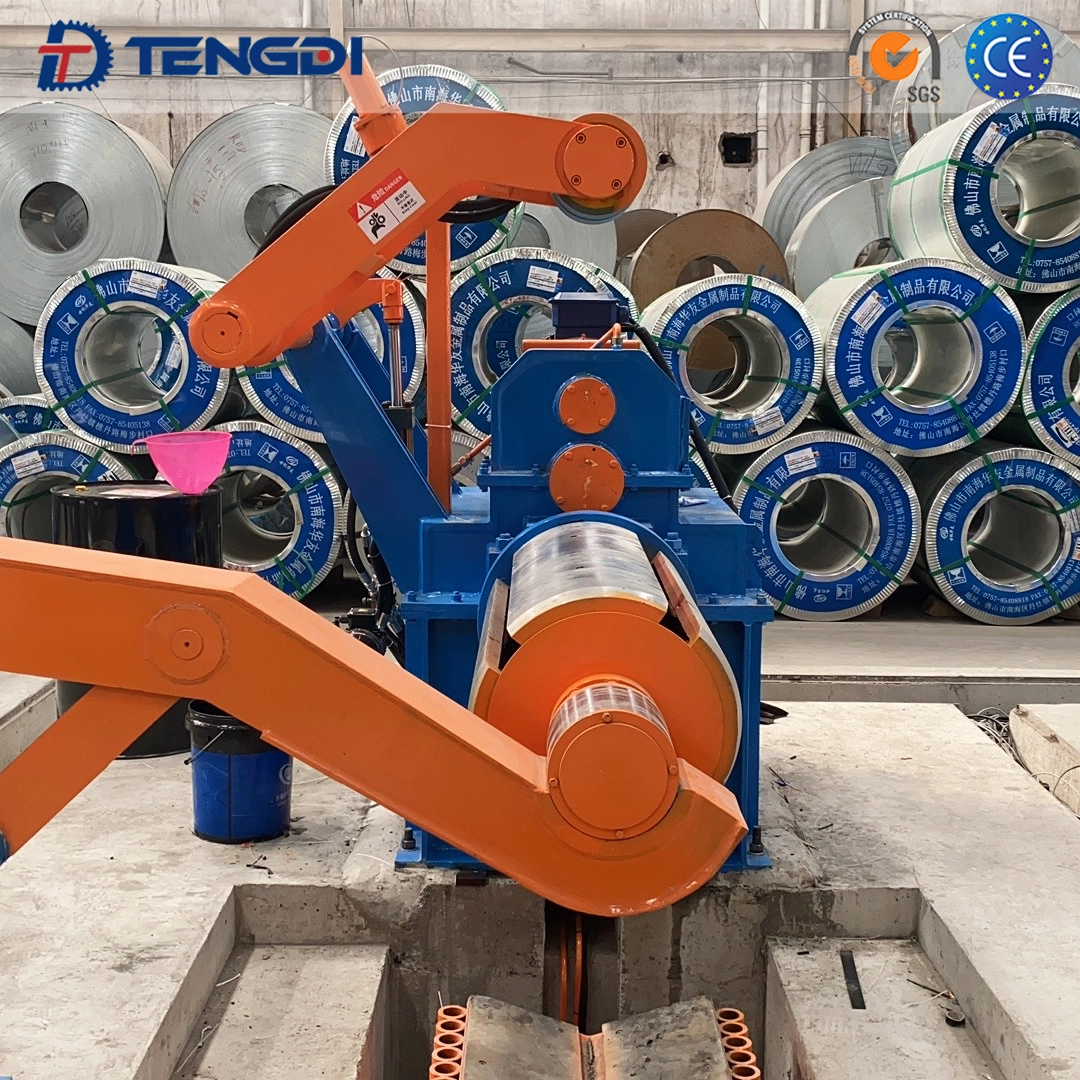

cut to length

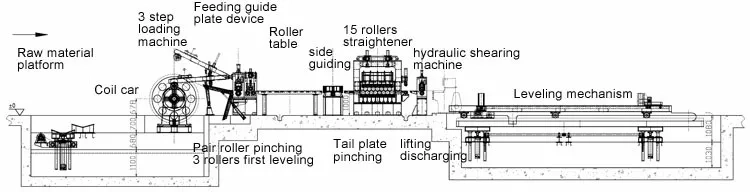

Flow Chart

Standard Flow chart of cut to length machine:

Coil lifter --- hydraulic decoiler --- snubber roller --- pinch roll & pre-leveler --- loop bridge --- side guide roller --- main leveling machine --- encode & measuring device (with tail plate pinching) --- shear --- conveyor --- hydraulic lift platform --- stacker with blower device --- unload cart

          cut to length


Packaging and delivery

    TENGDI-Shipping

Exhibition photos

TENGDI-Exhibition

Certificate

TENGDI-Certificate

QFA

Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.


Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!


Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.


Q: How do you do QA?

A:We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.


Q: Why choose you? What is the difference between you and other Chinese supplier?

A: You can get higher quality product & better professional service from TENGDI with same price.


Q: What I should do if just start a new business?

A: Contact us immediately, we provide free consultant pre-sales service


Q: How about your service?

A:Our services include:

(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!

(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.

(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
