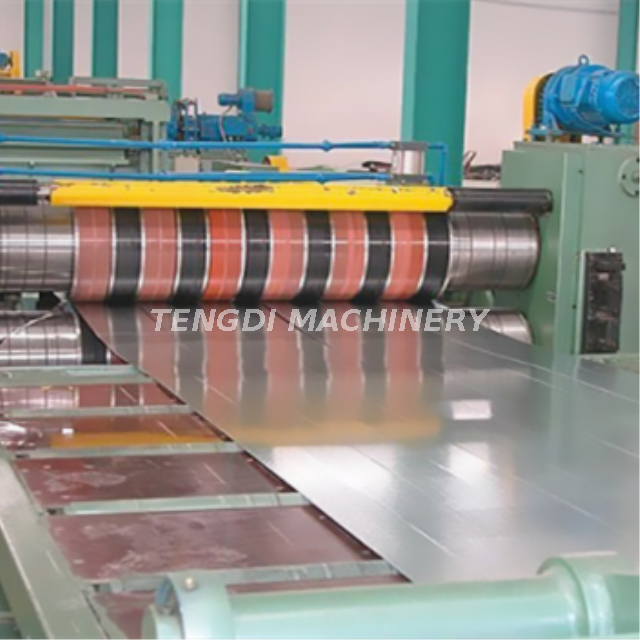

Steel Coil Slitting Machine

Brand:
Tengdi Machinery
Model Number:
600 coil slitting machine
Lead Time:
Est. Time(days) 90
Customization:
Comprehensive scheme customization of equipment
Service:
1 year warranty
SKU:
Availability:
Overview

Are you looking for high-quality steel pipe making machine that will provide exceptional performance?

Tengdi Machinery is an excellent steel pipe making machine manufacturer with whom to explore collaborating.  Tengdi provide a large selection of various steel pipe making machine choices that are intended to meet your unique requirements. We can be sure that you will get the finest steel pipe making line option for your needs. Tengdi collaborate with skilled specialists who contribute their years of experience and guarantee that all of our works meet the highest standards.


Cutting Width (mm): 100 - 400 mm Material Thickness(mm): 0.2 - 2 mm
Cutting Speed(m/min): 1 - 100 mm Voltage: 380V
Dimension(L*W*H): 13*4m Rated Power: 50KW
Weight: 3T Plate thickness: 0.2-2.0mm
Plate Width: 100-400mm Slitting Speed: 0-100
Installation: 13*4m Capacity: 50KW


Technical Parameters
 Model Sheet thickness (mm)  Coil Width(mm)  No.of Slitting (mm/m)  Line Speed(m/min) Coil Weight(Tons)Max
1*650       0.2-1   150-650      30-8   ±0.05      0-120     3、5
1*850       0.2-1   300-850      30-8   ±0.05      0-120     5、10
1*1050       0.2-1   300-1050      30-8   ±0.05      0-120     5、10
1*1300       0.2-1   400-1300      30-8   ±0.05      0-120     10、15
2*650       0.3-2   150-650      30-8   ±0.05      0-120     3、5
2*850       0.3-2   300-850      30-8   ±0.05      0-120     5、10
2*1050       0.3-2   300-1050      30-8   ±0.05      0-120     5、10
2*1300       0.3-2   400-1300      30-8   ±0.05      0-120     10、15
2*1600       0.3-2   400-1600      30-8   ±0.05      0-120     15、20
2*2000       0.3-2   500-2000      30-8   ±0.05      0-120     15、20
3*1300       0.4-3   400-1300      30-6   ±0.05      0-120     10、15
3*1600       0.4-3   400-1600      30-6   ±0.05      0-120     15、20
3*2000       0.4-3   500-2000      30-6   ±0.05      0-120     15、20
4*1300       0.5-4   400-1300      30-6   ±0.05      0-120     10、15
4*1600       0.5-4   400-1600      30-6   ±0.05      0-120     15、20
4*2000       0.5-4   500-2000      30-6   ±0.05      0-120     15、20
6*1600       0.6-6   400-1600      30-5   ±0.05      0-120     15、20
6*2000       0.6-6   500-2000      30-5   ±0.05      0-120     15、20

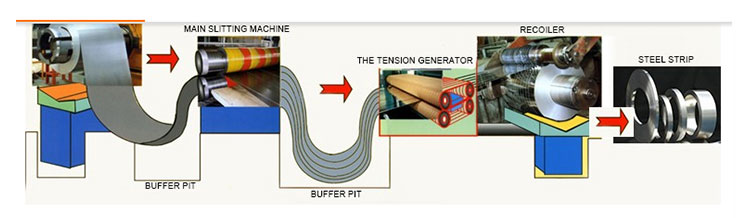

Flow chart and product unit

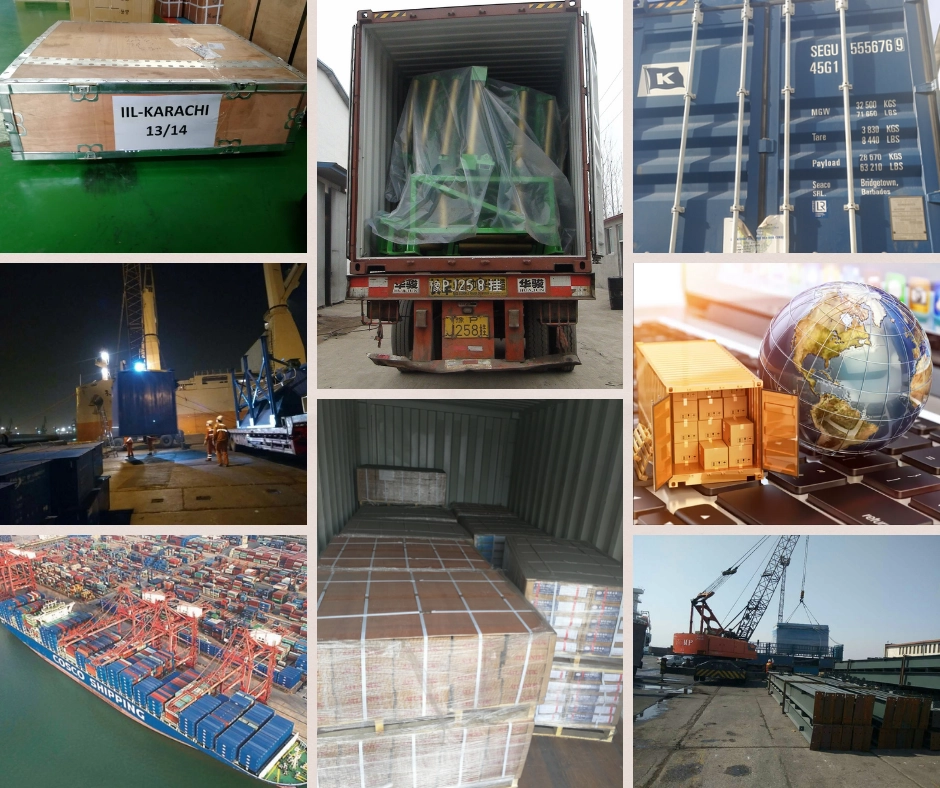

Packaging and delivery

30% (1)

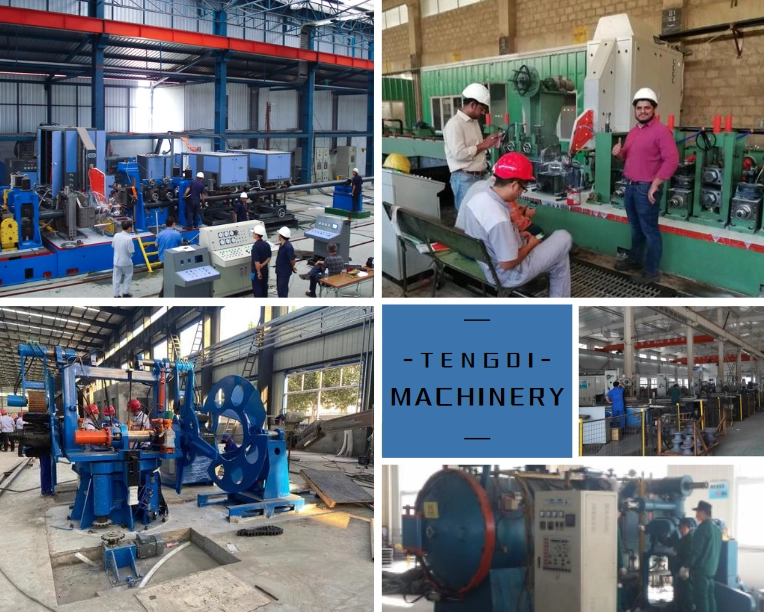

Processing capacity

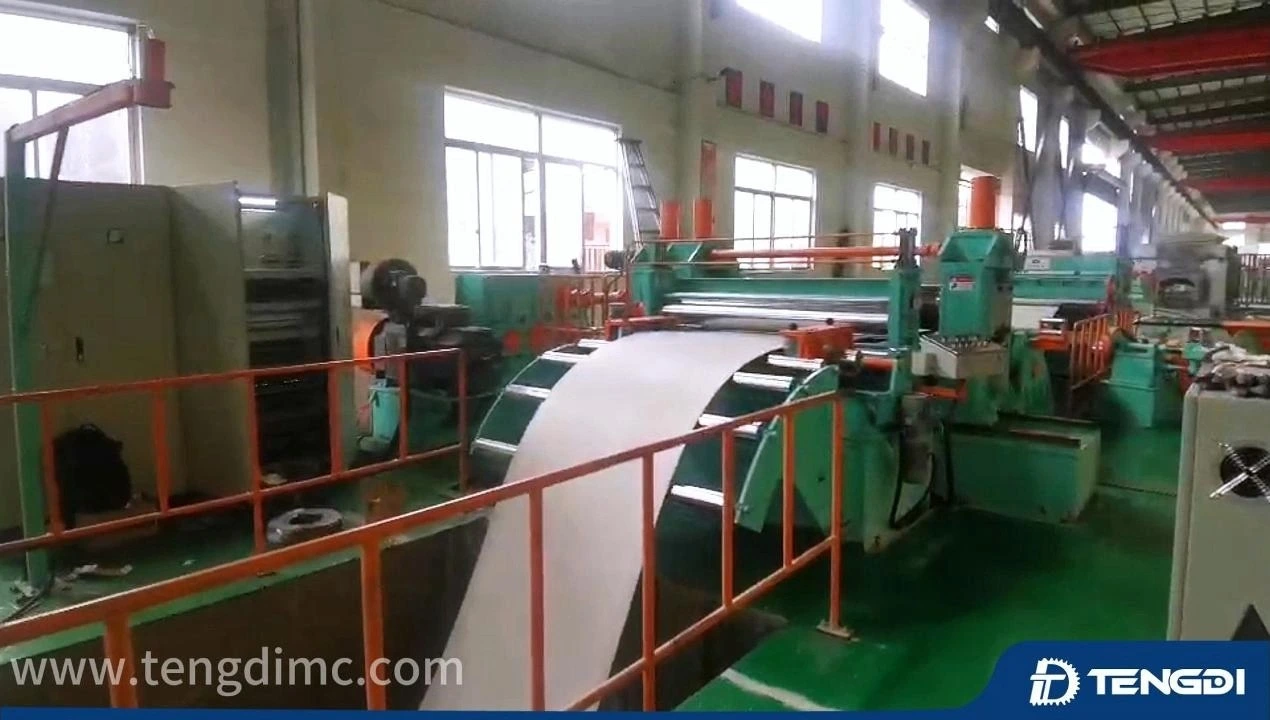

工厂调试

Exhibition photos

Certificate

QFA

Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.

Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!

Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.

Q: How do you do QA?

A: We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions,

Q: Why choose you? What is the difference between you and other Chinese supplier?

A: You can get higher quality product & better professional service from TENGDI with same price.

Q: What I should do if just start a new business?

A: Contact us immediately, we provide free consultant pre-sales service

Q: How about your service?

A:Our services include:

(1) Warranty is one year, Any parts damaged during warranty will be replaced for free!

(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.

(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
