Advantage:
1. The anti-collision mechanism consists of a rubber bumper and an anti-rebound device. When the saw truck fails unexpectedly, the pinion disengages from the rack and the saw truck hits the rubber bumper. At the same time, the hook on the saw car just hooks the anti-rebound pin, the anti-collision block and the anti-bolt pin work together, and the saw car will temporarily stop on the right side to avoid damage to the pinion due to the violent collision between the rebound pinion and the rack.

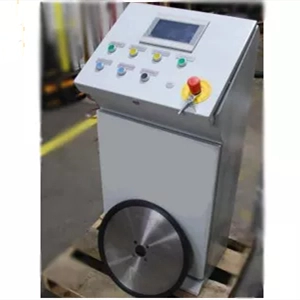

2. In order to meet the needs of different customers, our control system is: Siemens-Simmons system: specially used for high-speed motion controller, composed of Simmons D4x5 central controller, S120 servo drive, 1FK(T)7 synchronous permanent magnet motor , ProfiNet Industrial Ethernet and other components.
3. Based on rich experience, using top-level high-performance ARM chips, the main frequency is up to 100 MHz. The pipe length and mill running speed can be calculated most accurately.
4. High-quality speed measuring encoder: Aogang adopts Japanese high-quality waterproof and dustproof encoder, which can independently bear 5 kg (radial) and 3 kg (axial) external force. After collecting information from customers, the failure rate in the production process is less than 2%, which reduces the downtime of welded pipe equipment.
Type: | Pipe Cutting Machine | Pipe Material: | Carbon steel |
Place of Origin: | Hebei, China | Production Capacity: | 50-80m/min |
Voltage: | 380V/Customized, Customized | Power: | 20-50kw, 20 - 50Kw |
Weight: | 4600KG | Key Selling Points: | High-accuracy, High Productivity |
Name: | Steel Pipe Cutting Saw | Pipe shape: | Round/Square/Rectangle Pipe |
Pipe length: | Customized | MOQ: | 1 Set |
After-sales Service Provided: | Online support, Field installation, commissioning and training, Field main |
Equipment size: | 5600*1800*1400mm | Wall thickness | 0.8-4.0mm |
Drag motor: | 15KW servo (Yaskawa) | Feed motor: | 4.4KW servo (Yaskawa) |
Sawing motor: | 22KW AC motor with frequency conversion | Feeding method: | Servo multi-speed feed |
Maximum speed: | 80 m/min | Fixtures: | 3 groups |
Step Up Power: | Pneumatic | Energy chain: | plastic energy chain |

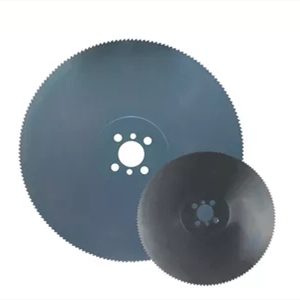

Saw blade: | high speed steel, diameter 500mm | Saw travel (rack length): | 4 meters |

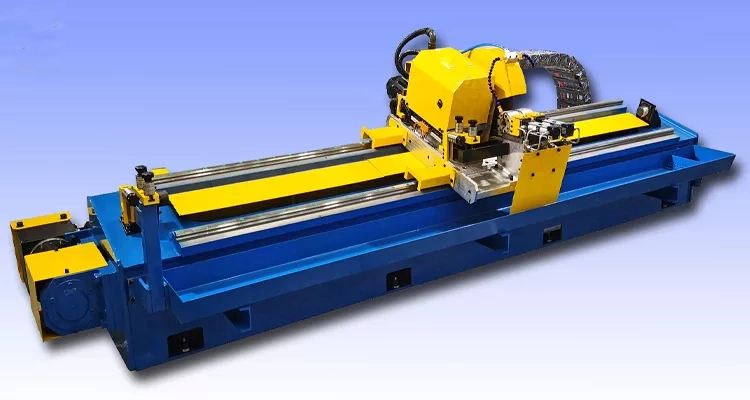

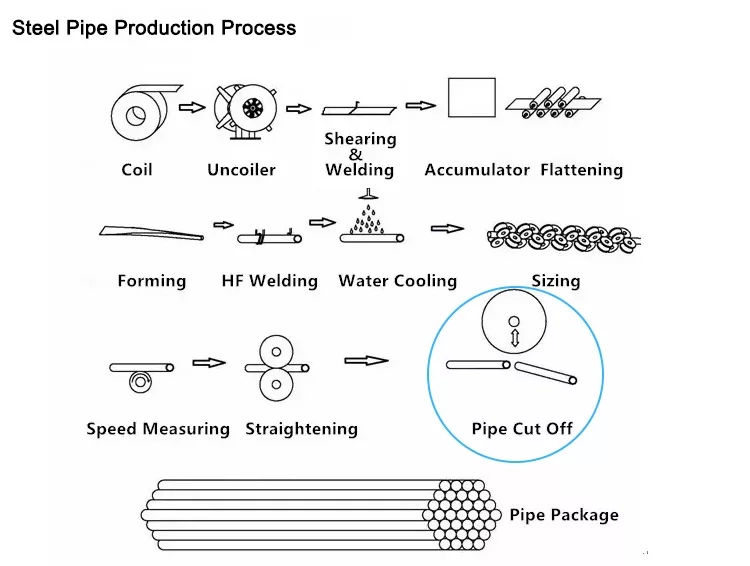

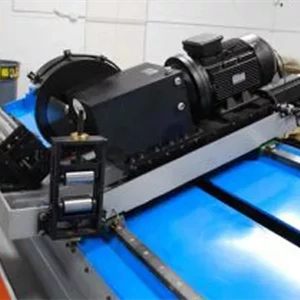

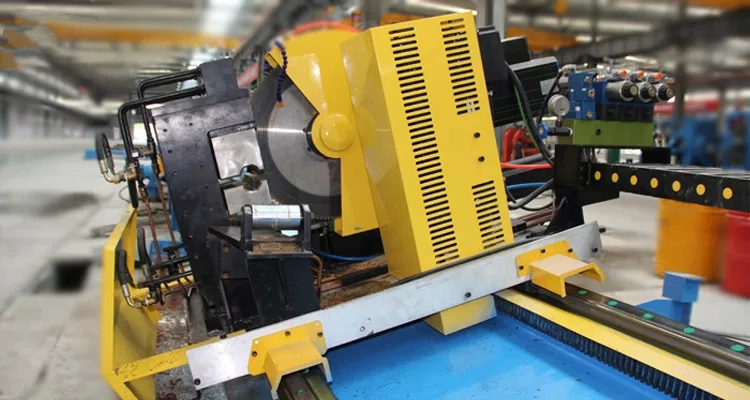

Cold flying saw is the main equipment for the welded steel tube production line with decoiler, strip feeding, roller forming and sizing, high frequency solid welding, cutting and stock. of welded steel pipe production line. It is the production equipment of the last process of the welded pipe production line, which has a greater impact on the quality and production efficiency of the product.
Model No. | Round Pipe(mm) | Square Pipe(mm) | Rectangle(mm) | Thickness(mm) | Max.Speed(m/min) |
HG20 | 7.6-25 | 6-20 | 15*25 | 0.5-1.5 | 120 |
HG32 | 13-38 | 10-30 | 20*40 | 0.6-2.3 | 120 |
HG50 | 20-63.5 | 15-50 | 35*65 | 0.8-3.0 | 120 |
HG76 | 32-89 | 25-70 | 45*90 | 1.2-4.0 | 100 |
HG89 | 38-100 | 30-80 | 50*100 | 1.2-4.5 | 80 |
HG114 | 63-114 | 50-90 | 60*120 | 1.2-5.0 | 60 |
HG127 | 60-140 | 50-110 | 75*145 | 1.2-6.0 | 60 |
HG165 | 76-168 | 60-130 | 90*180 | 2.0-8.0 | 60 |
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service
