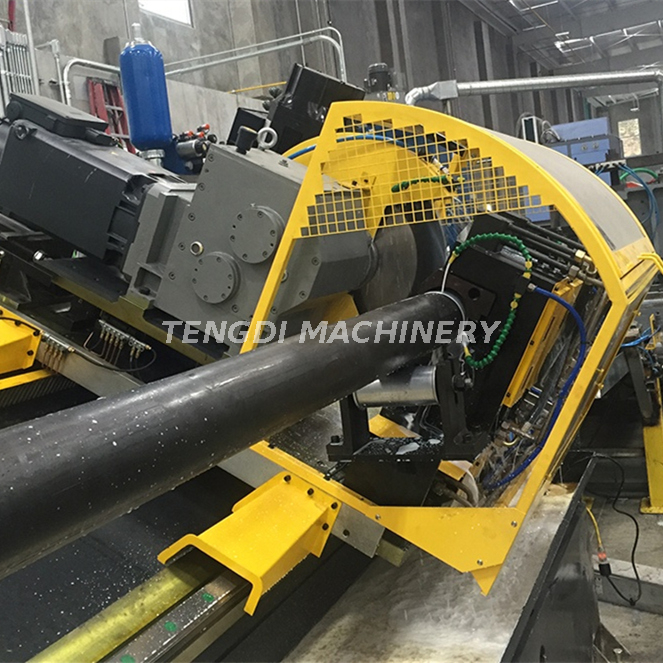

Are you looking for a premium cold cut saw with great performance?
On the straight seam welded pipe production line, when the traditional computer flying saw produces short pipes, due to the limitation of cutting technology, it usually cuts long pipes first, then transports the long pipes to the offline, and cuts the long pipes with the offline steel pipe cutting machine. short tube. Cutting short pipes online can save the time and manpower of transporting the long pipes to the offline pipe cutting machine, save the process of reprocessing short pipes with the offline steel pipe cutting machine, save investment funds and improve production efficiency.
According to the actual needs of customers, TENGDI's special research and development department has produced a cold-cut saw that cuts short tubes online, reducing the number of operators and auxiliary working hours. The era of transporting long pipes to the offline pipe cutting machine for reprocessing has ended. The era of online production of short pipes has arrived. Length accuracy: 0.5mm. It is suitable for cutting household pipes, automobile pipes, anti-collision bars and other industries Special tube
Type: | Pipe Cutting Machine | Pipe Material: | Carbon steel |
Place of Origin: | Hebei, China | Production Capacity: | 50-120m/min |
Voltage: | 380V/Customized, Customized | Power: | 20-50kw, 20 - 50Kw |
Weight: | 3400KG | Key Selling Points: | High-accuracy, High Productivity |
Name: | Steel Pipe Cutting Saw | Pipe shape: | Round/Square/Rectangle Pipe |
Pipe length: | Customized | MOQ: | 1 Set |
After-sales Service Provided: | Online support, Field installation, commissioning and training, Field main |
Equipment size: | 4600*1500*1300mm | Wall thickness | 0.3-2.0mm |
Drag motor: | 11KW servo (Yaskawa) | Feed motor: | 2.9KW servo (Yaskawa) |
Sawing motor: | 5.5KW AC motor with frequency conversion | Feeding method: | Servo multi-speed feed |
Maximum speed: | 120 m/min | Fixtures: | 2 groups |
Step Up Power: | Pneumatic | Energy chain: | plastic energy chain |
Saw blade: | high speed steel, diameter 350mm | Saw travel (rack length): | 3 meters |

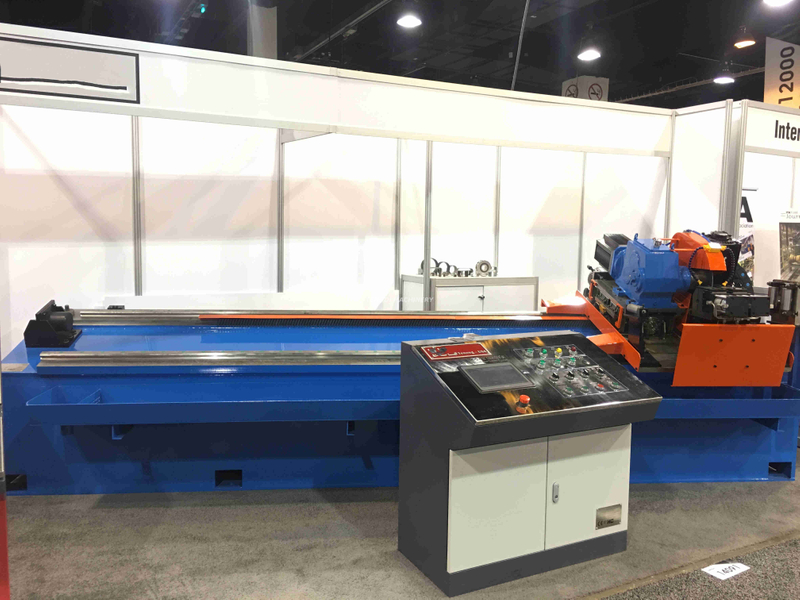

Cold flying saw is the main equipment for the welded steel tube production line with decoiler, strip feeding, roller forming and sizing, high frequency solid welding, cutting and stock. of welded steel pipe production line. It is the production equipment of the last process of the welded pipe production line, which has a greater impact on the quality and production efficiency of the product.
Model No. | Round Pipe(mm) | Square Pipe(mm) | Rectangle(mm) | Thickness(mm) | Max.Speed(m/min) |
HG20 | 7.6-25 | 6-20 | 15*25 | 0.5-1.5 | 120 |
HG32 | 13-38 | 10-30 | 20*40 | 0.6-2.3 | 120 |
HG50 | 20-63.5 | 15-50 | 35*65 | 0.8-3.0 | 120 |
HG76 | 32-89 | 25-70 | 45*90 | 1.2-4.0 | 100 |
HG89 | 38-100 | 30-80 | 50*100 | 1.2-4.5 | 80 |
HG114 | 63-114 | 50-90 | 60*120 | 1.2-5.0 | 60 |
HG127 | 60-140 | 50-110 | 75*145 | 1.2-6.0 | 60 |
HG165 | 76-168 | 60-130 | 90*180 | 2.0-8.0 | 60 |
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service
