Advantages:
Centralized lubrication system for better machine maintenance and longer service life;
No burr cutting, no secondary processing of the section;
Cutting in various lengths without stopping the tube mill;
Easy-to-use computer-based graphical interface, capable of handling products of various shapes: round, square, rectangular, shaped, etc.;
Cutting accuracy is high, and the remote monitoring function can evaluate the status of field operations at a remote location. Once programmed, the console does not require a continuous operator;
The specially customized cold saw gearbox is the result of TENGDI's accumulated experience in metal pipe cutting for more than 20 years, which can provide guarantee for the overall stable operation of the equipment.
Type: | Pipe Cutting Machine | Pipe Material: | Carbon steel |
Place of Origin: | Hebei, China | Production Capacity: | 50-100m/min |
Voltage: | 380V/Customized, Customized | Power: | 20-50kw, 20 - 50Kw |
Weight: | 4200KG | Key Selling Points: | High-accuracy, High Productivity |
Name: | Steel Pipe Cutting Saw | Pipe shape: | Round/Square/Rectangle Pipe |
Pipe length: | Customized | MOQ: | 1 Set |
After-sales Service Provided: | Online support, Field installation, commissioning and training, Field main |
Equipment size: | 5600*1800*1400mm | Wall thickness | 0.8-3.0mm |
Drag motor: | 15KW servo (Yaskawa) | Feed motor: | 4.4KW servo (Yaskawa) |
Sawing motor: | 15KW AC motor with frequency conversion | Feeding method: | Servo multi-speed feed |
Maximum speed: | 100 m/min | Fixtures: | 3 groups |
Step Up Power: | Pneumatic | Energy chain: | plastic energy chain |
Saw blade: | high speed steel, diameter 450mm | Saw travel (rack length): | 4 meters |

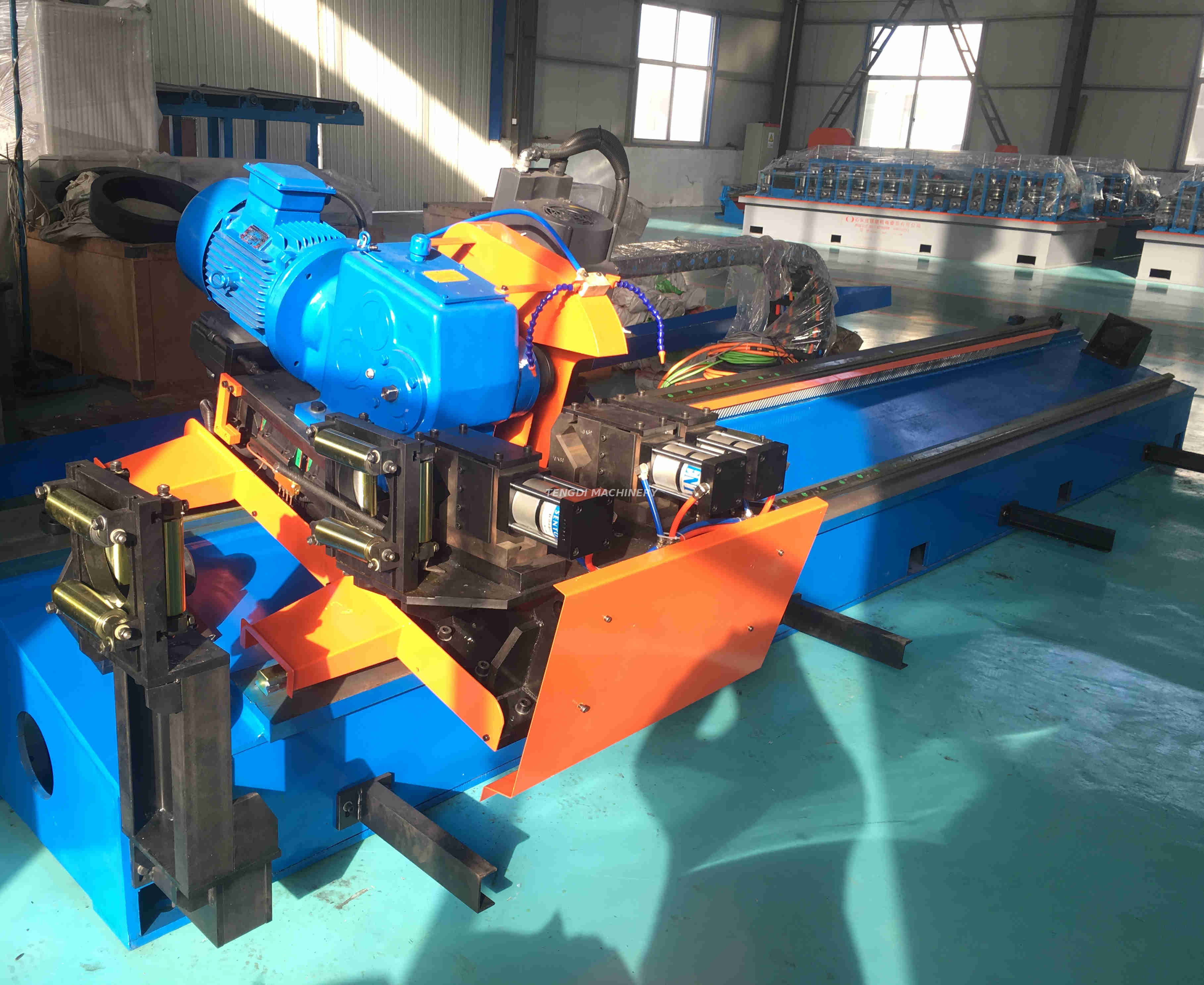

Cold flying saw is the main equipment for the welded steel tube production line with decoiler, strip feeding, roller forming and sizing, high frequency solid welding, cutting and stock. of welded steel pipe production line. It is the production equipment of the last process of the welded pipe production line, which has a greater impact on the quality and production efficiency of the product.
Model No. | Round Pipe(mm) | Square Pipe(mm) | Rectangle(mm) | Thickness(mm) | Max.Speed(m/min) |
HG20 | 7.6-25 | 6-20 | 15*25 | 0.5-1.5 | 120 |
HG32 | 13-38 | 10-30 | 20*40 | 0.6-2.3 | 120 |
HG50 | 20-63.5 | 15-50 | 35*65 | 0.8-3.0 | 120 |
HG76 | 32-89 | 25-70 | 45*90 | 1.2-4.0 | 100 |
HG89 | 38-100 | 30-80 | 50*100 | 1.2-4.5 | 80 |
HG114 | 63-114 | 50-90 | 60*120 | 1.2-5.0 | 60 |
HG127 | 60-140 | 50-110 | 75*145 | 1.2-6.0 | 60 |
HG165 | 76-168 | 60-130 | 90*180 | 2.0-8.0 | 60 |
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service
