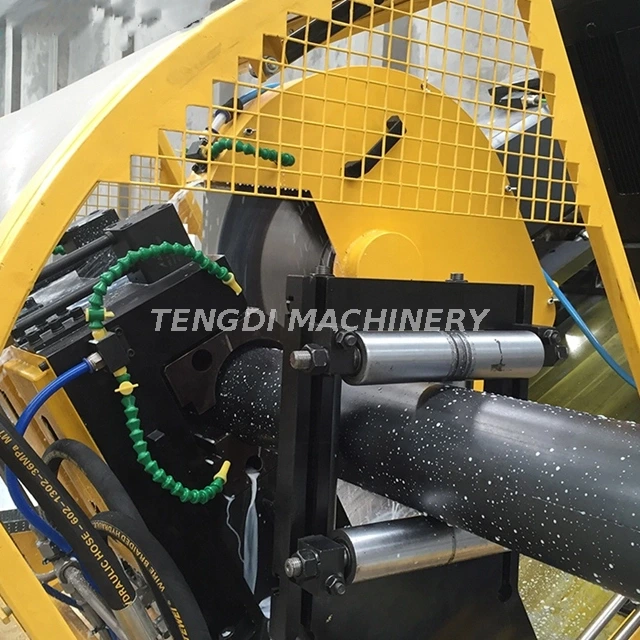

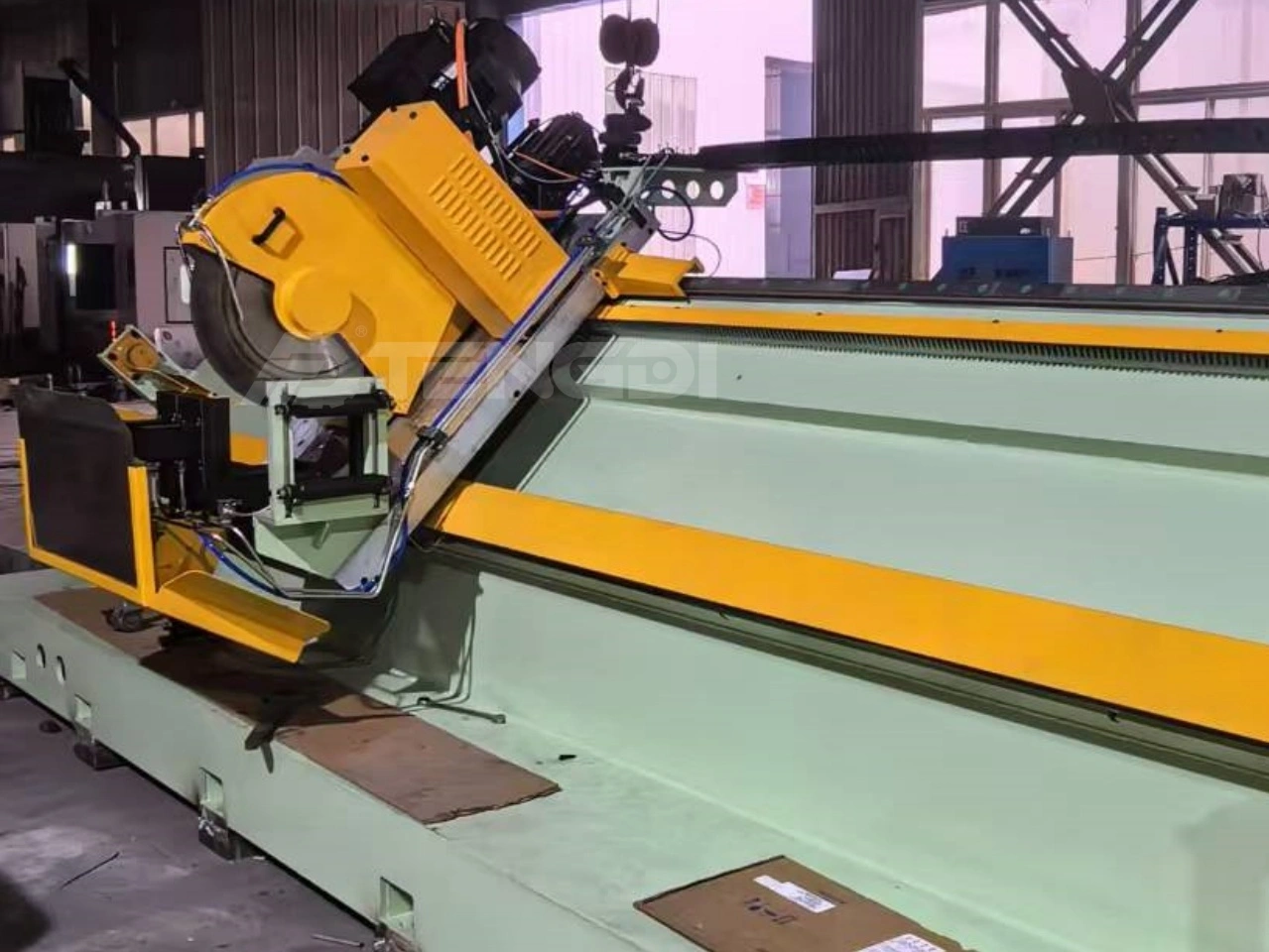

HG114 Milling Type Cold Saw Cut Off for Steel Pipe

Brand:Tengdi Machinery
Max Pipe Diameter:
130mm
Customization:
Comprehensive scheme customization of equipment
Service:
Lifetime maintenance
SKU:
Availability:

Are you looking for a premium cold cut saw with great performance?

Tengdi Machinery is an excellent steel pipe manufacturing machinery manufacturer, and we can explore cooperation with us. Tengdi offers a wide selection of steel pipe making machines designed to meet your unique requirements. We can be sure that you will get the best cold cut saw model and feature options for your needs. Tengdi works with skilled experts who contribute their years of experience and guarantee that all of our work is of the highest standard.

Quick Details
Type: Pipe Cutting Machine Pipe Material: Carbon steel
Place of Origin:
Hebei, China

Production Capacity:

50-60m/min
Voltage: 380V/Customized, Customized Power: 20-50kw, 20 - 50Kw
Weight: 5500KG Key Selling Points: High-accuracy, High Productivity
Name: Steel Pipe Cutting Saw Pipe shape: Round/Square/Rectangle Pipe
Pipe length: Customized MOQ: 1 Set
After-sales Service Provided: Online support, Field installation, commissioning and training, Field main

Product Details
Equipment size: 6200*1900*1800mm Wall thickness 1.2-5.0mm
Drag motor: 20KW servo (Yaskawa) Feed motor: 5.5KW servo (Yaskawa)
Sawing motor: 20KW AC motor with frequency conversion Feeding method: Servo multi-speed feed
Maximum speed: 60 m/min Fixtures: 3 groups
Step Up Power: Pneumatic Energy chain: plastic energy chain
Saw blade: high speed steel, diameter 550mm Saw travel (rack length): 4.5 meters

flying sawflying cut off saw

Product Description

Computer flying saw

Cold flying saw is the main equipment for the welded steel tube production line with decoiler, strip feeding, roller forming and sizing, high frequency solid welding, cutting and stock. of welded steel pipe production line. It is the production equipment of the last process of the welded pipe production line, which has a greater impact on the quality and production efficiency of the product.

Model No.
Round Pipe(mm)
Square Pipe(mm)
Rectangle(mm)
Thickness(mm)
Max.Speed(m/min)
HG25
7.6-25
6-20
15*25
0.5-1.5
120
HG32
13-38
10-30
20*40
0.6-2.3
120
HG50
20-63.5
15-50
35*65
0.8-3.0
120
HG76
32-89
25-70
45*90
1.2-4.0
100
HG89
38-100
30-80
50*100
1.2-4.5
80
HG114
63-114
50-90
60*120
1.2-5.0
60
HG127
60-140
50-110
75*145
1.2-6.0
60
HG165
76-168
60-130
90*180
2.0-8.0
60


Product Display
steel pipe flying saw

PLC Controller

Combination of LCD and control cabinet, developed it ourselves. Different pipes with different parameters.


steel pipe flying cut off saw

Servo Motor

Different pipes equipped with different size servo Motor,  Yaskawa servo motor is avaliable as well. Usually, we adopts Siemens Yaskawa motor and Driver.


steel pipe Computer flying saw

Saw Blade

oversea's brand Equipped  two blade with the Equipment as free.


pipe flying saw

Encoder

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Packaging and delivery

Tengdi Packaging and delivery

Exhibition photos

Tengdi Exhibition photos

Certificate

Tengdi Certificate

QFA

Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.


Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!


Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.


Q: How do you do QA?

A: We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.


Q: Why choose you? What is the difference between you and other Chinese supplier?

A: You can get higher quality product & better professional service from TENGDI with same price.


Q: What I should do if just start a new business?

A: Contact us immediately, we provide free consultant pre-sales service
