SKU: | |
---|---|
Availability: | |
Ram: | Φ160mm | Size: | 406 |
---|---|---|---|
Thickness: | Sch 40 Sch 80 | Length: | Rough 6 M |
Valid Travel: | 4000mm | Raw Material: | Steel |
High Light: | pipe expanding machine,pipe expander equipment |

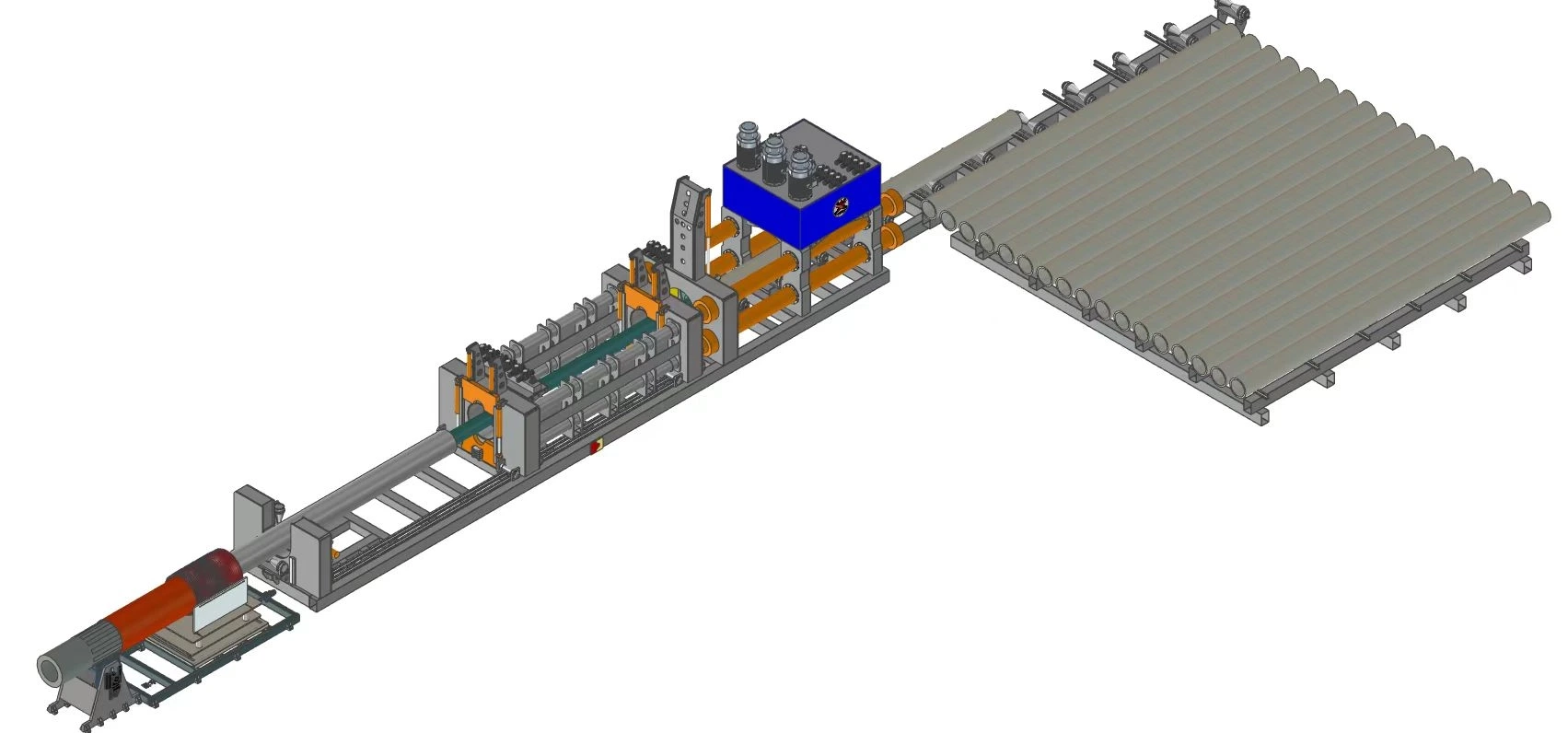

Seamless Sch 80 Pipe Expander Machine
Technical Details:
Mode No.:GIL406
Workpiece :4inch-16inch Max:SCH80
Material of workpiece: carbon steel, alloy steel (P11,P22, etc)
Details of the machine:
Ram Cylinder: Brand-TAI AN YILI
Piston | Ram | Cylinder | Valid Travel | Max Thrust | Qty |
Φ200mm | Φ160mm | Φ273 | 4000mm | 131T | 2 |
1.
Functions of intermediate frequency tube expander:
Intermediate frequency when use interchanged, the utility model of expanding machine connected to the power supply, expanded to metal charging rack, the supremacy of stepping up guiding device, hydraulic tightening the cylinder head will be connected with core mandrel for tighter, open rack on electric wheel rotation, to push the metal tube to plate hole, to guide and back 1 m or so, two tightening wheel repeated action, open the hydraulic motor on the roller, roller rotation speed (adjustable), metal tube into the mouth, will be automatically processed with expansion tube is to promote the core of head.At the same time by the intermediate frequency coil heating, expanding into the desired finished tube.
2.
The tube expander is designed for large diameter seamless steel tube with insufficient production and incomplete specifications.The equipment is a parallel equal-speed pusher with two oil cylinders or four oil cylinders.According to the outer diameter and length of the expanded steel pipe, set the power of the medium-frequency heating power supply, the thrust and stroke of the oil cylinder.
Ram: | Φ160mm | Size: | 406 |
---|---|---|---|
Thickness: | Sch 40 Sch 80 | Length: | Rough 6 M |
Valid Travel: | 4000mm | Raw Material: | Steel |
High Light: | pipe expanding machine,pipe expander equipment |
Seamless Sch 80 Pipe Expander Machine
Technical Details:
Mode No.:GIL406
Workpiece :4inch-16inch Max:SCH80
Material of workpiece: carbon steel, alloy steel (P11,P22, etc)
Details of the machine:
Ram Cylinder: Brand-TAI AN YILI
Piston | Ram | Cylinder | Valid Travel | Max Thrust | Qty |
Φ200mm | Φ160mm | Φ273 | 4000mm | 131T | 2 |
1.
Functions of intermediate frequency tube expander:
Intermediate frequency when use interchanged, the utility model of expanding machine connected to the power supply, expanded to metal charging rack, the supremacy of stepping up guiding device, hydraulic tightening the cylinder head will be connected with core mandrel for tighter, open rack on electric wheel rotation, to push the metal tube to plate hole, to guide and back 1 m or so, two tightening wheel repeated action, open the hydraulic motor on the roller, roller rotation speed (adjustable), metal tube into the mouth, will be automatically processed with expansion tube is to promote the core of head.At the same time by the intermediate frequency coil heating, expanding into the desired finished tube.
2.
The tube expander is designed for large diameter seamless steel tube with insufficient production and incomplete specifications.The equipment is a parallel equal-speed pusher with two oil cylinders or four oil cylinders.According to the outer diameter and length of the expanded steel pipe, set the power of the medium-frequency heating power supply, the thrust and stroke of the oil cylinder.
