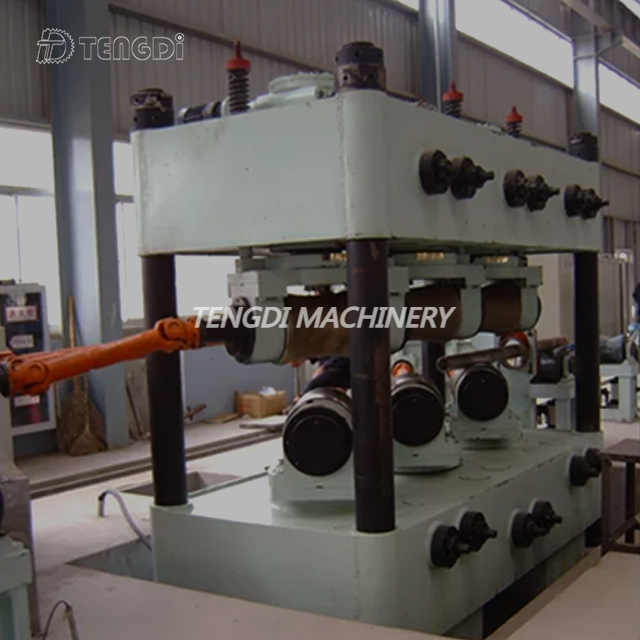

New Straightener machine

Brand: Tengdi Machinery
diameter range:
40-100mm
Lead Time:
Est. Time(days) 60
Customization:
Comprehensive scheme customization of equipment
Service:
1 Year warranty
SKU:
Availability:

Are you looking for Straightening Machine that will provide exceptional performance?

Tengdi Machinery is an excellent steel pipe making machine manufacturer with whom to explore collaborating. Tengdi provide a large selection of various Straightening Machine choices that are intended to meet your unique requirements. We can be sure that you will get the finest steel pipe making line option for your needs. Tengdi collaborate with skilled specialists who contribute their years of experience and guarantee that all of our works meet the highest standards.

New Straightener machine

Straightening machine is a device for straightening metal profiles, bars, pipes, wires, etc. The straightening machine uses straightening rollers to squeeze bars, etc. to change the straightness. Generally, there are two rows of straightening rollers, the number of which varies. There are also two-roll straightening machines, which rely on the angle change of the two rolls (concave in the middle, hyperbolic roll) to straighten materials of different diameters. The main types are pressure straightening machine, balance rolling straightening machine, shoe rolling straightening machine, rotary reverse bending straightening machine and so on.

Straightening process

The position of the rollers is at a certain angle to the direction of movement of the straightened product. Two or three large ones are active pressure rollers, which are driven by a motor to rotate in the same direction. Several small rollers on the other side are driven pressure rollers. It is rotated by the friction of a rotating round rod or pipe. In order to achieve the required compression of the product by the rollers, these small rollers can be adjusted forward or backward at the same time or separately. Generally, the more the number of rollers, the higher the precision of the straightened product. After the product is bitten by the roller, it continuously moves in a straight line or rotation, so that the product is subjected to various deformations such as compression, bending, and flattening, and finally achieves the purpose of straightening.

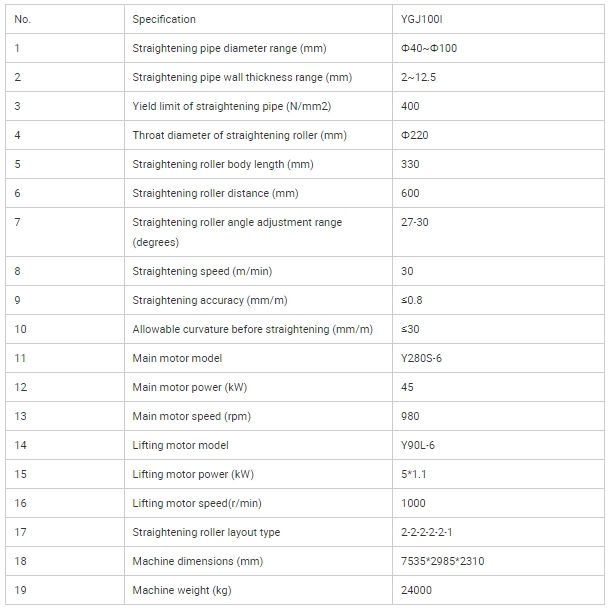

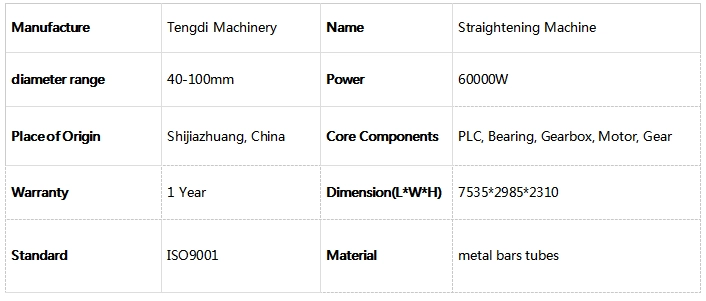

Quick Details

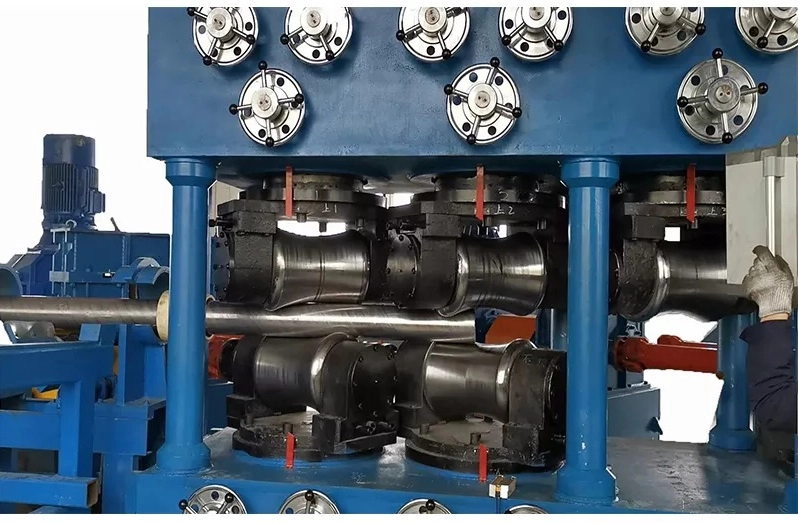

straightening

Other specifications and industry applications

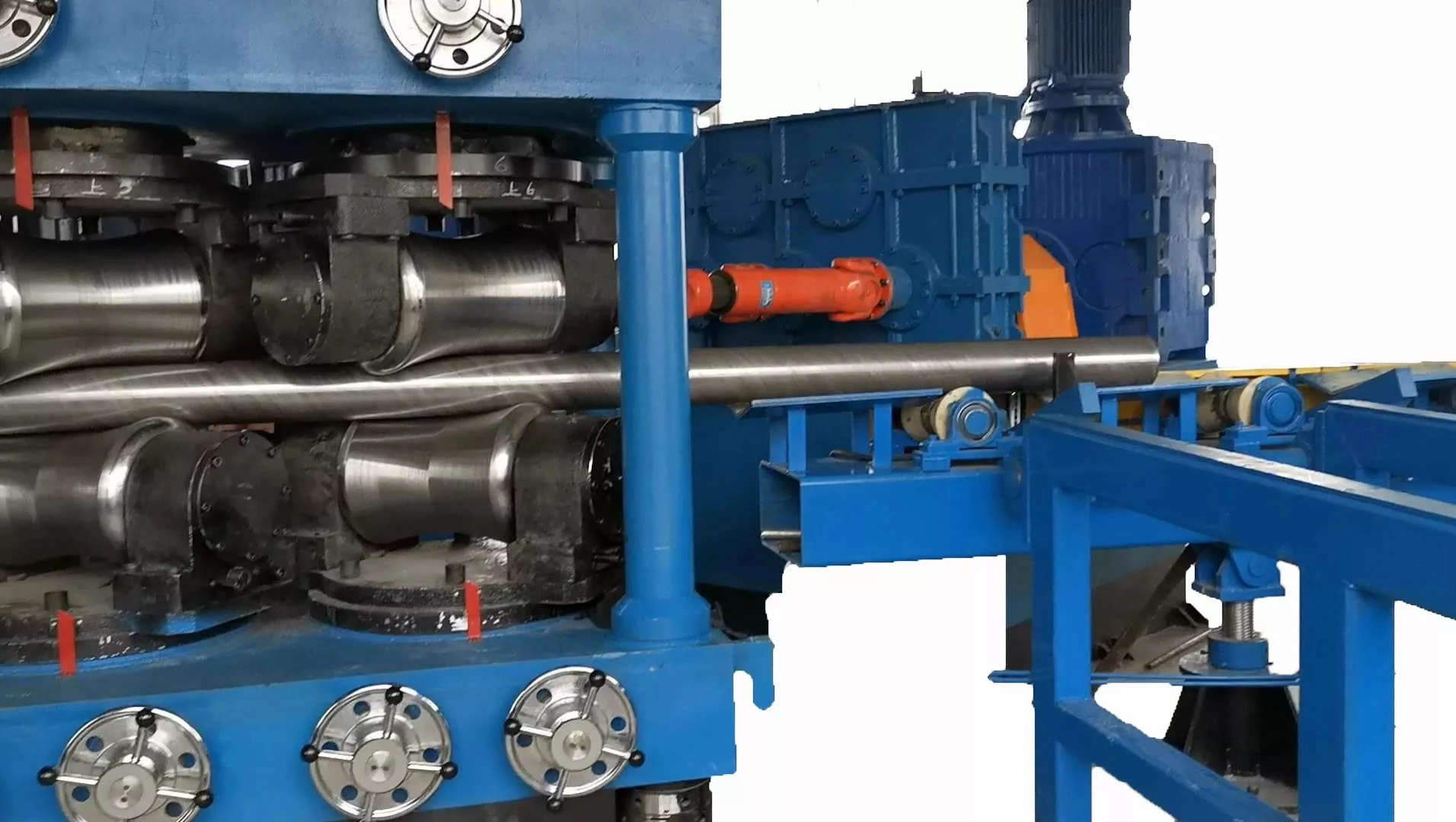

tube straightener

Flow chart and product unit


pipe straightening tube straightening machine manufacturer pipe straightening machine,jpg

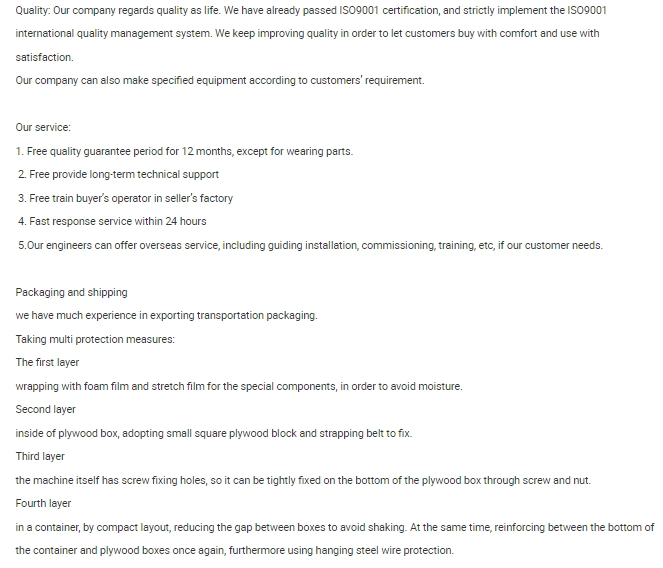

Packaging and delivery
Tengdi Ship
Processing capacity

Tengdi workshop

Exhibition photos

Tengdi Exhibition

Certificate

Tengdi Certificate

QFA

Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.


Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!


Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.


Q: How do you do QA?

A: We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
