Pipe Hydro Testing Machine

Brand:Tengdi Machinery
model:
4'' -12''Steel Pipe Hydraulic Tester
Lead Time:
Est. Time(days) 90
Customization:
Comprehensive scheme customization of equipment
Service:
1 year warranty
SKU:
Availability:

Are you looking for a high-quality hydrostatic testing machine with excellent performance?

Tengdi Machinery is an excellent steel pipe manufacturing machinery manufacturer, and we can explore cooperation with us. Tendi offers a wide selection of hydrostatic testing machines designed to meet your unique requirements. We can be sure that you will get the steel pipe line option that best suits your needs. Tendi works with skilled experts who contribute their years of experience and guarantee that all of our work is of the highest standard.

Quick Details

Sr.

Name

Unit

Specification

1

Pipe Dia.

mm

114–325mm

2

Pipe Thickness

mm

4-13 mm

3

Pipe Length

m

8– 13 m

5

Dia. Tolerance

%

±1.5%

6

Pipe Ends


Both ends after facing, no chamfering, no burr

7

Thickness Tolerance

%

± 12.5%

8

Pipe Ellipticity


Not exceeding 80% of allowable tolerance of outer diameter.

9

Straightness


Pipe Body: max. 1.5/1000

Pipe Ends: 1.83 m inner, Max. 3.18/1000

10

Pipe Temperature


0  to  +40⁰C

Quick Details


Sr.

Name

Unit

Specification

1

Structure Type


2 beam type

2

Test pipe Quantity/time

pc

1

3

Test Pressure

MPa

8 - 50

4

Dwell Time

S

5~30 adjustable

5

Testing Efficiency

Sec

80/pc(325mm)

6

Sealing Way


Large clearance external lock radial seal

7

Pressure Testing Blind Area

mm

≤80 single side

8

The Test Medium


emulsion

9

Pipe Length

m

8-13

10

Operation Way


Manual, semi-automatic and automatic

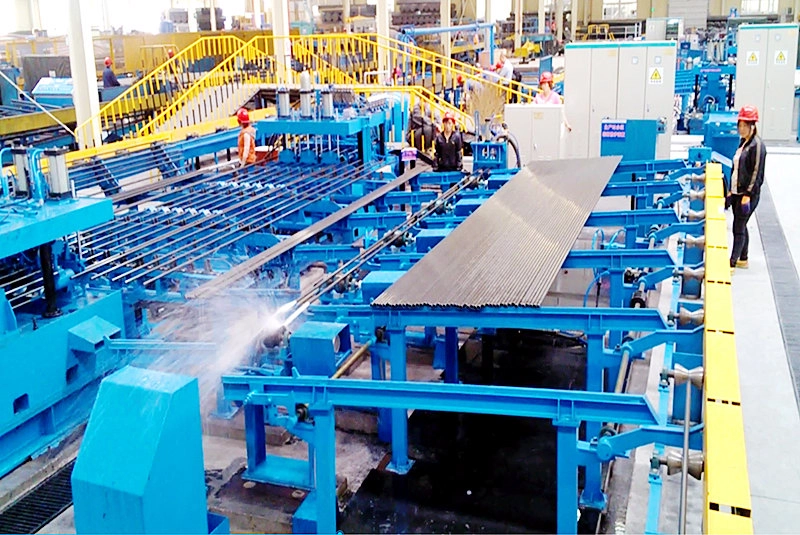

微信图片_20210629170012
Flow chart

Loading → Pipe-Connecting → Pipe-Filling → Water-Pressuring Pressure → Maintaining → Pressure Releasing → Draining → Exit Pipe

Packaging and delivery
30% (1)

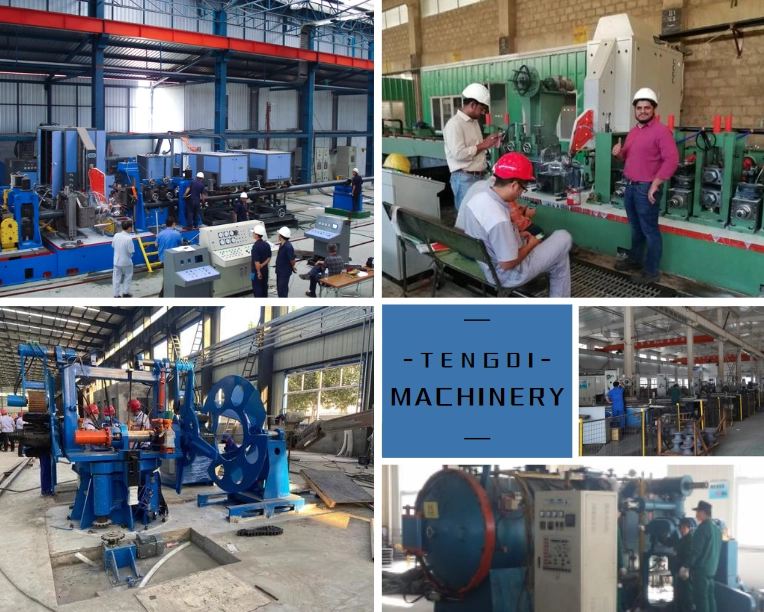

Factory commissioning

工厂调试

Exhibition photos

8a345f7a65e330ac92fb362f6362291

Certificate

abd51508a9491885752d07b4cb4bd74

QFA

Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.

Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!

Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.

Q: How do you do QA?

A: We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.

Q: Why choose you? What is the difference between you and other Chinese supplier?

A: You can get higher quality product & better professional service from TENGDI with same price.

Q: What I should do if just start a new business?

A: Contact us immediately, we provide free consultant pre-sales service

Q: How about your service?

A:Our services include:

(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!

(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.

(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
