Hydrostatic testing machine

Brand: Tengdi Machinery
Lead Time:
Est. Time(days) 60
Customization:
Comprehensive scheme customization of equipment
Service:
1 Year warranty
SKU:
Availability:

Are you looking for Hydraulic Testing Machine that will provide exceptional performance?

Tengdi Machinery is an excellent steel pipe making machine manufacturer with whom to explore collaborating. Tengdi provide a large selection of various Hydraulic Testing Machine choices that are intended to meet your unique requirements. We can be sure that you will get the finest steel pipe making line option for your needs. Tengdi collaborate with skilled specialists who contribute their years of experience and guarantee that all of our works meet the highest standards.

Hydrostatic testing machine:

The steel pipe hydraulic testing machine is suitable for testing the pressure resistance and bursting performance of various automobile hoses, rubber hoses, air-conditioning pipes, steel pipes, automobile assemblies and other products. It is used for burst pressure determination and pressure resistance time determination of various types of pipe fittings.

1. Application range It is widely used in the production, development and research of various hoses in quality inspection units, various auto parts manufacturing units, product quality inspection stations, scientific research institutions, etc. The pressure test system consists of a pressurization system and a control and display system. The pressurization system is mainly composed of a liquid booster pump, etc., which mainly completes the pressurization and pressure maintenance of the system, and can ensure the pressurization and pressure maintenance of the long-term test. The control and display system mainly completes the work of controlling the pressure of the driving gas, controlling the pressure relief, displaying the pressure in time, and controlling the pressurization.

2. Equipment composition

1. Core components: pressurize the liquid through the liquid booster pump to meet the test pressure requirements.

2. Pneumatic coupler: filter and adjust the pressure of compressed air;

3. Speed control valve: adjust the driving air flow to adjust the action frequency of the supercharger, which can prolong the service life of the supercharger;

4. High pressure filter: filter the gas;

5. High pressure limiting valve: set the automatic shutdown and opening pressure of the supercharger to ensure that the supercharger can automatically stop at the set pressure.

3. Equipment Features

1. Equipped with a gas-driven liquid automatic booster pump, the output pressure can be easily adjusted and controlled at will.

2. Small size, light weight, beautiful appearance.

3. All pressure-bearing parts are standard parts of international famous brands, without any welding connection, easy to disassemble, high safety factor, long life and easy maintenance.

4. Technical parameters

1. Driving air pressure range: 0.1-0.8 Mpa; and the output pressure is directly proportional to the driving air pressure.

2. Maximum air consumption: 1Nm3/min.

3. Pressure test range: 0-300Mpa.

4. Working medium: water, hydraulic oil, emulsion.

5. Portable automatic recorder can be configured.

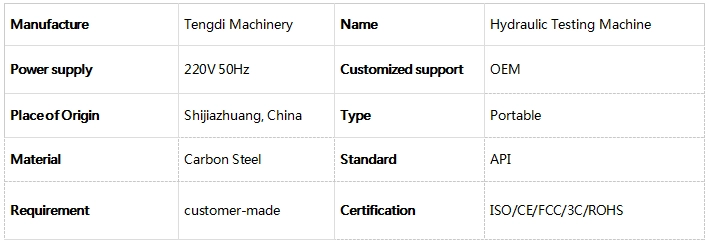

Quick Details

hydrostatic machine

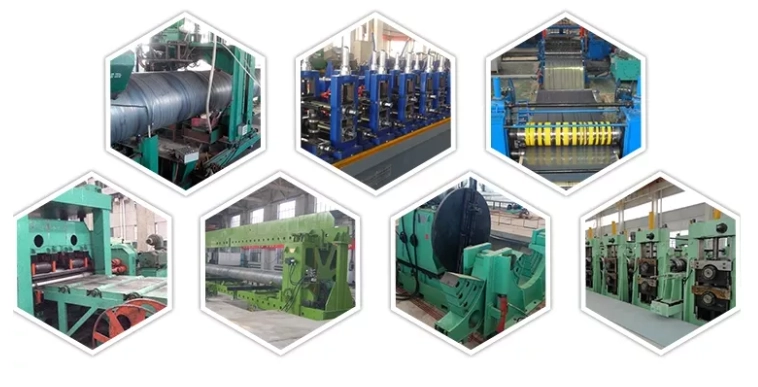

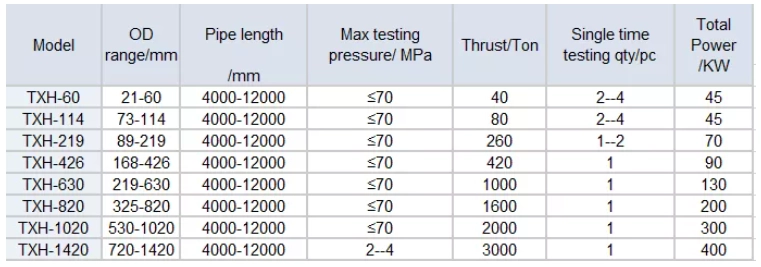

Other specifications and industry applications

testing machinesteel pipe hydrostatic machine

Flow chart and product unit

hydro testing machine for pipe 3hydro testing machine for pipe 2

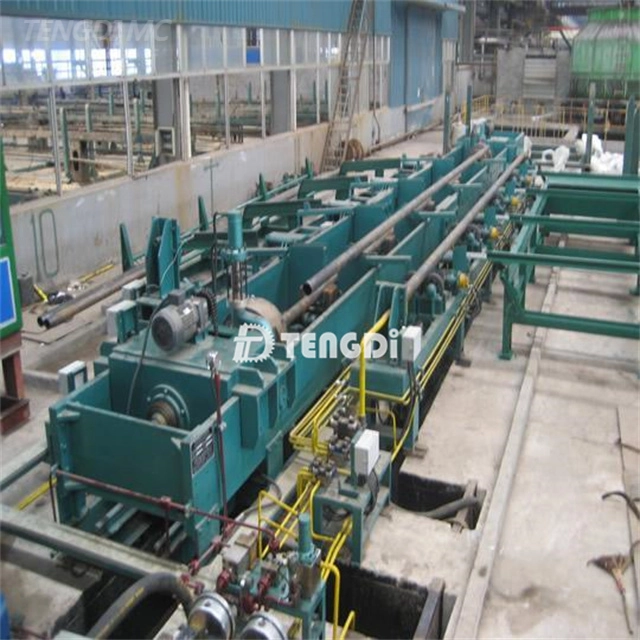

steel pipe hydro testing machine
Packaging and delivery
Tengdi Ship
Processing capacity

Tengdi workshop

Exhibition photos

Tengdi Exhibition

Certificate

Tengdi Certificate

QFA

Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.


Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!


Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.


Q: How do you do QA?

A: We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
