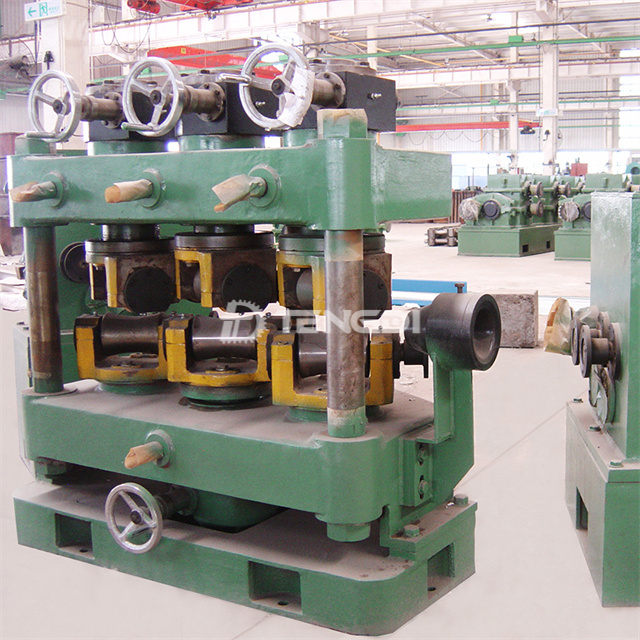

Tube Straightening Machine Manufacturers

Brand:Tengdi Machinery
Diameter range:
40-100mm
delivery time:
Estimated time (days) 60
custom made:
equipment
Comprehensive program customization services:
1 year warranty
SKU:
Availability:

Are you looking for a straightening machine that delivers exceptional performance?

Tengdi Machinery is an excellent s iron pipe making machine manufacturer with whom to explore cooperation. Tengdi offers a variety of straightening machine options designed to meet your unique requirements. We can be confident that you will get the best steel pipe fabrication line option f or your needs. Tendy works with highly skilled specialists who contribute their years of experience and guarantee that all of our work is of the highest standard.

Straightening machine introduction:

Straightening machine is a device for straightening metal profiles, bars, pipes, wires, etc. The straightening machine uses straightening rollers to squeeze bars, etc. to change the straightness. Generally, there are two rows of straightening rollers, the number of which varies. There are also two-roll straightening machines, which rely on the angle change of the two rolls (concave in the middle, hyperbolic roll) to straighten materials of different diameters. The main types are pressure straightening machine, balance rolling straightening machine, shoe rolling straightening machine, rotary reverse bending straightening machine and so on.

Steps:

1. Before starting the machine, check whether the hydraulic oil in the hydraulic station, the gear oil in the reduction box, and the transmission box are full.

2. Before starting the main motor, check and adjust the rotation angle and adjust the working pressure of the hydraulic system.

⒊Inject lubricating oil into each lubricating point, and check the operation status of the mechanical transmission part to make the transportation flexible.

⒋Operators should wear labor protection supplies, and must not leave their posts or shift posts after starting the machine.

5. After the oil temperature and oil pressure of the hydraulic station are stable, the upper straightening roller is lifted to the initial position.

⒍Manual receiving, the steel pipe is sent through the third pair of straightening rollers, and then the upper straightening roller is pressed down and clamped.

⒎Start the main motor, the steel pipe rotates forward and is straightened at the same time.

8. The motor stops, the straightening roller stops straightening, the upper straightening roller lifts up, and the straightened steel pipe is sent out.

⒐If reverse straightening is required, the main machine can be reversed through the reverse knob on the console to carry out reverse straightening.

⒑The main motor stops, the straightening roller stops straightening, the steel pipe is returned to the initial position, and the next straightening program instruction is repeated.

⒒ After shutting down, turn off the main power supply, and do not change the program controller at will.

2. Matters needing attention

1. Carefully observe the straightness of the steel pipe. During the initial adjustment, ensure that the steel pipe is in contact with three-quarters of the straightening roller body, and ensure that the gap is not greater than 0.1mm.

2. The straightening speed should be adjusted reasonably according to the bending degree of the steel pipe and the material of the steel pipe to be straightened.

⒊Adjust the distance between the upper and lower rollers according to the material, curvature and required precision of the steel pipe to ensure the straightening reduction.

4. During the straightening process, it is strictly forbidden to touch the straightening roller and the moving steel pipe with hands, and pay attention to the surface quality of the steel pipe to prevent scratches and indentations on the steel pipe surface.


快速详情

矫 直

其他规格和工业应用

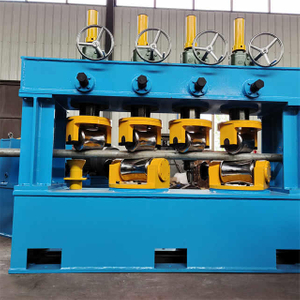

矫直管机

流程图和产品单元


管道矫直 管矫直机制造商 管道矫直机,jpg
包装和交付
腾地船
加工能力

腾地车间

展会照片

腾地展览

证书

腾地证书

断续器

Q: Are you a manufacturer?

Answer: Yes. We are manufacturers. We have our own technical team. Welcome to visit us.



Q: What payment methods do you accept?

A: Our payment terms are flexible, please contact us for details!





Q: What information do you need before making a recommendation?

Answer: The pipe diameter and thickness range or profile drawing material information you need, your special requirements and the speed of the machine.





Q: How do you do QA?

A: We have a dedicated team to do strict QA, which is our strength:

(1) Each gearbox will be tested for 8 hours with oil inside to ensure no leakage.

(2) The centering jump of each axis will be checked.

(3) Each roll will be inspected to ensure it is within tolerance and key components will be inspected against all dimensions.
