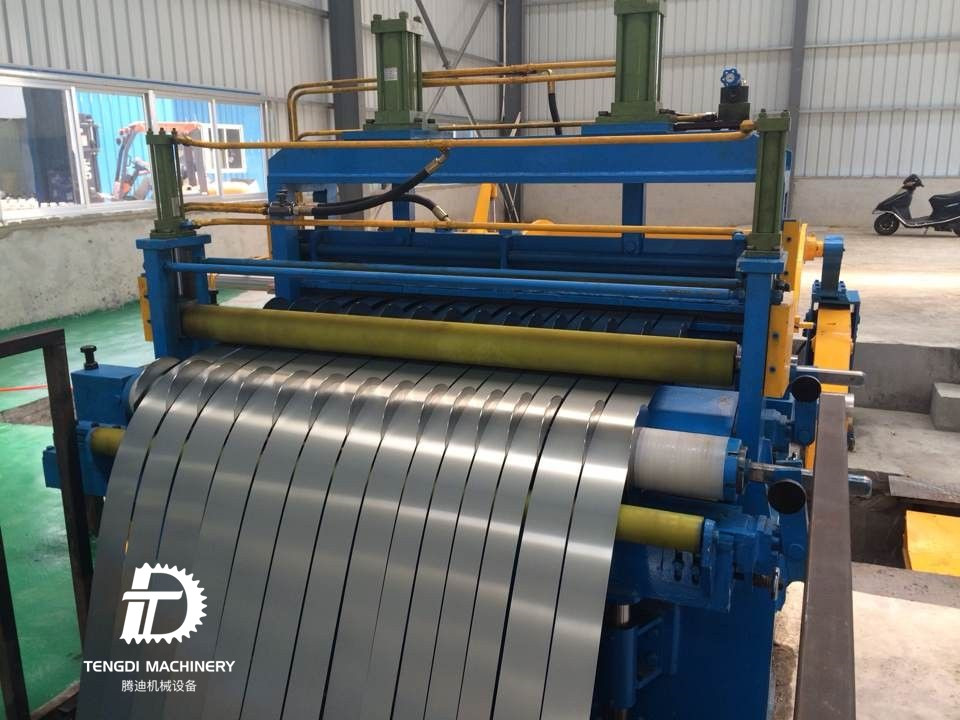

Slitting Line Manufacturers

Brand:Tengdi Machinery
Lead Time:
Est. Time(days) 60
Customization:
Comprehensive scheme customization of equipment
Service:
1 Year warranty
SKU:
Availability:

Are you looking for a high-quality cross-cutting line with outstanding performance?

Tengdi Machinery is an excellent manufacturer of cross-cutting production lines, and can explore cooperation with us. Tendi offers a wide selection of crosscutting machines designed to meet your unique requirements. We can be sure that you will get the crosscutting line option that best suits your needs. Tendi works with skilled experts who contribute their years of experience and guarantee that all of our work is of the highest standard.


Quick Details
Cutting Width (mm): 500 - 2000 mm Material Thickness(mm): 3 - 12 mm
Cutting Speed(m/min): 1 - 40 m/min Coil Weight (T): 30T
Leveling Precision(±mm/m): 1.5 ±mm/m Voltage: 380v
Rated Power: 300KW Dimension(L*W*H): 28X8X2m
Weight: 5000 Coil Thickness: 2-8mm
Coil width: 800-2000mm Coil weight: max 30T
Total line power consumption: 300KW Total weight: 50T
Line Speed: 40m/min Cutting length: 2000mm-12000mm
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pu


Product description

1.What is Cut To Length Machine The Cut To Length Machine also called cut to length line which are used for uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils etc into different width according to the users production demands and cut as well

2.Function This equipment through the procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device, transition, and conveyor, etc.

3.Category According to the metal materials there are stainless steel cut to length machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on. According to its electronic control mode there are pneumatic cut to length line,NC cut to length line and etc.

Type 3×1600 6×2000 8×2000 10×2200 12×2200 16×2200 20×2500 25×2500
Thickness Range(mm) 0.3-3 1-6 2-8 2-10 3-12 4-16 6-20 8-25
Width Range(mm) 1600 2000 2000 2200 2200 2200 2500 2500
Cutting Length(mm) 300-4000 500-6000 600-8000 600-10000 800-12000 800-12000 800-12000 800-12000
Cutting precision(mm) ±0.5 ±0.5 ±1 ±1 ±1 ±1 ±1 ±1
Roller Numbers 15 15 13 13 11 11 9 9
Roller Diameter(mm) Ф85 Ф140 Ф155 Ф160 Ф180 Ф200 Ф230 Ф260
Product parameter


item specifications
Raw materials Materials feature: HR YS 450 TS 350
thickness: 2.0mm-8.0mm
width: 800mm-2000mm
O.D: Φ1000mm-φ2150mm
I.D: φ500mm-φ800mm
Coil weight: Max 30T
Finished product Cutting length: 2000mm-12000mm
Cutting tolerance: ±1.5mm( length tolerance)
±2.0mm( diagonal tolerance)
Match the standard GB/T709-88
Leveling speed 0-40m/min
Max cutting thickness 12mm
Center line of the line ( to the ground) 800mm
Flow Chart

Standard Flow chart of cut to length machine:

Coil lifter --- hydraulic decoiler --- snubber roller --- pinch roll & pre-leveler --- loop bridge --- side guide roller --- main leveling machine --- encode & measuring device (with tail plate pinching) --- shear --- conveyor --- hydraulic lift platform --- stacker with blower device --- unload cart

Flow Chart cut to length coil line

high qualityChart coil cut to length line2

coil-cut-to-length-line



Packaging and delivery

Packaging and delivery cut to length coil line

Exhibition photos

Exhibition photos coil cut to length machine

Certificate

Certificate steel coil cutting line



QFA

Q: How do you do QA?

A: We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.


Q: Why choose you? What is the difference between you and other Chinese supplier?

A: You can get higher quality product & better professional service from TENGDI with same price.


Q: What I should do if just start a new business?

A: Contact us immediately, we provide free consultant pre-sales service


Q: How about your service?

A:Our services include:

(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!

(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.

(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
