Are you looking for high-quality steel pipe making machine that will provide exceptional performance?
Welded steel pipe has simple production process, high production efficiency, many varieties and specifications, and less equipment investment, but its general strength is lower than that of seamless steel pipe. Since the 1930s, with the rapid development of continuous rolling production of high-quality strip steel and the advancement of welding and inspection technology, the quality of welds has been continuously improved, and the varieties and specifications of welded steel pipes have increased day by day, and replaced seamless steel pipes in more and more fields. Seam steel pipe.

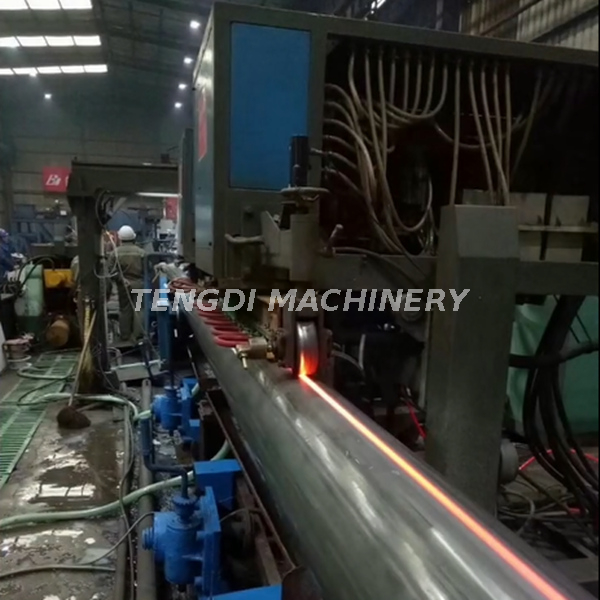

The high-frequency welding forming machine tube has the characteristics of relatively simple process and rapid continuous production, and is widely used in civil construction, petrochemical, light industry and other departments. It is mostly used to transport low-pressure fluid or make various engineering components and light industrial products.
Manufacture | Tengdi Machinery | Name | ERW pipe making machine |
Type | HF Solid state steel pipe welding production line | Warranty of core components | 1 Year |
Key Selling Points | High-accuracy | Useful life | 40 Years |
Pipe material | Carbon steel/Galvanized steel | Place of Origin | Shijiazhuang, China |
Round pipe dia | Φ219 - Φ508 mm | Line speed | ≤90m/min |
Round pipe thickness | 5.0 - 16.0 mm | Main power | 132KW + 132KW |
Square & rectangular pipe size | 170*170-400*400mm | Voltage | 220/380/415/440V |
Square & rectangular pipe thickness | 5.0 - 15.5 mm | Weight | 15000 kg |
Pipe length | 20-80m | Core Components | uncoiler, shear and welder, accumulator, forming and sizing stands, cold saw cutter, rollway |
Model | Procession (mm) | Wall thickness (mm) | Steel strip material | Power of main motor(kw) | Welding speed (m/min) | High frequency power(kw) |
Φ32 | Φ12—Φ32 | 0.5-2.5 | δb≤580Mpa | 75 | 60-120 | 150 |
Φ50 | Φ21—Φ50 | 0.6-3.5 | δb≤400Mpa | 90 | 60-120 | 200 |
Φ60 | Φ21—Φ60 | 0.8-3.5 | Carbon steel or low alloy steel | 110 | 60-110 | 200 |
Φ76 | Φ21—Φ76 | 1-3.75 | 160 | 50-95 | 300 | |
Φ89 | Φ32—Φ89 | 1-4.0 | 185 | 30-85 | 350 | |
Φ114 | Φ48—Φ114 | 1.5-5.0 | 200 | 30-80 | 400 | |
Φ165 | Φ89—Φ165 | ≤12 | 345B J55 K55 X52 X60 X70 N80 | 560 | ≤80 | 600 |
Φ219 | Φ140—Φ219 | ≤16 | 800 | ≤70 | 600 | |
Φ273 | Φ165—Φ273 | ≤16 | 800 | ≤60 | 1000 | |
Φ325 | Φ165—Φ325 | ≤16 | 960 | ≤50 | 1000 | |
Φ426 | Φ219—Φ426 | ≤16 | 960 | ≤40 | 1000 | |
Φ660 | Φ325—Φ660 | ≤22 | 1200 | ≤30 | 1200 |
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
Q: What I should do if just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service
Q: How about your service?
A:Our services include:
(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!
(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.
(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
