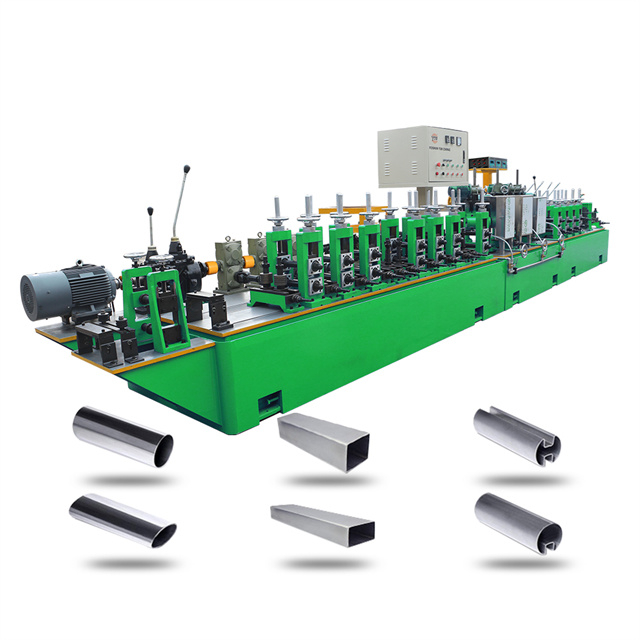

HG20 High Frequency Welding ERW Steel Tube Mill

Brand:   Tengdi Machinery
Model Number:
HG20
Max Pipe Diameter:
8-12mm
Maximum Dhickness:
0.3-1.2mm
Lead Time:
Est. Time(days) 60
Customization:
Comprehensive scheme customization of equipment
Service:
1 Year warranty


SKU:
Availability:

Are you looking for high-quality steel pipe mill that will provide exceptional performance?

Tengdi Machinery is an excellent steel pipe making machine manufacturer with whom to explore collaborating. Tengdi provide a large selection of various steel pipe making machine choices that are intended to meet your unique requirements. We can be sure that you will get the finest steel pipe making line option for your needs. Tengdi collaborate with skilled specialists who contribute their years of experience and guarantee that all of our works meet the highest standards.

HG20 High Frequency Welding ERW Steel Tube Mill

The high-frequency straight seam welded pipe equipment feeds the steel strip of a certain specification into the machine, curls the steel strip into a tube blank through the forming roller, and then uses the high-frequency proximity effect and skin effect to quickly heat the pipe edge to the welding temperature. And the welding is completed under the extrusion force of the extrusion roller, and then cooled, sized and roughly straightened to become a steel pipe of the required specification. The roll forming unit, FFX forming unit and roll forming unit produced by the company can produce X80 grade, J55 grade API oil casing, oil and gas pipe, etc., in line with API-5L, API-5CT and other standards. This unit can also produce special-shaped tubes for air-cooled island condensers used in power plants and steel mills.


Product model: HG20 high frequency straight seam welded pipe equipment

Diameter of welded steel pipe: φ8-φ25

Wall thickness of welded steel pipe: 0.4-1.25mm

Welded steel pipe material: carbon steel and low alloy steel with бb≤580Mpa and бs≤350MPa

Welding speed: 20-100m/min

The total power of the main motor: 30kw

High frequency equipment: 100kw

Equipment composition: uncoiler, straight head machine, active leveler, shear butt welding machine, storage looper, forming and sizing machine, computer flying saw, milling machine, hydraulic testing machine, blanking roller table, flaw detection Equipment, balers, high-frequency DC drive, and a full line of electrical appliances.



Quick Details

high speed tube mill

Other specifications and industry applications

tube mill totaltube mill

Flow chart and product unit


steel tube mill steel tube mill tube steel pipe mill
Packaging and delivery
Tengdi Ship
Processing capacity

Tengdi workshop

Exhibition photos

Tengdi Exhibition

Certificate

Tengdi Certificate

QFA

Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.


Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!


Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.


Q: How do you do QA?

A: We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
