ERW Steel Pipe Mill

Model Number:
HG76 pipe making machinery
Pipe diameter range:
US $500 coupons
Customized packaging(Min. Order: 1 Sets)
Customized logo(Min. Order: 1 Sets)
Graphic customization(Min. Order: 1 Sets)
1 Year for machinery warranty|1 Year for Core Components

Quick Details:

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant Core components: PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Stainless Steel,Inox, Carbon Steel, Iron, Erw, GI, Galvanized
type: Pipe making machine, pipe making machine production line
Production capacity: 1-15m/min application: Production of stainless steel pipes/tubes
power supply: 7.5KW Voltage: 220/380/415/420/440V, 220/380/415/420/440V
Dimension(L*W*H): 20m x 1.1m x 1.4m Weight: 6000 kg, 6-10T
Pipe diameter: 20-630mm Pipeline application: Furniture, curtains, chimneys, handrails, railings, construction pipes
Pipe Application: Furniture,curtains,chimney,handrails,baluster,construction tube
Supply Ability

30 Set/Sets per Month

Video Description:


Products Description:

Model Procession Wall thickness Steel strip material Power of main motor(kw) Welding speed High frequency power(kw)
(mm) (mm) (m/min)
Φ32 Φ12—Φ32 0.5-2.5 δb≤580Mpa
Carbon steel or low alloy steel
75 60-120 150
Φ50 Φ21—Φ50 0.6-3.5 90 60-120 200
Φ60 Φ21—Φ60 0.8-3.5 110 60-110 200
Φ76 Φ21—Φ76 1-3.75 160 50-95 300
Φ89 Φ32—Φ89 1-4.0 185 30-85 350
Φ114 Φ48—Φ114 1.5-5.0 200 30-80 400
Φ165 Φ89—Φ165 ≤12 345B J55 K55 X52 X60 X70 N80 560 ≤80 600
Φ219 Φ140—Φ219 ≤16 800 ≤70 600
Φ273 Φ165—Φ273 ≤16 800 ≤60 1000
Φ325 Φ165—Φ325 ≤16 960 ≤50 1000
Φ426 Φ219—Φ426 ≤16 960 ≤40 1000
Φ660 Φ325—Φ660 ≤22 1200 ≤30 1200


Factory Price Stainless Steel/Round Pipes:

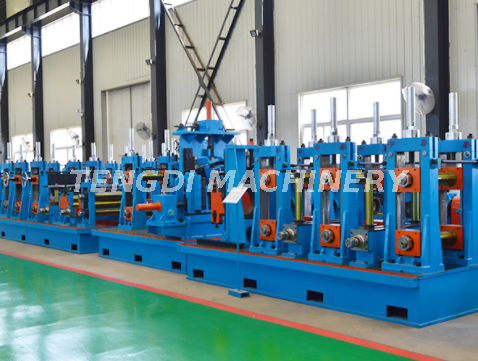

HG76 Stainless Steel Tube Mill is designed to produce welded round pipes, with the characters of advance, steady, perfect and maturity etc. The mill line is newly designed based on practical producing and acquiring the advantages of equipment home and abroad,which is also convenient in operation and maintenance.


Part 1: Un-coiler

Manual operation with adjustable brake
Two sides, coil adapting cone with loading weight: ≤1.5T per side

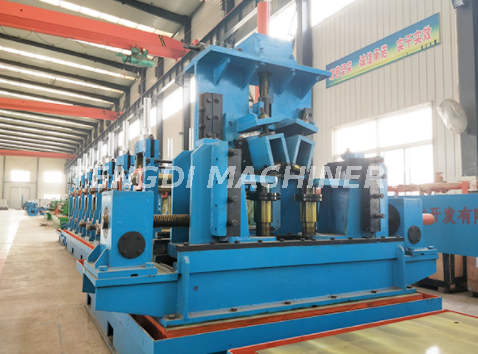

Part 2: Forming Section

Feeding equipment: 2 roller guide apparatus 3 break down+3 by-pass+3 fin passHorizontal Stands shaft dia.: 40mm Vertical Stands shaft dia.: 25mm
3-3-1-4 or 4-4-1-4 or customized
Horizontal Stand:

Needle Bearings in operation side Horizontal Stand,it is easy to change and adjust roll sets, will take roughly 40 minutes to change full set roll sets


Part 3: Welding Section
Welding Torch: Single 2 sets squeezing Rollers
Advantage for UT Welder: (1) Dust proof, to protect the machine (2) Pipe Welding quality will be much better than TIG Welder; (3) It saves about 30% Argon Gas Consumption; (4) It will improve production speed about 30%


Part 5: Sizing &Turk-Head

Straightening and sizing for pipes

To reset the roundness of pipes Turk Head: 2 Units


Part 6: Cold Saw&Plasma saw

the plasma saw has obtained technical patents and adopts advanced technology. Mainly used for steel pipes with large diameter, large wall thickness and low cost.


Part 7:Automatic Packing System

YLT-C32S/600 automatic steel pipe baler is a high-tech automatic packaging equipment integrating mechanical, electronic, pneumatic and computer control. The equipment is flexible in control, simple in operation, and reliable in action sequence of each mechanism. It is suitable for bundling and packaging on production lines. Cold and hot rolled steel pipe, rod and plate products.


管机-马帅祺 (5)






Packing for delivery:


Company Profile:

As one of the leading enterprises in stainless steel tube mill machine industry, TENGDI MACHIENRY has been specializing in producing steel pipe making machine, tube polishing machine and Rollers etc.In last 20 years.To ensure the finished tube mill product quality,TENGDI MACHINERY controls every production process by professional teams, such as design, purchasing of raw material, prouction, process and quality inspection. High quality, competitive price, we are pretty sure that we will be your best choice.


High frequency straight seam welded pipe equipment-马帅祺






1. who are we?
TENGDI MACHINERY Co., Ltd, founded in 2008, As a manufacturers and exporters for 14 years. We have a high-quality team, 15 persons service team;Professional Engineer with 25 years experience of adjusting machines;Professional design term with 20 years design experience.

2. how can we guarantee quality?
In order to ensure the processing accuracy of the machine and ensure the stability of the machine's operation, the accessories on the pipe making machine are independently processed and produced. We have a variety of processing equipment,such as Horizontal machining center,Vertical Machining Center,CNC lathe,Coordinate Boring Machine. Our products have been widely used in multiple well-known stainless steel enterprises, and won wide recognition and good reputation.

3.what can you buy from us?
As one of the leading enterprises in stainless steel tube mill industry, TENGDI MACHIENRY has been specializing in manufacturing Pipe Making Machine, Rollers(Toolings), Pipe Polishing Machine, Pipe Embossing Machine and Slitting Machine in last 20 years.

4. why should you buy from us not from other suppliers?
1.Have an excellent service team;

2.Customized service for client's requiement;

3.High quality, competive price.

5. what services can we provide?
Offer Services We can provide pre-sales consultant& On-purchase for everyday

Reply Time:

1.Within 1 hours(Not 24 hours)

2.Provide Tube Mill Machine relevant product information

3.Give you technical good suggestion

After Service--Provide service 24 hours*7 days per week

1.Test the tube mill machine before shipment

2.Provide installation service, according to customer needs;

3.Training service: teach customers how to use the machine 4 Assistance service:

①Improve pipe quality;

②Improve production capacity

;③Reduce production cost;

④Reduce warehouse storage
