Stainless Steel Welded Pipe Production Line

Brand:
Tengdi Machinery
Max Pipe Diameter:
9.5-508mm
Maximum Dhickness:
0.4-12.7mm
Lead Time:
Est. Time(days) 90
Customization:
Comprehensive scheme customization of equipment
Service:
1 year warranty
SKU:
Availability:

Are you looking for high-quality steel pipe making machine that will provide exceptional  performance?

Tengdi Machinery is an excellent steel pipe making machine manufacturer with whom to  explore collaborating.  Tengdi provide a large selection of various steel pipe making  machine choices that are intended to meet your unique requirements. We can be sure that you  will get the finest steel pipe making line option for your needs. Tengdi collaborate with  skilled specialists who contribute their years of experience and guarantee that all of our  works meet the highest standards.


Manufacture Tengdi Machinery Key Selling Points High-accuracy
Type HF Solid state steel pipe welding production line Warranty of core components 1 Year
Pipe material Carbon steel/Galvanized steel Place of Origin Shijiazhuang, China
Round pipe dia 9.5-508mm Line speed ≤90m/min
Round pipe thickness 0.4-12.7mm
Main power 132KW + 132KW
Square & rectangular pipe size 20*20-60*60mm Voltage 220/380/415/440V
Core Components uncoiler, shear and welder, accumulator, forming and sizing stands, cold saw cutter, rollway Weight 15000 kg


Other specifications and industry applications





Model Procession Wall thickness Steel strip material Power of main motor(kw) Welding speed High frequency power(kw)
(mm) (mm) (m/min)
Φ32 Φ12—Φ32 0.5-2.5 δb≤580Mpa

δb≤400Mpa

Carbon steel or low alloy steel
75 60-120 150
Φ50 Φ21—Φ50 0.6-3.5 90 60-120 200
Φ60 Φ21—Φ60 0.8-3.5 110 60-110 200
Φ76 Φ21—Φ76 1-3.75 160 50-95 300
Φ89 Φ32—Φ89 1-4.0 185 30-85 350
Φ114 Φ48—Φ114 1.5-5.0 200 30-80 400
Φ165 Φ89—Φ165 ≤12 345B J55 K55 X52 X60 X70 N80 560 ≤80 600
Φ219 Φ140—Φ219 ≤16 800 ≤70 600
Φ273 Φ165—Φ273 ≤16 800 ≤60 1000
Φ325 Φ165—Φ325 ≤16 960 ≤50 1000
Φ426 Φ219—Φ426 ≤16 960 ≤40 1000
Φ660 Φ325—Φ660 ≤22 1200 ≤30 1200

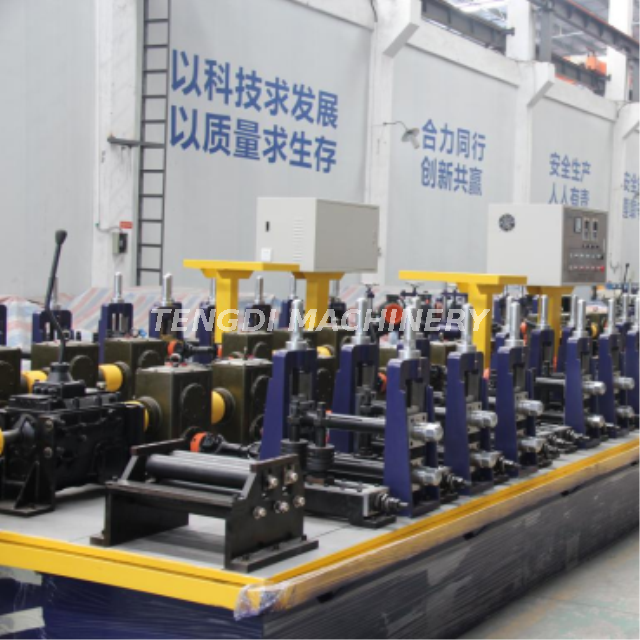

Stainless steel pipe machine
Flow chart and product unit

Stainless steel pipe machine


Packaging and delivery

Processing capacity

Exhibition photos

Certificate

QFA

Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.

Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!

Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.

Q: How do you do QA?

A: We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.

Q: Why choose you? What is the difference between you and other Chinese supplier?

A: You can get higher quality product & better professional service from TENGDI with same price.

Q: What I should do if just start a new business?

A: Contact us immediately, we provide free consultant pre-sales service

Q: How about your service?

A:Our services include:

(1)Warranty is one year, Any parts damaged during warranty will be replaced for free!

(2)We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives, we'll provide them for life time as well at cost price.

(3)We provide Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
