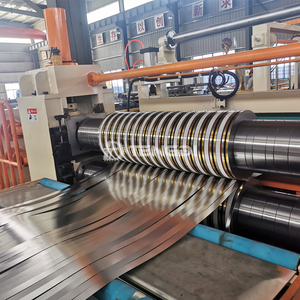

The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well
The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries.
According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine.
According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.
Cutting Width (mm): | 2200mm | Material Thickness(mm): | 1 -20mm |
Cutting Speed(m/min): | 1 - 100 mm | Voltage: | 380V |
Dimension(L*W*H): | 13*4m | Rated Power: | 50KW |
Weight: | 3T | Plate thickness: | 1-20mm |
Plate Width: | 2200mm | Slitting Speed: | 0-100 |
Installation: | 13*4m | Capacity: | 50KW |
Model | Sheet thickness (mm) | Coil Width(mm) | No.of Slitting | (mm/m) | Line Speed(m/min) | Coil Weight(Tons)Max |
1*650 | 0.2-1 | 150-650 | 30-8 | ±0.05 | 0-120 | 3、5 |
1*850 | 0.2-1 | 300-850 | 30-8 | ±0.05 | 0-120 | 5、10 |
1*1050 | 0.2-1 | 300-1050 | 30-8 | ±0.05 | 0-120 | 5、10 |
1*1300 | 0.2-1 | 400-1300 | 30-8 | ±0.05 | 0-120 | 10、15 |
2*650 | 0.3-2 | 150-650 | 30-8 | ±0.05 | 0-120 | 3、5 |
2*850 | 0.3-2 | 300-850 | 30-8 | ±0.05 | 0-120 | 5、10 |
2*1050 | 0.3-2 | 300-1050 | 30-8 | ±0.05 | 0-120 | 5、10 |
2*1300 | 0.3-2 | 400-1300 | 30-8 | ±0.05 | 0-120 | 10、15 |
2*1600 | 0.3-2 | 400-1600 | 30-8 | ±0.05 | 0-120 | 15、20 |
2*2000 | 0.3-2 | 500-2000 | 30-8 | ±0.05 | 0-120 | 15、20 |
3*1300 | 0.4-3 | 400-1300 | 30-6 | ±0.05 | 0-120 | 10、15 |
3*1600 | 0.4-3 | 400-1600 | 30-6 | ±0.05 | 0-120 | 15、20 |
3*2000 | 0.4-3 | 500-2000 | 30-6 | ±0.05 | 0-120 | 15、20 |
4*1300 | 0.5-4 | 400-1300 | 30-6 | ±0.05 | 0-120 | 10、15 |
4*1600 | 0.5-4 | 400-1600 | 30-6 | ±0.05 | 0-120 | 15、20 |
4*2000 | 0.5-4 | 500-2000 | 30-6 | ±0.05 | 0-120 | 15、20 |
6*1600 | 0.6-6 | 400-1600 | 30-5 | ±0.05 | 0-120 | 15、20 |
6*2000 | 0.6-6 | 500-2000 | 30-5 | ±0.05 | 0-120 | 15、20 |
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.
Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.
Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
