High Cost-Effectiveness, Customized, Steel Coil Slitting Line Machine, Coil Slitter

Brand:
Tengdi Machinery
Model Number:
0.3-3.0*850mm coil slitting machine(customizable)
Lead Time:
Est. Time(days)60
Customization:
Comprehensive scheme customization of equipment
Service:
1 Year warranty
SKU:
Availability:
  • 0.3-3.0*850

  • Tengdi

  • 00008

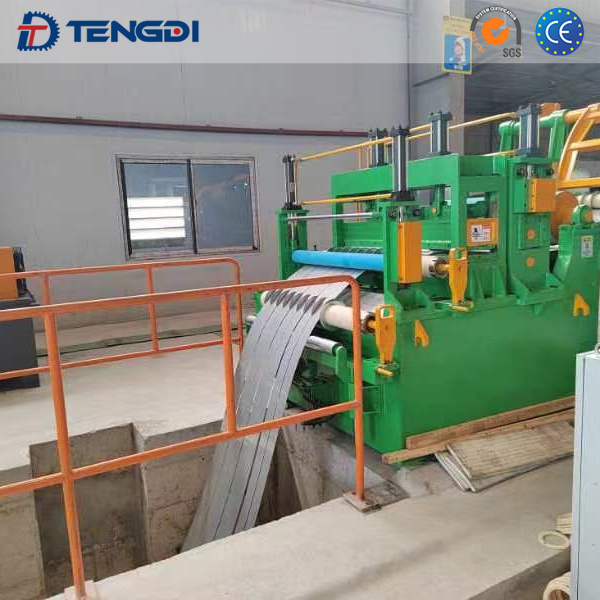

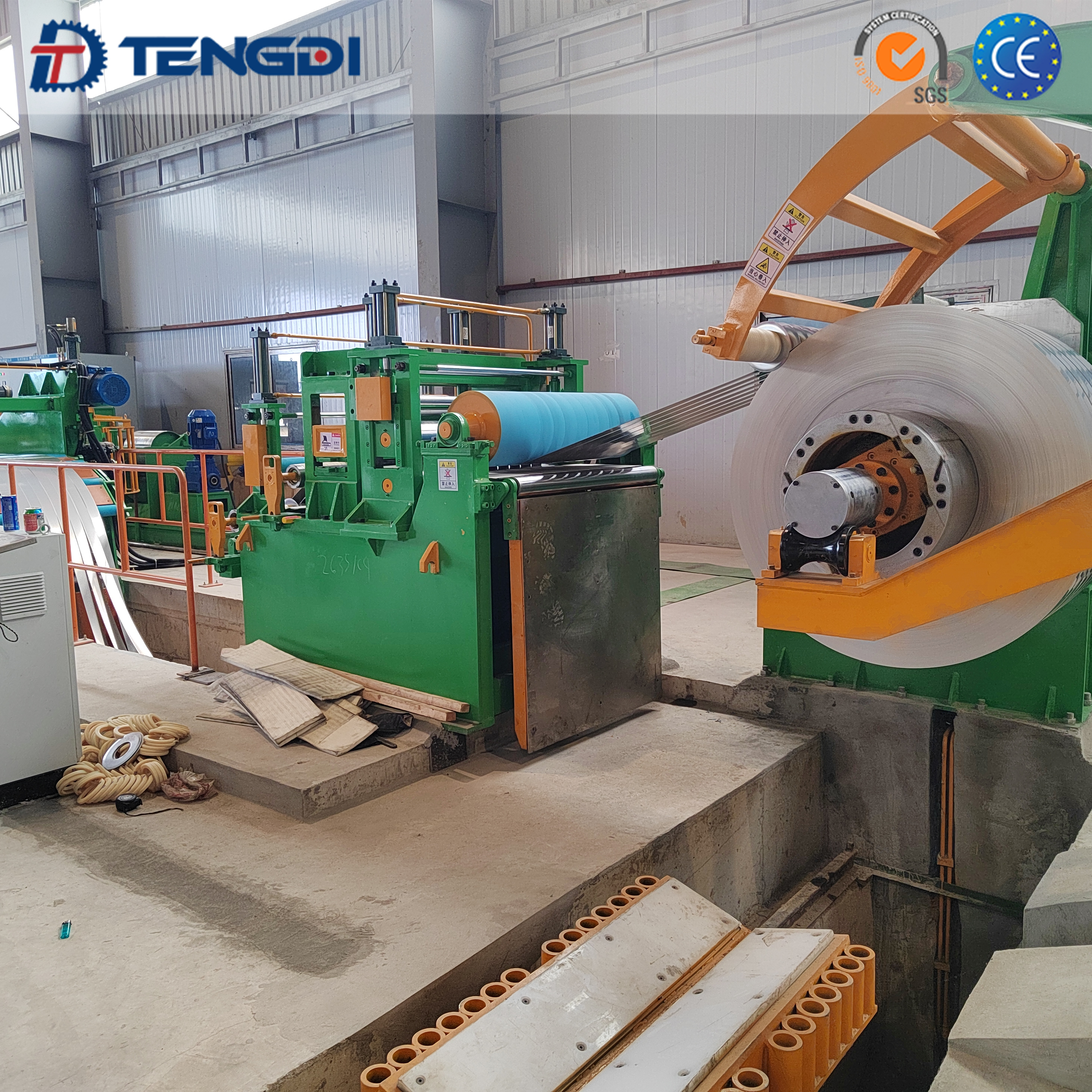

The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well

The smaller metal strips are recoiled at the end of the slitting machine by which  these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming  industry, ceiling drywall industry  and other high-precison equipment making and metal strips making industries.

 According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine.

According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.


Quick Details
Cutting Width (mm): 850mm Material Thickness(mm): 0.3 -3.0mm
Cutting Speed(m/min): 50,100-180 Voltage: 380V
Dimension(L*W*H): 24*9m Rated Power: 300KW
Weight: 20T Plate thickness: 0.3-3.0mm
Plate Width: 850mm Slitting Speed: 50m/min,100-180m/min
Installation: 24*9m Capacity: 300KW

Other specifications and industry applications
 Model Sheet thickness (mm)  Coil Width(mm)  No.of Slitting (mm/m)  Line Speed(m/min) Coil Weight(Tons)Max
1*650       0.2-1   150-650      30-8   ±0.05      0-120     3、5
1*850       0.2-1   300-850      30-8   ±0.05      0-120     5、10
1*1050       0.2-1   300-1050      30-8   ±0.05      0-120     5、10
1*1300       0.2-1   400-1300      30-8   ±0.05      0-120     10、15
2*650       0.3-2   150-650      30-8   ±0.05      0-120     3、5
2*850       0.3-2   300-850      30-8   ±0.05      0-120     5、10
2*1050       0.3-2   300-1050      30-8   ±0.05      0-120     5、10
2*1300       0.3-2   400-1300      30-8   ±0.05      0-120     10、15
2*1600       0.3-2   400-1600      30-8   ±0.05      0-120     15、20
2*2000       0.3-2   500-2000      30-8   ±0.05      0-120     15、20
3*1300       0.4-3   400-1300      30-6   ±0.05      0-120     10、15
3*1600       0.4-3   400-1600      30-6   ±0.05      0-120     15、20
3*2000       0.4-3   500-2000      30-6   ±0.05      0-120     15、20
4*1300       0.5-4   400-1300      30-6   ±0.05      0-120     10、15
4*1600       0.5-4   400-1600      30-6   ±0.05      0-120     15、20
4*2000       0.5-4   500-2000      30-6   ±0.05      0-120     15、20
6*1600       0.6-6   400-1600      30-5   ±0.05      0-120     15、20
6*2000       0.6-6   500-2000      30-5   ±0.05      0-120     15、20

stainless steel coil slitting machine


Packaging & Shipping

Packaging-and-Shipping tengdi

Exhibition photos
Exhibition photos tengdi
Certificate

Certificate tengdi

FAQ

Q: Are you manufacturer?

A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.


Q: What payment terms do you accept?

A: We are flexible on payment terms, please contact us for details!


Q: What info you need before you make the proposal?

A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.


Q: How do you do QA?

A: We have special team do strict QA, this is our strengths:

(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for the centering jumpiness.

(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.
